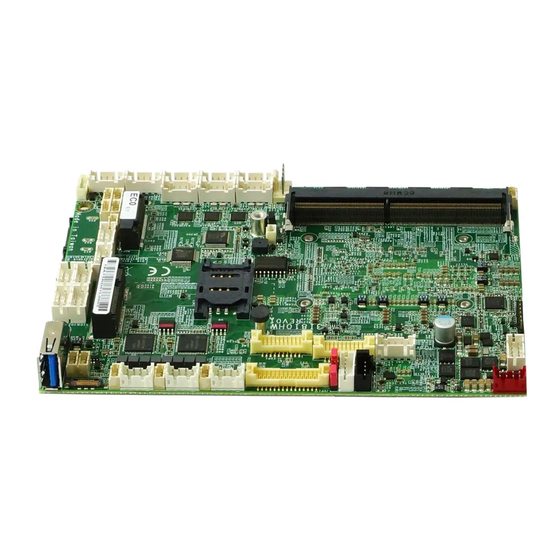

Intel® Whiskey Lake-U Core™ I / Celeron processor,
DDR4 LAN / HDMI / USB / Mini-PCIe / M.2
8th gen. Intel Whiskey Lake-U Core™ I / Celeron CPU
VGA, HDMI, LVDS, PCIe mini card, 1 x M.2, USB
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
NO. 3I810HW/BW
Release date: May. 04. 2020
3I810HW / 3I810BW
All wafer IO SBC
Multi-LAN, COM, Audio, SATA 1 x SIM
Wide Range +9~36V DC IN
Battery Charger Functin (3I810BW)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3I810HW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lex System 3I810HW

Summary of Contents for Lex System 3I810HW

  • Page 1 3I810HW / 3I810BW Intel® Whiskey Lake-U Core™ I / Celeron processor, DDR4 LAN / HDMI / USB / Mini-PCIe / M.2 All wafer IO SBC 8th gen. Intel Whiskey Lake-U Core™ I / Celeron CPU VGA, HDMI, LVDS, PCIe mini card, 1 x M.2, USB...

  • Page 2: Table Of Contents

    1-4 INSTALLING THE MINI PCI-E CARD ................1-5 DIRECTIONS FOR INSTALLING THE M.2B KEY MINI CARD ........CHAPTER 2 HARDWARE INSTALLATION ..............2-1 DIMENSION-3I810HW ....................2-2 LAYOUT-3I810HW-CONNECTOR AND JUMPER TOP ..........2-2-1 LAYOUT-3I810HW-CONNECTOR AND JUMPER BOT ..........2-2-2 DIAGRAM-3I810HW TOP ..................2-2-3 DIAGRAM-3I810HW BOT ..................
  • Page 3 3-12 DISPLAY INTERFACE ....................3-13 CPP1: PANEL INVERTER POWER CONNECTOR 1x5PIN (2.0mm) WAFER ... 3-14 CT1: USB TOUCH SCREEN DEVICE 2x5PIN (2.0mm) WAFER ....... 3-15 CPI1: DC POWER INPUT (2x4PIN 2.0mm WAFER) (RED) ........3-16 CBAT1: BATTERY CHARGE IN 2x5PIN (2.0 mm) WAFER ........3-17 BATTERY LED ......................
  • Page 4 4-7-2-2 SATA AND RST CONFIGURATION ..............4-8 SECURITY ........................4-9 BOOT ........................... 4-10 SAVE & EXIT ......................4-11 HOW TO UPDATE AMI BIOS ..................APPENDIX B: RESOLUTION LIST ..................
  • Page 5 Copyright This manual is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer.

  • Page 6: Warning

    Warning ! Battery Batteries on board are consumables. The life time of them are not guaranteed. 2. Fanless solution with HDD The specifi cation & limitation of HDD should be considered carefully when the fanless solution is implemented. We will not give further notifi cation in case of changes of product information and manual.

  • Page 7: Hardware Notice Guide

    Hardware Notice Guide 1. Before linking power supply with the motherboard, please attach DC-in adapter to the motherboard fi rst. Then plug the adapter power to AC outlet. Always shut down the computer normally before you move the system unit or remove the power supply from the motherboard.
  • Page 8 Photo 1 Insert Unplug...

  • Page 9: Chapter 1 General Information

    Automation Control, Transportation, ATM machines, medical / hospital station and warehouse solution. The 3I810HW / BW integrated 3 x GbE LAN, 7 x USB, 6 x COM Port and 1 x HDMI, VGA, eDP or LVDS display interface and supports high-speed data transfer interfaces such as PCIe gen3, USB 3.0, and SATA 6 Gb/s (SATA III), and supports 6 serial ports RS232 /...

  • Page 10: Major Feature

    1-1 Major Feature 1. Intel® Celeron 4305UE Processor 2.0GHz, (Dual core), Intel® Core i5-8365UE Processor 1.6GHz / 4.1GHz (Quad core), Intel® Core i7-8665UE Processor 1.7GHz / 4.4GHz (Quad core) 2. Intel 9th generation (Gen 9) LP graphics and media encode/decode engine, Intel® Celeron 4305UE 300MHz / 1GHz, Intel®...

  • Page 11: Specification

    1-2 Specifi cation SOC: Intel® Celeron 4305UE Processor 2.0GHz, (Dual core), Intel® Core i5-8365UE Processor 1.6GHz / 4.1GHz (Quad core), Intel® Core i7-8665UE Processor 1.7GHz / 4.4GHz (Quad core) Memory: On board memory & DDR4 SODIMM slot x 1 Graphics: Intel 9th generation (Gen 9) LP graphics and media encode / decode engine, Intel®...

  • Page 12: Installing The So-Dimm

    1-3 Installing the SO-DIMM 1. Align the SO-DIMM with the connector at a 45 degree angle. 2. Press the SO-DIMM into the connector until you hear a click.
  • Page 13 Notices: 1.The connectors are designed to ensure the correct insertion. If you feel resistance, check the connectors & golden fi nger direction, and realign the card. 2. Make sure the retaining clips (on two sides of the slot) lock onto the notches of the card fi...

  • Page 14: Removing The So-Dimm

    1-3-1 Removing the SO-DIMM 1. Release the SO-DIMM by pulling outward the two retaining clips and the SO-DIMM pops up slightly. 2. Lift the SO-DIMM out of its connector carefully.

  • Page 15: Installing The Mini Pci-E Card

    1-4 Installing the Mini PCI-e Card (Full Size) 1. Unscrew the screw on the board 2. Plug in the Mini Card in a 45 angle 3. Gently push down the Mini Card and screw the screw back.

  • Page 16: Directions For Installing The M.2B Key Mini Card

    1-5 Directions for installing the M.2B Key Mini Card 1. Unscrew the screw on the board 2. Plug in the Mini Card in a 45 angle 3. Gently push down the Mini Card and screw the screw back.

  • Page 17: Chapter 2 Hardware Installation

    Chapter-2 2-1 Dimension-3I810HW...

  • Page 18: Layout-3I810Hw-Connector And Jumper Top

    2-2 Layout-3I810HW-Connector and Jumper CIO4 CIO3 CIO1 CIO2 CLPC1 CALR1 CKM1 CU231 CFP1 CU232 MPCE1 CU23 NGFF1 CL31 CL21 CL11 EDP1(O EDP1(OEM) CPU FAN1 JSB1 CBT1 JVL1 JVP1 CPP1 CPO1 JSB2 CPI1 CBAT1 JSE1 JSE4 JSE2 JSE3...

  • Page 19: Layout-3I810Hw-Connector And Jumper Bot

    2-2-1 Layout-3I810HW-Connector and Jumper SATA2 SATA1...

  • Page 20: Diagram-3I810Hw Top

    2-2-2 Diagram- 3I810HW CIO4 CIO3 CIO1 CIO2 CLPC1 CALR1 CKM1 CU231 CFP1 CU232 MPCE1 CU23 NGFF1 CL31 CL21 CL11 EDP1(O EDP1(OEM) CPU FAN1 JSB1 CBT1 JVL1 JVP1 CPP1 CPO1 JSB2 CPI1 CBAT1 JSE1 JSE4 JSE2 JSE3...

  • Page 21: Diagram-3I810Hw Bot

    2-2-3 Diagram- 3I810HW SATA2 SATA1...

  • Page 22: Layout-3I810Hw-Function Map Top

    2-3 LAYOUT-3I810HW-FUNCTION MAP mini card Low Pin count wafer (PCIe/mSATA/USB3.0/2.0) Amplifi er Audio 4DI/4DO USB2.0 PS2 KB/MS USB3.0 type-A Front Panel USB2.0 M.2 B Key USB3.0 SSL Wafer (PCIex2/mSATA/ LAN3 LED USB3.0/2.0) Touch LAN3 COM4 LAN2 LED COM3 LAN2 COM6...

  • Page 23: Layout-3I810Hw-Function Map Bot

    2-3-1 LAYOUT-3I810HW-FUNCTION MAP SATA2 SATA1...

  • Page 24: Function Map-3I810Hw

    2-3-2 Function MAP- 3I810HW Mini card (PCIe,mSATA,USB3.0/2.0) Low pin count wafer Audio 4DIO x 4 Amplifier USB3.0 type-A PS2 KB/MS Front Panel USB2.0 USB2.0 USB3.0 SSL Wafer M.2 B Key LAN3 LED (PCIex2,mSATA,USB3.0/2.0) Touch LAN3 COM4 LAN2 LED COM3 LAN2...

  • Page 25: List Of Jumpers

    2-4 List of Jumpers JSB1: CMOS DATA Clear JSB2: HW system always on JVL1: LCD panel power select JVP1: LVDS panel Inverter power select 2-5 Jumper Setting Description A jumper is ON as a closed circuit with a plastic cap covering two pins. A jumper is OFF as an open circuit without the plastic cap.

  • Page 26: Jsb1: Cmos Data Clear

    2-6 JSB1: CMOS DATA Clear A battery must be used to retain the motherboard confi guration in CMOS RAM. Close Pin1 and pin 2 of JSB1 to store the CMOS data. To clear the CMOS, follow the procedures below: 1. Turn off the system and unplug the AC power. 2.

  • Page 27: Jsb2: Hw System Always On

    2-7 JSB2: HW system always on JSB2 DESCRIPTION *1-2 Normal Set HW system always on JSB2 *Normal HW system 2-8 JVL1: LCD panel power select JVL1 DESCRIPTION *2-3 +3.3V Note: Attention! Check Device Power in spec JVL1 1 2 3 1 2 3 *+3.3V...

  • Page 28: Jvp1: Lvds Panel Inverter Power Select

    2-9 JVP1: LVDS panel Inverter power select JVP1 DESCRIPTION +12V *2-3 Note: Attention! Check Device Power in spec JVP1 1 2 3 1 2 3 +12V *+5V...

  • Page 29: Chapter 3 Connection

    Chapter-3 Connection This chapter provides all necessary information of the peripheral's connections, switches and indicators. Always power off the board before you install the peripherals. 3-1 List of Connectors CPI1: DC 12V-IN 2x4pin (2.0mm) Red wafer CBAT1: Battery charge In 2x5pin (2.0mm) wafer JSE1: Battery Output LED 1x2pin (2.0mm) Pin Header JSE2:...

  • Page 30: Cmos Battery Connector

    CLPC1: Low Pin Count 2x5pin (2.0mm) wafer CPO1: +12V / +5V power output 4pin (2.0mm) Black wafer SATA1: SATA connector 7pin SODIMM1: DDR4 Channel 0 SODIMM H: 9.2mm MPCE1: Full size mini card sockets 52pin H: 9.9mm NGFF1: M.2 NGFF B key sockets 75pin H: 8.5mm SIM1: SIM card socket 3-2 CMOS battery connector...

  • Page 31: Ca1: Line-Out/Line-In/Mic-In 2X5Pin (2.0Mm) Wafer

    3-3 CA1: Line-out / Line-in / Mic-in 2x5pin (2.0mm) Wafer PIN NO. DESCRIPTION PIN NO. DESCRIPTION Line-out-R MIC-IN Line-in-R Line-in-L Line-out-L MIC-IN pin1 3-4 CALR1: Amplifi er Line-out Right / Left channel 1x4pin (1.25mm) Wafer PIN NO. DESCRIPTION Left+ Left- Right- Right+ CALR1...

  • Page 32: Ckm1: Ps2 Kb/Ms 1X6Pin (1.25Mm) Wafer

    3-5 CKM1: PS2 KB/MS 1x6pin (1.25mm) Wafer PIN NO. DESCRIPTION Keyboard Data Keyboard Clock Mouse DATA Mouse Clock CKM1 pin1...

  • Page 33: Cc1/Cc2/Cc3/Cc4/Cc5/Cc6: Com1/2 2X5Pin (2.0Mm) Wafer

    3-6 CC1 / CC2 / CC3 / CC4 / CC5 / CC6: COM 2x5pin (2.0mm) Wafer (RS232 Mode) PIN NO. DESCRIPTION PIN NO. DESCRIPTION RI / VCC (RS485 Mode) PIN NO. DESCRIPTION PIN NO. DESCRIPTION Data- Data+ (RS422 Mode) PIN NO. DESCRIPTION PIN NO.

  • Page 34: Cfp1 Front Panel Connector 2X5Pin (2.0Mm) Wafer

    3-7 CFP1 Front Panel connector 2x5pin (2.0mm) wafer PIN NO. DESCRIPTION PIN NO. DESCRIPTION Power button pin Power button GND Reset pin Reset GND Power LED- Power LED+ HDD LED- HDD LED+ LAN LED- LAN LED+ CFP1 pin1...

  • Page 35: Dio Interface

    3-8 DIO Interface CIO1: 4DI / 4DO 2x5pin (2.0mm) Wafer PIN NO. Description PIN NO. Description DI-0 DO-3 DI-1 DO-2 DI-2 DO-1 DI-3 DO-0 CIO2: 4DI / 4DO 2x5pin (2.0mm) Wafer PIN NO. Description PIN NO. Description DI-4 DO-7 DI-5 DO-6 DI-6 DO-5...
  • Page 36 CIO3 CIO4 pin1 pin1 CIO1 CIO2 WDT For F75113 I C watch dog timer device: DC spec: Input low Voltage (VIL): +0.8 Max, Input High Voltage(VIH) : +2V Min Output low Current (IOL): 10mA (Min) VOL=0.4V Output High Current (IOH): -10mA (Min) VOH=2.4V Watch Dog Time value 0~255 sec The system will be issued reset.

  • Page 37: Io Device:f75113 Lpc Under Windows (64Bit)

    3-8-1 IO Device:F75113 LPC under Windows (64bit) The Sample code source you can download from Source fi le: F75113v2.5.1W_src.zip Binary fi le: F75113v2.5.1W_bin_x64.zip http://tprd.info/lexwiki/index.php/IO_Device:F75113_LPC_under_Windows%2864bit%29A We do the demo test with a test tool which DIx connect to DOx with Relay.
  • Page 38 How to use this Demo Application 1. Press the "Test" button to test CIO1 function 2. Press the "C2test" button to test CIO2 function 3. Press the "C3test" button to test CIO3 function 4. Press the "C4test" button to test CIO4 function If the next picture appears MB no LPC or the drive placement is wrong Drive the location for the next picture...
  • Page 39 F75113 GPIO Picture Introduction F75113 driver connection hinstLib = LoadLibrary(L"Fintek.dll"); if (hinstLib == NULL) if(Application->MessageBoxW(L"Load fail Fintek.dll,Continued?",L"Error",16+4)==IDNO) Application->Terminate(); return; GPIO Status Register Write SETINT2PROC ProcAdd; char *endptr; char Numbers[] = "0x20"; char Value[] = "0xF0"; ProcAdd = (SETINT2PROC) GetProcAddress(hinstLib, "GPIO_LPC_W"); if (NULL != ProcAdd) if (! (*ProcAdd)( strtol(Numbers, &endptr, 16), strtol(Value, &endptr, 16))) ShowMessage("Write Fail");...
  • Page 40 GPIO Status Register Read GETINT2PROC ProcAdd1; int datatest; char NRtest[] = "0x22"; ProcAdd1 = (GETINT2PROC) GetProcAddress(hinstLib, "GPIO_LPC_R"); if (NULL != ProcAdd1) if (! (*ProcAdd1)( strtol(NRtest, &endptr, 16), &datatest)) ShowMessage("Read Fail"); GPIO Comparison if( data == 0xF0 ) ((CStatic *)GetDlgItem(IDC_LED_DO0))->SetBitmap(::LoadBitmap(AfxGetInstanceHandle(),MAKEINTRESOURCE (IDB_BITMAP_Green))); ((CStatic *)GetDlgItem(IDC_LED_DO1))->SetBitmap(::LoadBitmap(AfxGetInstanceHandle(),MAKEINTRESOURCE (IDB_BITMAP_Green)));...
  • Page 41 F75113 driver delete char N9[] = "0x10"; char V9[] = "0x00"; ProcAdd = (SETINT2PROC) GetProcAddress(hinstLib, "GPIO_LPC_W"); if (NULL != ProcAdd) if (! (*ProcAdd)( strtol(N9, &endptr, 16), strtol(V9, &endptr, 16))) ShowMessage("Write Fail"); if (hinstLib != NULL) FreeLibrary(hinstLib);...

  • Page 42: Io Device: F75113 Lpc Under Linux (64Bit)

    3-8-2 IO Device: F75113 LPC under Linux (64bit) The Sample code source you can download from Source fi le: F75113V2.5.1L_src.tar.gz Binary fi le: F75113v2.5.1L_bin.tar.gz http://tprd.info/lexwiki/index.php/IO_Device:F75113_LPC_under_Linux%2864bit%29 How to use this Demo Application 1. Press the "Start" button to test CIO1 function 2.
  • Page 43 F75113 GPIO Picture Introduction GPIO Status Register Write init_fi ntek_sio(eSIO_TYPE_F75113, 0 ,&sio_data) ActiveSIO(sio_data.ic_port, sio_data.key); CHECK_RET(_EnableGPIO(0x06 , eGPIO_Mode_Enable)); CHECK_RET(_SetGpioOutputEnableIdx( 0x06 , eGPIO_Direction_Out)); CHECK_RET(_SetGpioDriveEnable( 0x06 , eGPIO_Drive_Mode_OpenDrain)); CHECK_RET(_SetGpioOutputDataIdx( 0x06 , 1)); DeactiveSIO(sio_data.ic_port); GPIO Status Register Read init_fi ntek_sio(eSIO_TYPE_F75113, 0 ,&sio_data) ActiveSIO(sio_data.ic_port, sio_data.key); CHECK_RET(_EnableGPIO(0x06 , eGPIO_Mode_Enable));...
  • Page 44 GPIO Comparison CHECK_RET(_GetGpioInputDataIdx (0x10,&BDIO_data)); if((BDIO_data == 1) & (BDIO_startvalue_data == 0) ) gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(checkbutton2), TRUE); CHECK_RET(_GetGpioInputDataIdx (0x11,&BDI1_data)); if((BDI1_data == 1) & (BDI1_startvalue_data == 0) ) gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(checkbutton4), TRUE); CHECK_RET(_GetGpioInputDataIdx (0x12,&BDI2_data)); if((BDI2_data == 1) & (BDI2_startvalue_data == 0) ) gtk_toggle_button_set_active(GTK_TOGGLE_BUTTON(checkbutton6), TRUE); CHECK_RET(_GetGpioInputDataIdx (0x13,&BDI3_data)); if((BDI3_data == 1) &...

  • Page 45: Usb Interface

    3-9 USB Interface CU23: USB 3.0 Port 1x10pin (0.5mm) SSL-Wafer PIN NO. DESCRIPTION USB31_P3_TX_DP USB31_P3_TX_DN USB31_P3_RX_DP USB31_P3_RX_DN USB31_P4_TX_DP USB31_P4_TX_DN USB31_P4_RX_DP USB31_P4_RX_DN Note: 1. Can use CU002 connector Board to USB 3.0 Type A connector. CU231 / CU232 / CU4 / CU5 / CU6 / CU7: USB 2.0 port 1x4pin (1.25mm) Wafer PIN NO.

  • Page 46: Lan Interface

    3-10 LAN Interface CL1 / CL2 / CL3: LAN 2x4pin (2.0mm) Wafer PIN NO. DESCRIPTION PIN NO. DESCRIPTION MDI0- MDI0+ MDI2+ MDI1+ MDI1- MDI2- MDI3- MDI3+ Note: Can use CL001 connector Board to RJ45 CL11 / CL21 / CL31: LAN LED 1x4pin (1.25mm) Wafer PIN NO.

  • Page 47: Co1: I C 1X4Pin (1.25Mm) Wafer

    3-11 CO1: I C 1x4pin (1.25mm) Wafer PIN NO. DESCRIPTION +3.3V C Clock C DATA pin1 3-12 Display Interface CG1: VGA 2x5pin (2.0mm) Wafer PIN NO. DESCRIPTION PIN NO. DESCRIPTION BULE DDC CLOCK GREEN V-SYNC H-SYNC DDC DATA pin1...
  • Page 48 HDMI1: HDMI 2x10pin (1.25mm) Wafer PIN NO. DESCRIPTION PIN NO. DESCRIPTION TMDS_D2_N TMDS_D2_P TMDS_D1_N TMDS_D1_P TMDS_D0_N TMDS_D0_P TMDS_CLK_N TMDS_CLK_P CLOCK DATA Hot Plug Detect Note: 1. Can use CN040 connector Board to HDMI Type A LVDS1: LVDS 2x15pin (1.25mm) Wafer PIN NO.
  • Page 49 EDP1: eDP 2x10pin (1.25mm) Wafer (Option) PIN NO. DESCRIPTION PIN NO. DESCRIPTION Lane-0-DATA- +12V or +5V Lane-0-DATA+ +12V or +5V Lane-1-DATA- Lane-1-DATA+ Backlight Enable PWM dimming for eDP I2C Clock +LCD(5V or 3.3V) I2C Data +LCD(5V or 3.3V) eDP Aux+ +LCD(5V or 3.3V) eDP Aux- EDP_HPD...

  • Page 50: Cpp1: Panel Inverter Power Connector 1X5Pin (2.0Mm) Wafer

    3-13 CPP1: Panel inverter power connector 1x5pin (2.0mm) Wafer PIN NO. DESCRIPTION +12V PWM dimming ENBKL (3.3V) ENBKL (5V) Note: 1. CPP1 PIN 3 and LVDS1 PIN1 is same signal. CPP1 pin1...

  • Page 51: Ct1: Usb Touch Screen Device 2X5Pin (2.0Mm) Wafer

    3-14 CT1: USB Touch screen device 2x5pin (2.0mm) Wafer For 8-wire type pin defi ne PIN NO. DESCRIPTION PIN NO. DESCRIPTION Bottom Bottom Sense Top Sense Right Right Sense Left Left Sense Note: For eight wire type cable Pin 3 and Pin 4 need short. For 4-wire type pin defi...

  • Page 52: Cpi1: Dc Power Input (2X4Pin 2.0Mm Wafer) (Red)

    3-15 CPI1: DC Power input (2x4pin 2.0mm Wafer) (Red) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DC-IN DC-IN DC-IN DC-IN Note: 1. Very important check DC-in Voltage type for 12V, 24V or 9~36V model spec. 2. If use 3cell battery, the input Voltage must be at least +15V. 3.

  • Page 53: Battery Led

    3-17 Battery LED JSE1: Battery Discharge LED 1x2pin (2.0mm) Pin Header PIN NO. DESCRIPTION PIN NO. DESCRIPTION LED+ LED- JSE2: Battery Output LED 1x2pin (2.0mm) Pin Header PIN NO. DESCRIPTION PIN NO. DESCRIPTION LED+ LED- JSE3: Battery charge LED 1x2pin (2.0mm) Pin Header PIN NO.

  • Page 54: Cpo1: Dc +5V/+12V Output 1X4Pin (2.0Mm) Black Wafer

    3-18 CPO1: DC +5 / +12V output 1x4pin (2.0mm) Black Wafer PIN NO. DESCRIPTION +12V Note: Attention! Check Device Power in spec CPO1 pin1 3-19 FAN1: CPU Fan 1x4pin (2.54mm) Wafer PIN NO. DESCRIPTION +12V CPUFAN-IN CPUFAN-OUT Note: DC in +12V by switch to FAN power +12V, so DC in need stable +12V input CPU FAN1 pin1...

  • Page 55: Sata1/Sata2: Sata Port Connectors 7Pin

    3-20 SATA1 / SATA2: SATA port connectors 7pin PIN NO. DESCRIPTION Note: 1. CPO1 provides SATA HDD power +12V, GND, +5V 2. SATA2 for Option (signal share with MPCE1). SATA2 SATA1...

  • Page 56: Clpc1: Low Pin Count 2X5Pin (2.0Mm) Wafer

    3-21 CLPC1: Low Pin Count 2x5pin (2.0mm) Wafer PIN NO. DESCRIPTION PIN NO. DESCRIPTION LPC_AD3 LPC_CLK LPC_AD2 LPC_FRAME LPC_AD1 PLT_RST LPC_AD0 LPC_SERIRQ +3.3V CLPC1 pin1...

  • Page 57: Mpce1 Pci Express Mini Card Sockets 52Pin

    3-22 MPCE1 PCI Express mini card sockets 52pin 2pin PIN NO. Description PIN NO. Description +3.3V +1.5V PCIe-CLK- PCIe-CLK+ Reset MPCE1 pin1 PCIe-RX- / mSATA-RX+ / USB3_RX- +3.3V PCIe-RX+ / mSATA-RX- / USB3_RX+ +1.5V SMB-CLK pin52 PCIe-TX- / mSATA-TX- / USB3_TX- SMB-DATA PCIe-TX+ / mSATA-TX+ / USB3_TX+ USB-DATA-...

  • Page 58: Ngff1 M.2 Ngff Card B Key Sockets 75Pin

    3-23 NGFF1 M.2 NGFF card B key sockets 75pin NGFF1: size 3042 (H=8.5) PIN NO. Description PIN NO. Description CFG3_USB3_PCIE_N +3.3V +3.3V FULL_CARD_PWR_N USB2_P9_DP W_DISABLE_1_N USB2_P9_DN M2_LED_N B KEY W_DISABLE_2_N M2_PERn1_U3Rn NGFF1 M2_PERp1_U3Rp SIM_RST_M2 SIM_CLK_M2 M2_PETn1_U3Tn SIM_DATA_M2 M2_PETp1_U3Tp SIM_PWR_M2 DEVSLP M2_PERn0_MSRp M2_PERp0_MSRn M2_PETn0_MSTn...

  • Page 59: Sim1: Sim Card Socket

    3-24 SIM1: SIM card socket PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA Note: 1. MPCE1 Pin 8, 10, 12, 14, 16 for SIM card reader use. 2. SIM1 default support MPCE1, if M.2 use need OEM option. SIM1...

  • Page 60: Connector Wafer Of Compatible Brand And Part Number List

    3-25 Connector wafer of Compatible Brand and part number list Location CKTS PITCH Brand Name Mating connector Cable housing 2x5 10Pin 2.0mm B10B-PHDSS PHDR-10VS CALR1 1x4 4Pin 1.25mm MOLEX 53047-0410 51021-0400 2x5 10Pin 2.0mm B10B-PHDSS PHDR-10VS CC1~CC6 2x5 10Pin 2.0mm B10B-PHDSS PHDR-10VS CFP1...

  • Page 61: Introduction Of Bios

    Chapter-4 Introduction of BIOS The BIOS is a program located in the Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gains control. The BIOS first operates an auto-diagnostic test called POST (Power on Self Test) for all the necessary hardware, it detects the entire hardware devices and configures the parameters of the hardware synchronization.

  • Page 62: Bios Menu Screen & Function Keys

    4-2 BIOS Menu Screen & Function Keys In the above BIOS Setup main menu of, you can see several options. We will explain these options step by step in the following pages of this chapter, but let us fi rst see a short description of the function keys you may use here: ●...

  • Page 63: General Help

    4-3 General Help Status Page Setup Menu / Option Page Setup Menu Press F1 to pop up a help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window, press <Esc>. 4-4 Menu Bars There are six menu bars on top of BIOS screen: Main To change system basic confi...

  • Page 64: Main

    4-5 Main Main menu screen includes some basic system information. Highlight the item and then use the <+> or <-> and numerical keyboard keys to select the value you want in each item. System Date Set the Date. Please use [Tab] to switch between data elements. System Time Set the Time.

  • Page 65: Advanced

    4-6 Advanced PCH-FW Confi guration Please refer section 4-6-1 Trusted Computing Please refer section 4-6-2 F81804 Super IO Confi guration Please refer section 4-6-3 F81804 Hardware Monitor Please refer section 4-6-4 F81206SEC Super IO Confi guration Please refer section 4-6-5 USB Confi...

  • Page 66: Pch-Fw Configuration

    4-6-1 PCH-FW Confi guration 4-6-2 Trusted Computing Security Device Support To enable BIOS support security device or not, default is Enabled.

  • Page 67: F81804 Super Io Configuration

    4-6-3 F81804 Super IO Confi guration Serial Port 1 Confi guration Please refer section 4-6-3-1 Serial Port 2 Confi guration Please refer section 4-6-3-2 Power Failure Please refer section 4-6-3-3...
  • Page 68 4-6-3-1 ► Serial Port 1 Confi guration To Enable Serial port or not, default is Enabled. Change Settings, default is Auto.
  • Page 69 To select the Serial port to RS232 / RS422 / RS485, default is RS232.
  • Page 70 4-6-3-2 ► Serial Port 2 Confi guration To Enable Serial port or not, default is Enabled. Change Settings, default is Auto.
  • Page 71 To select the Serial port to RS232 / RS422 / RS485, default is RS232.

  • Page 72: Power Failure

    4-6-3-3 ► Power Failure To select the power behavior after power fail, default is Keep last state.

  • Page 73: F81804 Hardware Monitor

    4-6-4 F81804 Hardware Monitor Press [Enter] to view PC health status. This section shows the status of your CPU, Fan, and overall system. This is only available when there is Hardware Monitor function onboard.

  • Page 74: F81802Sec Super Io Configuration

    4-6-5 F81802SEC Super IO Confi guration Serial Port 3 Confi guration Please refer section 4-6-5-1 Serial Port 4 Confi guration Please refer section 4-6-5-2 Serial Port 5 Confi guration Please refer section 4-6-5-3 Serial Port 6 Confi guration Please refer section 4-6-5-4...
  • Page 75 4-6-5-1 ► Serial Port 3 Confi guration To Enable Serial port or not, default is Enabled. Change Settings, default is Auto.
  • Page 76 To select the Serial port to RS232 / RS422 / RS485, default is RS232.
  • Page 77 4-6-5-2 ► Serial Port 4 Confi guration To Enable Serial port or not, default is Enabled. Change Settings, default is Auto.
  • Page 78 To select the Serial port to RS232 / RS422 / RS485, default is RS232...
  • Page 79 4-6-5-3 ► Serial Port 5 Confi guration To Enable Serial port or not, default is Enabled. Change Settings, default is Auto.
  • Page 80 To select the Serial port to RS232 / RS422 / RS485, default is RS232...

  • Page 81: Serial Port6 Configuration

    4-6-5-4 ► Serial Port 6 Confi guration To Enable Serial port or not, default is Enabled. Change Settings, default is Auto.
  • Page 82 To select the Serial port to RS232 / RS422 / RS485, default is RS232...

  • Page 83: Usb Configuration

    4-6-6 USB Confi guration XHCI Hand-off To enable XHCI hand-off support or not, default is Enabled. USB Mass Storage Driver Support To enable USB mass storage support or not, default is Enabled.

  • Page 84: Network Stack Configuration

    4-6-7 Network Stack Confi guration To enable the Network stack or not, default is Disabled.

  • Page 85: Nvme Configuration

    4-6-8 NVMe Confi guration To detect NVMe storage automatically.

  • Page 86: Chipset

    4-7 Chipset System Agent (SA) Confi guration. Please refer section 4-7-1 PCH-IO Confi guration. Please refer section 4-7-2...

  • Page 87: System Agent (Sa) Configuration

    4-7-1 System Agent (SA) Confi guration Graphics Confi guration. Please refer section 4-7-1-1...

  • Page 88: Graphics Configuration

    4-7-1-1 ► Graphics Confi guration GTT Size Graphics Translation Table Size. The optional settings are: 2MB, 4MB, 8MB (default) Aperture Size The optional settings are: 128MB, 256MB (default), 512MB, 1024MB, 2048MB DVMT Pre-Allocated Use this item to select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device.

  • Page 89: Pch-Io Configuration

    4-7-2 PCH-IO Confi guration PCI Express Confi guration. Please refer section 4-7-2-1 SATA And RST Confi guration. Please refer section 4-7-2-2...
  • Page 90 4-7-2-1 ► PCI Express Confi guration The optional settings are: Enabled (default), Disabled.
  • Page 91 To select PCI Express port speed. The optional settings are: Auto (default), Gen1, Gen2, Gen3 To select the MPCE1 support PCIe / SATA or USB3.0 device...

  • Page 92: Sata And Rst Configuration

    4-7-2-2 ► SATA And RST Confi guration SATA Controller Use this item to Enable or Disable SATA Device. SATA Mode Selection Support AHCI Mode only.

  • Page 93: Security

    4-8 Security Administrator Password User Password To set up an Administrator or an User password...

  • Page 94: Boot

    4-9 Boot Bootup NumLock State To select Power-on state for NumLock, default is <On> Quiet Boot The optional settings are: Enabled (default), Disabled. Wake-Up From USB 3.0 The optional settings are: Enabled, Disabled (default).

  • Page 95: Save & Exit

    4-10 Save & Exit Save Change and Reset Save confi guration and reset Discard Changes and Reset Reset without saving the changes Restore Defaults To restore the optimal default for all the setup options...

  • Page 96: How To Update Ami Bios

    STEP 2. Copy utility program and latest BIOS to your bootable disc. You may download it from our website. STEP 3. Here take 3I810HW as an example, insert your bootable disc into X: (X could be C:, A: or others.

  • Page 97: Appendix B: Resolution List

    Appendix B: Resolution list 640 x 480 x ( 256 / 16bit / 32bit ) 800 x 600 x ( 256 / 16bit / 32bit ) 1024 x 768 x ( 256 / 16bit / 32bit ) 1152 x 864 x ( 256 / 16bit / 32bit ) 1280 x 600 x ( 256 / 16bit / 32bit ) 1280 x 720 x ( 256 / 16bit / 32bit ) 1280 x 768 x ( 256 / 16bit / 32bit )
