Display Interface - Lex System 2I392CW Manual

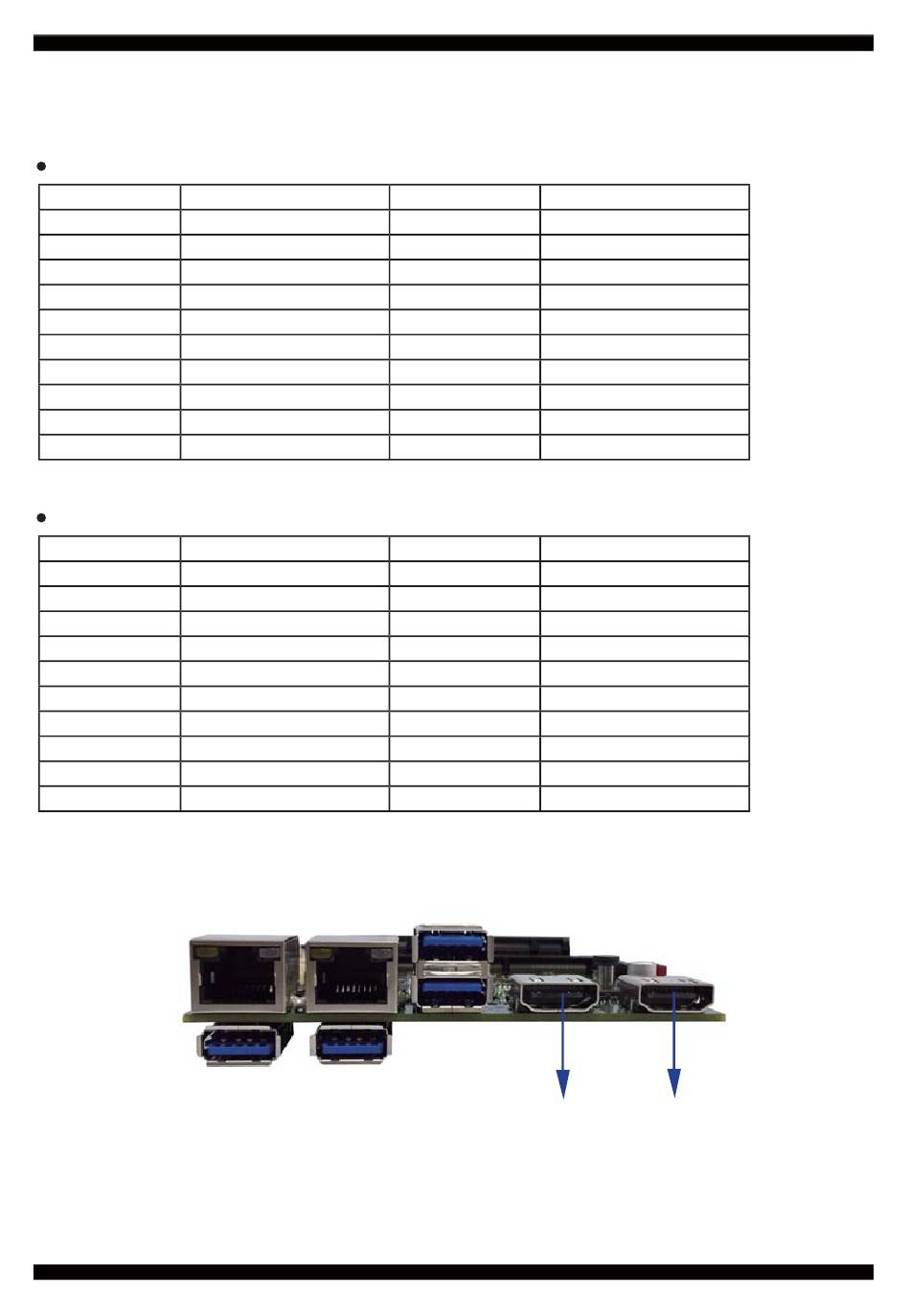

3-12 Display interface

HDMI1 / HDMI2: HDMI Connector (Type A)
PIN Description
1 TMDS DATA2+
3 TMDS DATA2-
5 GND
7 TMDS DATA0+
9 TMDS DATA0-
11 GND
13 NC
15 DDC CLK
17 GND
19 H.P. Detect
DP1 / DP2: DP Connector (Option)
PIN Description
1 LANE0_P
3 LANE0_N
5 GND
7 LANE2_P
9 LANE2_N
11 GND
13 GND
15 AUX_DP
17 AUX_DN
19 GND
PIN Description
2 GND
4 TMDS DATA1+
6 TMDS DATA1-
8 GND
10 TMDS CLK+
12 TMDS CLK-
14 NC
16 DDC DATA
18 +5V
PIN Description
2 GND
4 LANE1_P
6 LANE1_N
8 GND
10 LANE3_P
12 LANE3_N
14 GND
16 GND
18 H.P. Detect
20 +3.3V
HDMI2, HDMI HDMI1, HDMI
