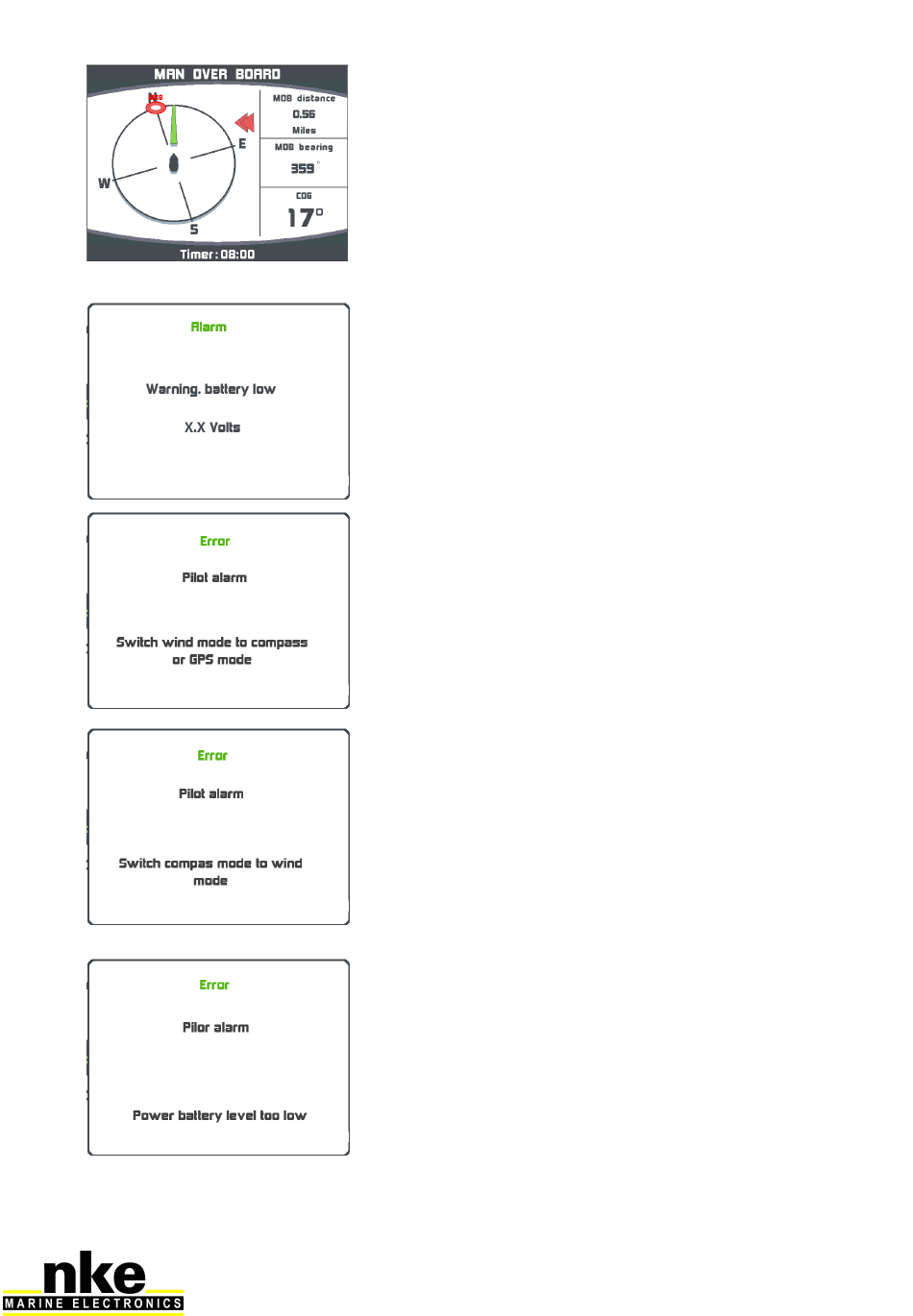

This page is shown when the Man Over Board
function has been triggered. The dead reckoned
distance and bearing to the man over board are
displayed together with the boat's course over
ground. The timer is triggered to give the time from
event.
This message displays when the power supply to the
Topline bus is below 9 Volts. Data is saved and the
system switches off. Check the battery level and
eventually charge it.
With the pilot in wind mode when an alarm has been
set and the apparent wind angle is over the defined
range. Press any key to inhibit the alarm for 7
minutes
.
When the pilot in compass mode and an alarm has
been set this will be displayed when the compass
heading is over the defined range. Press any key to
inhibit the alarm for 7 minutes.
The battery powering the pilot's drive unit has
reached a lower voltage than defined in the setup.
Press any key to inhibit the alarm for 7 minutes.
WARNING: THIS ALARM IS ALWAYS ACTIVATED.
Charge the battery.
