2.7.6.6 Simulator

There is a simulator available in the Multigraphic. Once activated, it sends random
data to the Topline bus and the symbol
working in simulation mode.

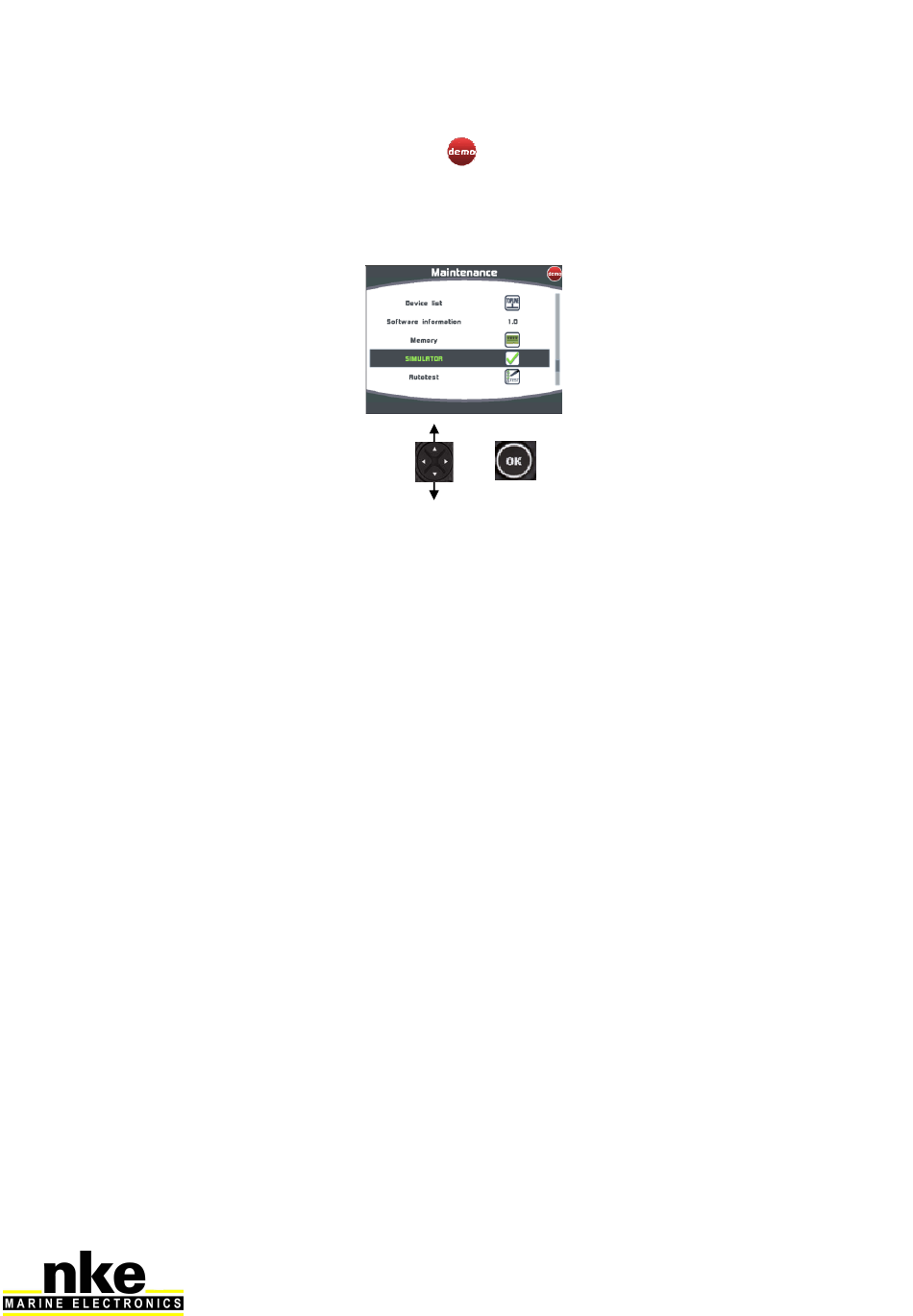

Simulator menu:

2.7.6.7 Autotest

Autotest is useful to check the Multigraphic. This procedure verifies the following
functions step by step:
• keys
• colour display
• light sensor (vlight), internal temperature sensor, power supply.
• backlighting
• memory
• Topline bus
• NMEA input and output (connect the yellow and red wires together for that
operation).
• Data logged in cookies
Proceed to each step by confirming with « OK ».
Once the auto-test is complete the Multigraphic restarts.
is shown to highlight that the system is
+
