i.e. the drift with 17° heel angle and 7 knots boat speed is:
2
10 x 17° / 7 + 0° = 3.46° drift angle
nds
As an alternative to this formula, an offset value can be set to force the drift angle by
setting the factor to 0 and entering the desired value of the drift angle as an offset.
A maximum value can be set for the drift angle, i.e. with a 5° limit; the final result will
never exceed 5° even though the data is still processed in the same way.

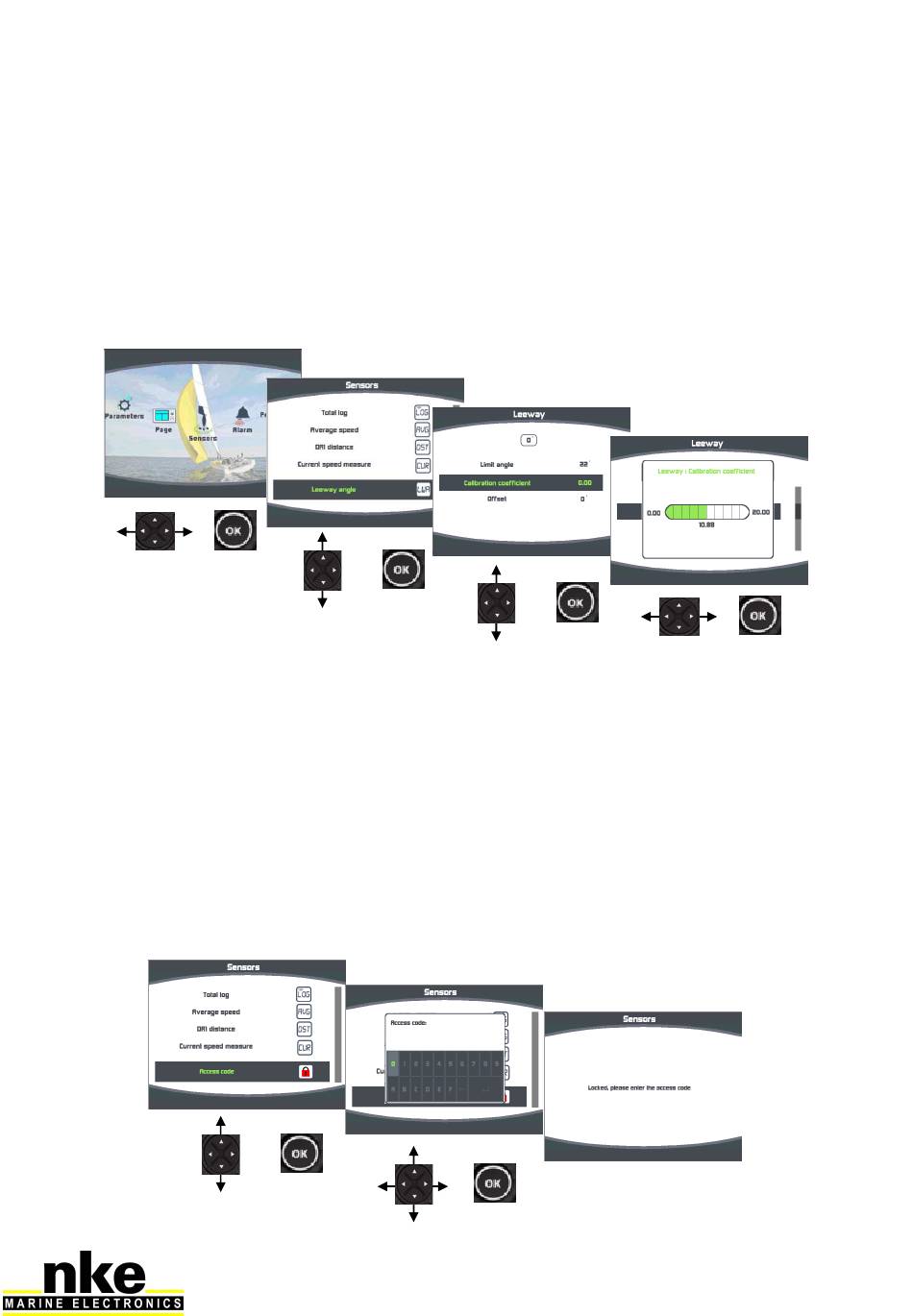

Drift angle data processing procedure
+
+
+
+
The procedure is the same for setting the maximum drift angle and the offset for drift
angle.

2.8.4 Sensors access code

The sensors access code is meant to protect all calibrations for the sensors
connected to the Topline bus. Once activated, the access to the calibration menu is
locked.
Procedure for sensor access code setting:
+
+
