5 EVENTS MESSAGES

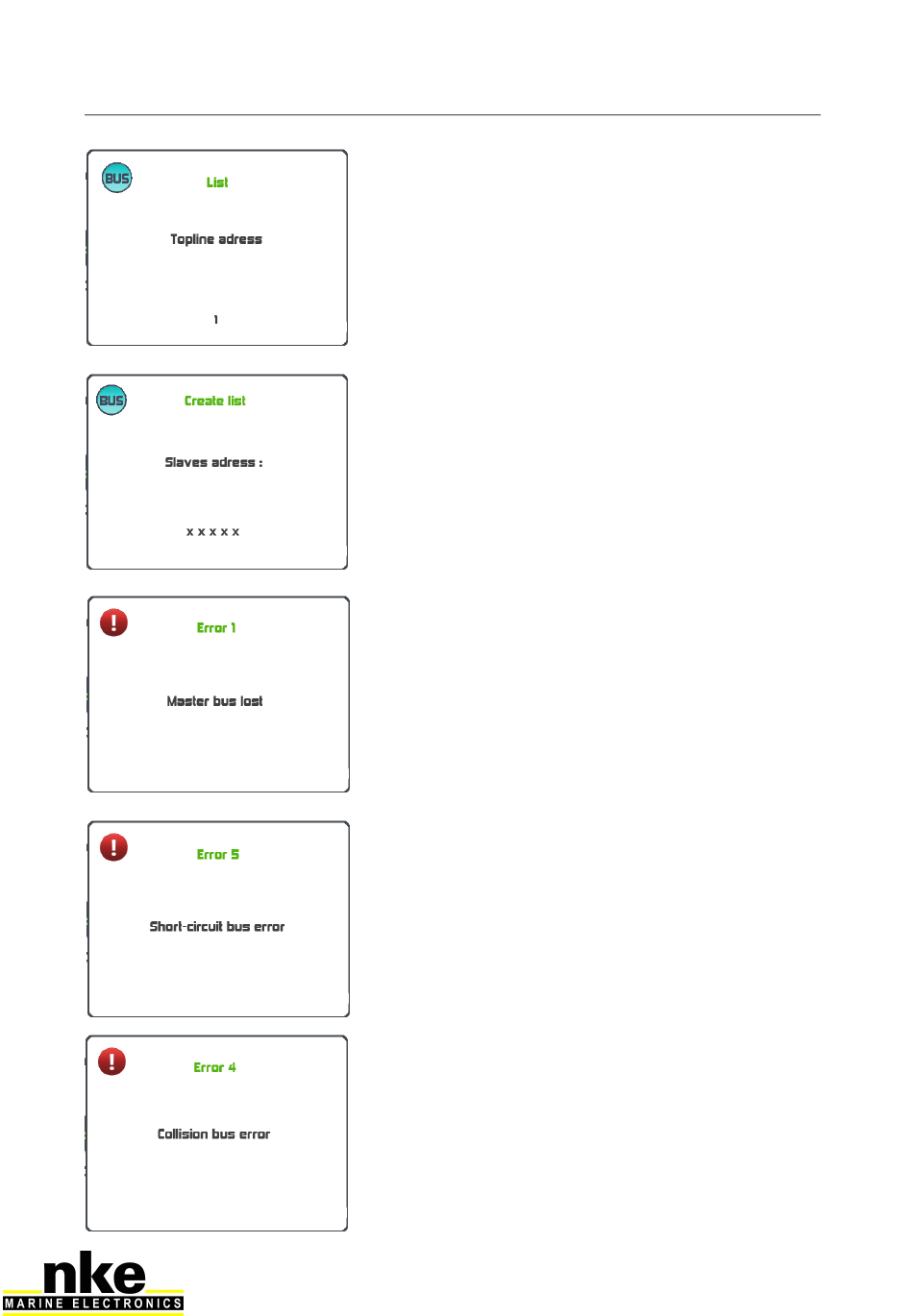

Message at system start up, indicating the
Multigraphic address.
Multigraphic being set as "Master", when the system
creates the list (search all sensors and displays in the
bus), it displays addresses for slave displays.
The "master" display is unplugged or out of order.
This can be solved by replacing the "master" display
by another one. (Refer to "Topline addresses"
section).
The black wire of the Topline bus cable, carrying the
data is in short-circuit with one of the 2 other wires.
This can happen in a junction box, the cable itself or
one of the units connected to the bus.
2 similar sensors are connected to the bus and
transmit the same data, or an NMEA input has been
set for the same data as a sensor present in the bus.
Check the connected sensors and reset the NMEA
inputs.
