NKE Multigraphic User Manual & Installation Sheet page 24

Mode
Pilot type
Course to steer
Note: when the pilot is disengaged «
The Auto button engages the pilot and the Stop button disengages the pilot.
Make sure the pilot is disengaged before turning the power supply off.
Operation with Apparent Wind mode
The compass mode requires a compass sensor, a boat speed sensor and a wind
sensor.
The apparent wind mode uses data from the mast head unit made available on the
Topline bus to steer the boat on a set Apparent Wind Angle. This mode is mainly
used while sailing upwind.

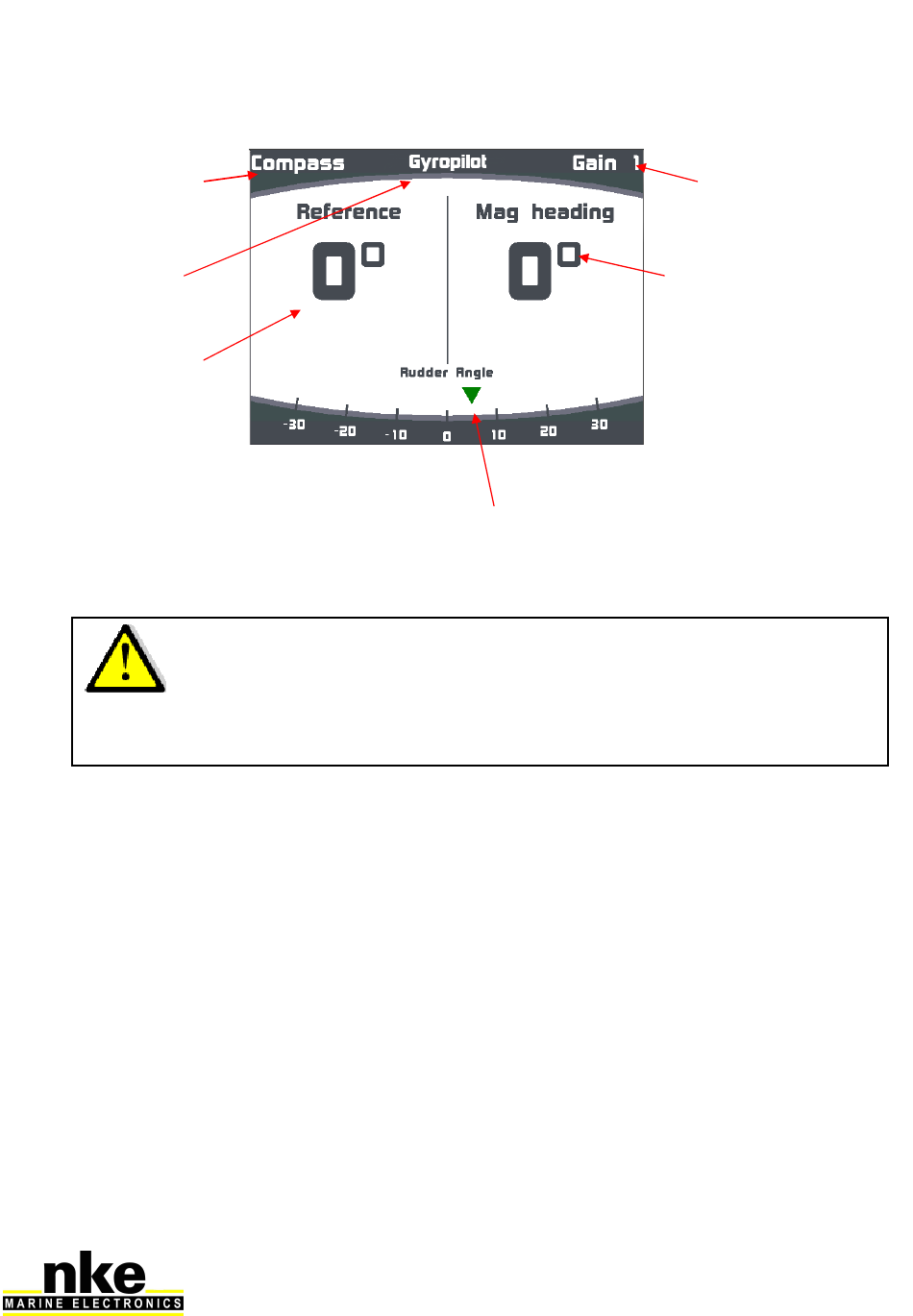

The following graphic shows the pilot page as it will be displayed on the
Multigraphic when the Gyropilot is engaged in Apparent Wind mode.
Warning:
24
Rudder angle
---
» is displayed instead of the course to steer.
50_Afficheur_Multigraphic_um_UK_27
Gain
Compass
