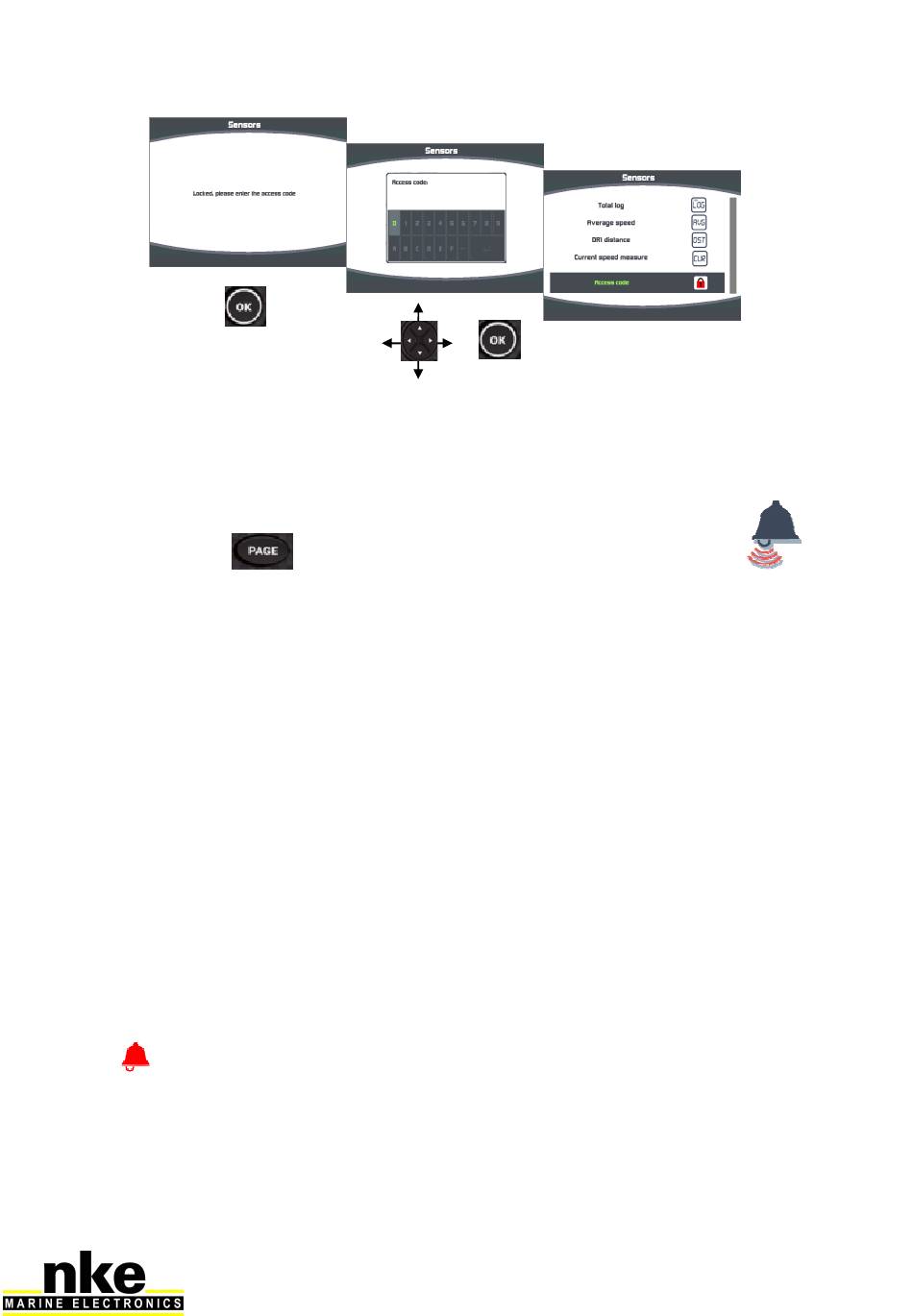

Procedure to unlock the sensor menu:
+

2.9 Alarms settings

Press and hold to display the main menu from which you select to
display the « Alarm » page.
Setting alarms allow keeping watch on the value of set channels. Once the set value
is reached a message is displayed and an audible signal is emitted.
For example, low and high values can be set for the Boat Speed channel.
High alarm will be activated when the data reaches the set value and above.
Low alarm will be activated when the data reaches the set value and below.
Note that for channels with angle data such as magnetic heading or wind angle the
alarms sub-channels are based on a value +/- x from a reference angle called "base
alarm".
Setting alarms is an efficient way to monitor the TOPLINE system and the way your
boat is sailing.

2.9.1 Alarm setting procedure

In order to use alarms you must first select the data you want to monitor and then
determine the low and high values or the base and ranges for angles. Once set up,
the icon indicates the validation of the relevant channel.
Here is an example of alarm setting for low value of the apparent wind speed:
