2.7.6 Maintenance

2.7.6.1 Multigraphic node address in the Topline system

In this menu you have to give a Topline address to the Multigraphic. With address
n°1 it will be considered as « Master » and manages the whole system. If there is
already a Master », the Multigraphic will get an address different from 1 and it will
behave as « Slave ». This process is carried out automatically: if there is no
« Master » in the system, the Multigraphic will automatically be selected as
« Master ». Systems with an existing « Master » will automatically deliver a « Slave »
address to the Multigraphic.
There is always the possibility to reset the address to 0 (no address).
Note: the Multigraphic comes with a factory default setting as n°0. It has no address
and it cannot work with your system. Giving an address to the Multigraphic is the
very first setting to do once the display is connected to the Topline bus and the
installation complete.

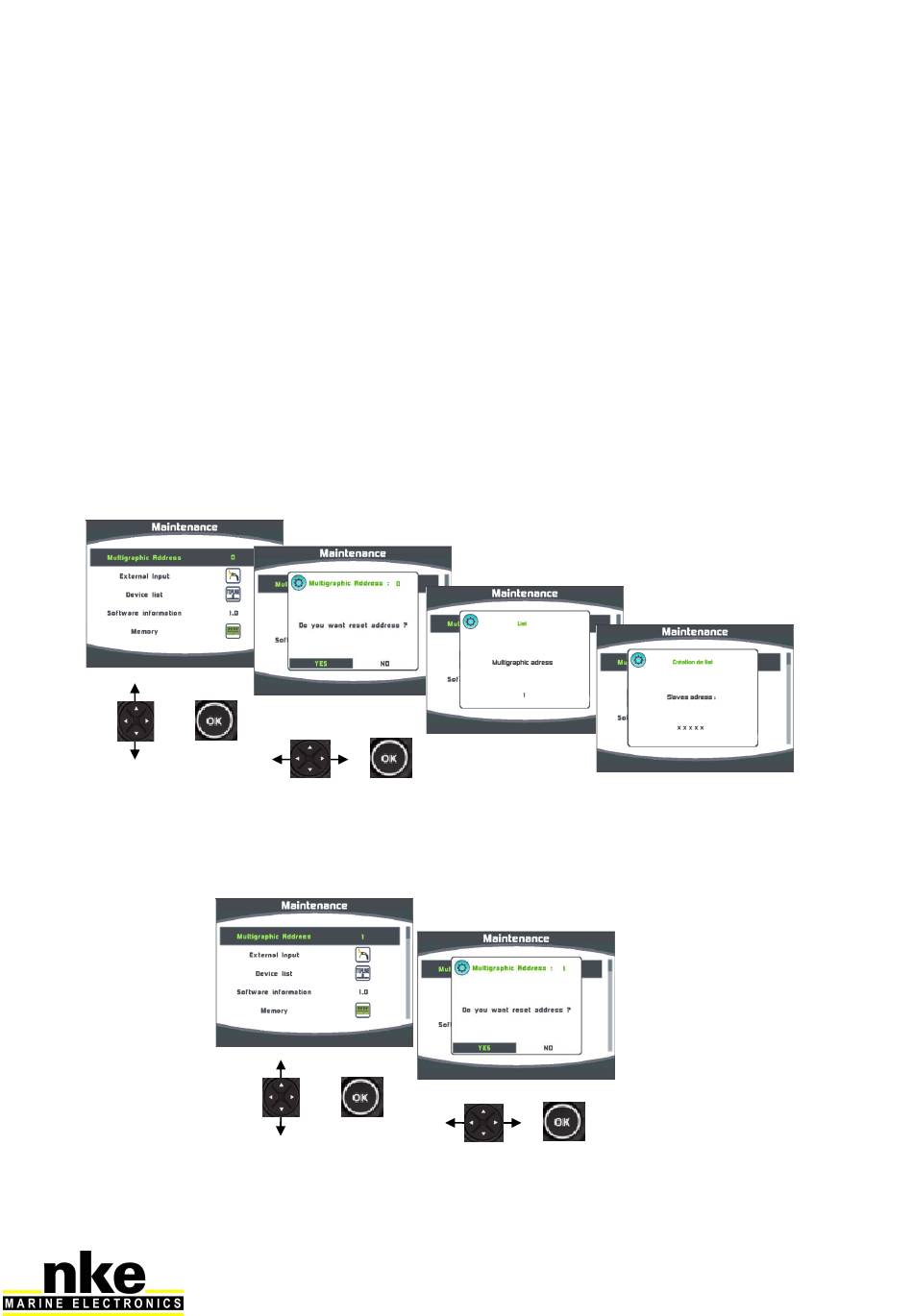

Multigraphic address process:
-
+
Resetting the address:
-
+
+
