NKE Multigraphic User Manual & Installation Sheet page 25

Mode
Pilot type
AWA to steer
Operation with True Wind mode (See §
This mode requires a speed sensor, a compass sensor, a wind sensor and the
software add-on « true wind ». Once this mode has been selected the pilot steers the
boat to a set true wind angle calculated by the Gyropilot processor.

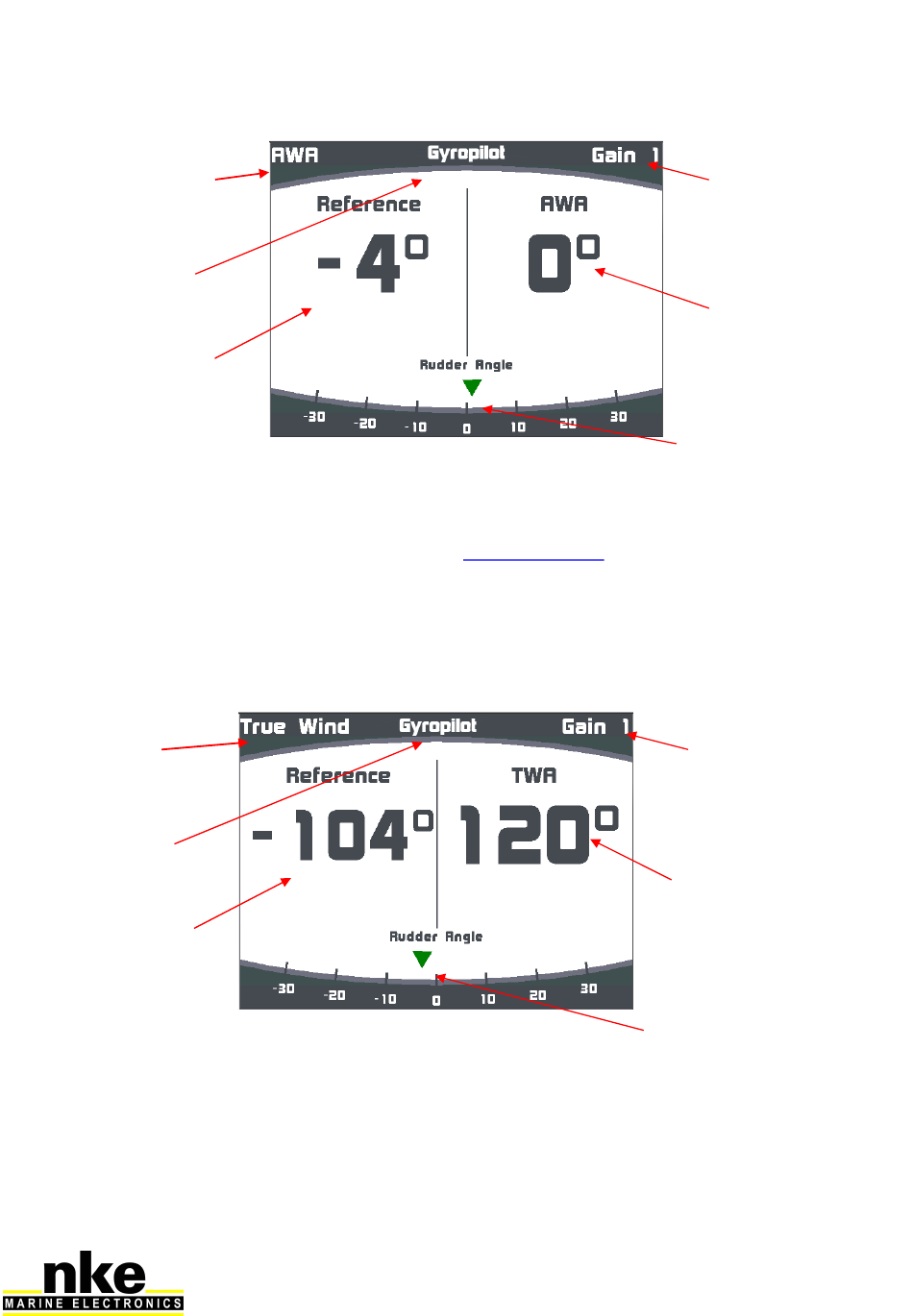

The following graphic shows the pilot page as it will be displayed on the
Multigraphic when the Gyropilot is engaged in True Wind mode
Mode
Pilot type
TWA to steer
"True wind
25 50_Afficheur_Multigraphic_um_UK_27
Gain
Apparent
Wind Angle
Rudder angle
mode")
Gain
True Wind Angle
Rudder angle
