2.7.2 Data logging: "stripcharts" settings

4 different sets of data can be logged simultaneously over a 48 hour period with a 15
seconds log rate. The logged data can be displayed on stripcharts on the
"Multigraphic".

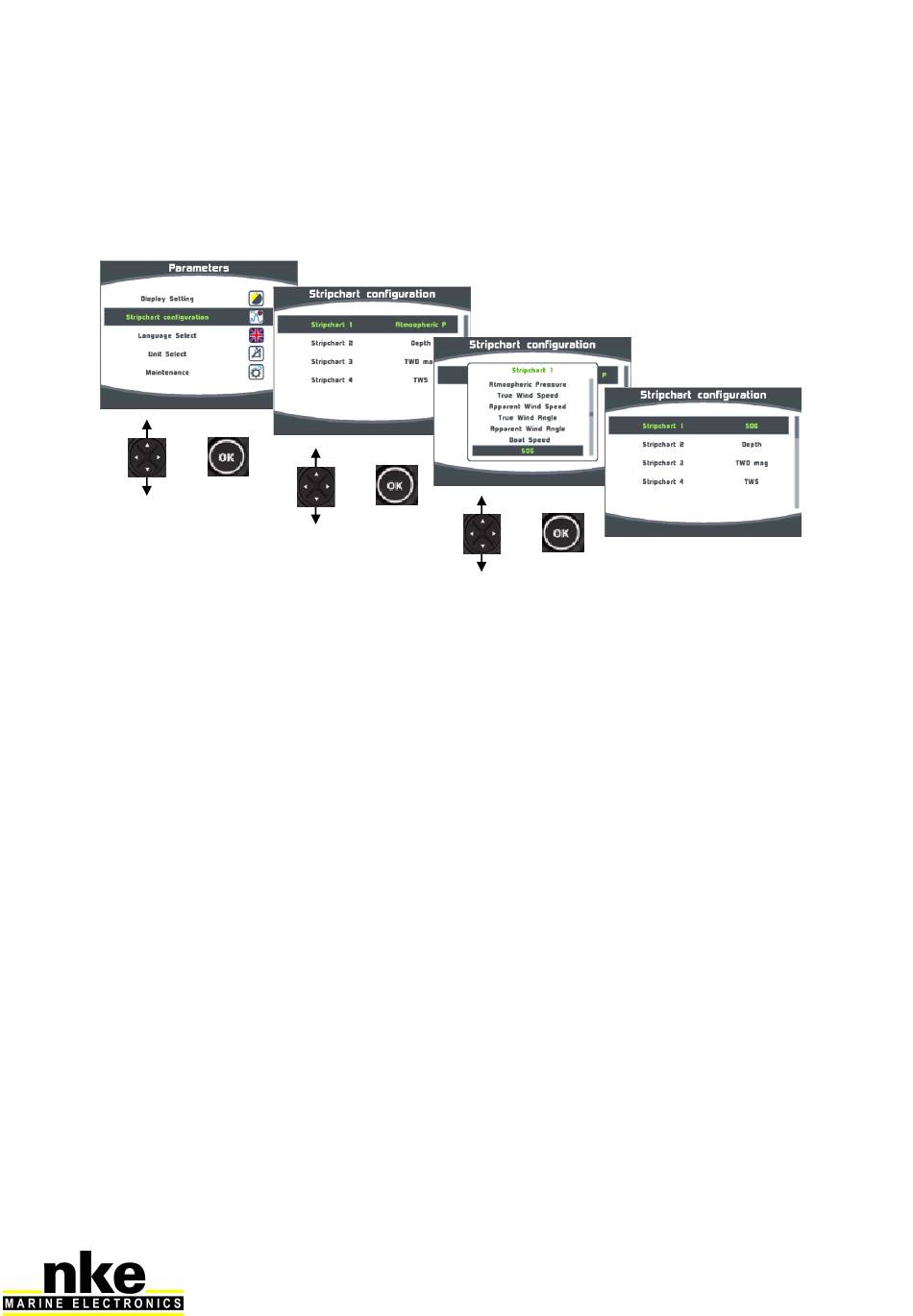

"stripcharts" settings process:
+
+
+

2.7.3 Configuration of the context keys of the pad (A,B,C,D and Sync)

The A, B, C, D and Sync keys allow in a context, to directly display preprogrammed
pages on all displays. There is also the standby function which allows you to turn off
one or more screens simultaneously.
Parameters >> Shortcuts configuration:
Select with cursor pad one of the keys to be programmed, press ok and choose the
desired page or the standby command from the list provided. By default, no context
key is programmed.
