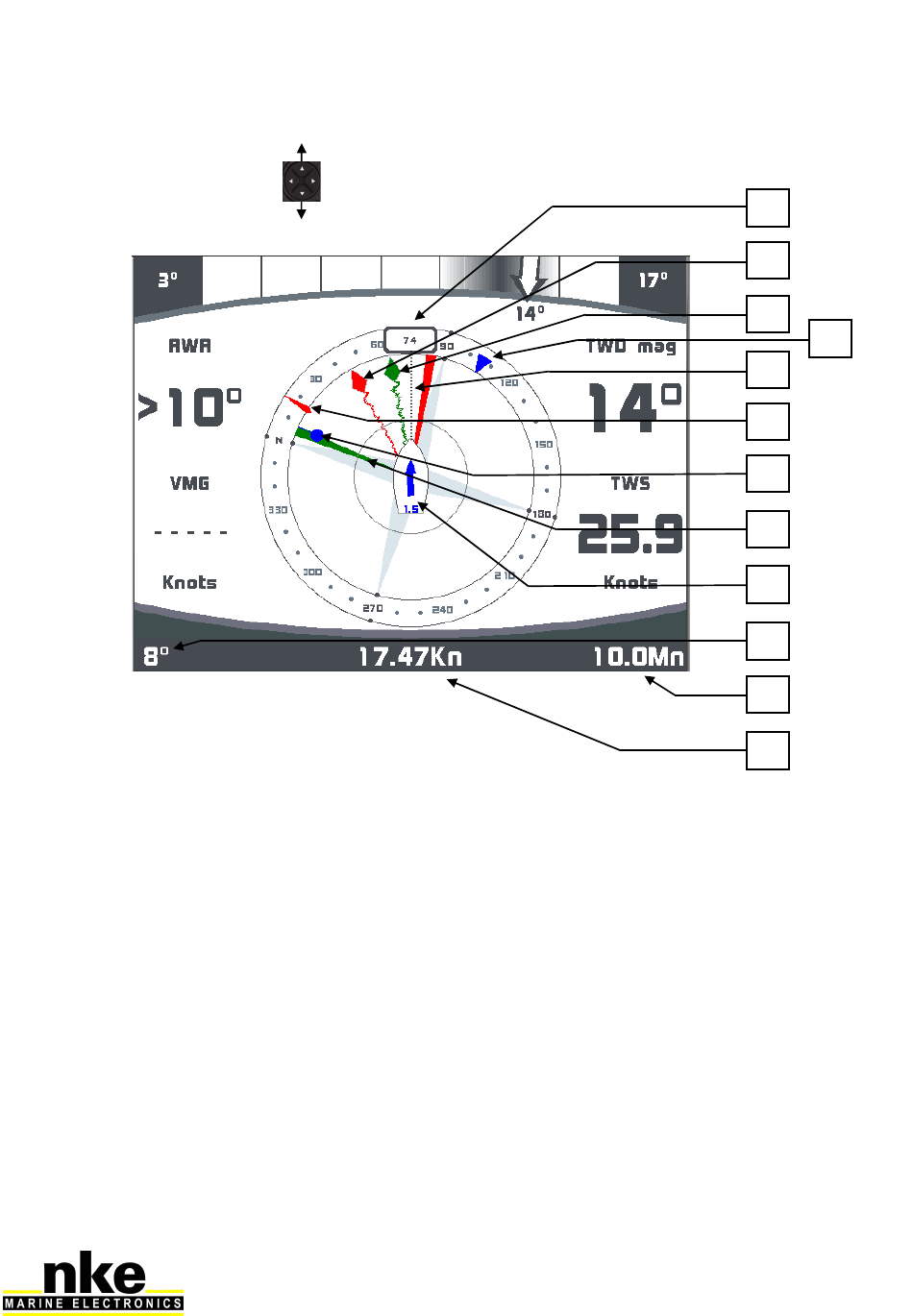

2.15.2 Description of the Tactical screen

The Tactical screen automatically displays once the racing timer countdown is over
or manually with the
A.
Magnetic Heading
B.
TWA, instant True Wind Angle
C.
AWA, instant Apparent Wind Angle
D.
Drift (angle between projected course and Layline)
E.
COG, Course Over Ground (Magnetic or True)
F.
Bearing to WayPoint
G.
Layline, Heading on next leg
H.
Current Direction and Speed (related to the boat)
I.
Bearing to Waypoint
J.
Distance to Waypoint
Distance and bearing to the n°1 mark can be displayed with the distance and
bearing to Waypoint channels of the Topline bus once the Multigraphic's
NMEA input has been set up. The Distance and Bearing to Waypoint channels
must be free (no other interface set up for the NMEA input).
K.
Boat Speed
key
