3.4 Bulkhead installation

Check that the surface is clean, flat and straight. There must be enough space on the
other side to run the cable.

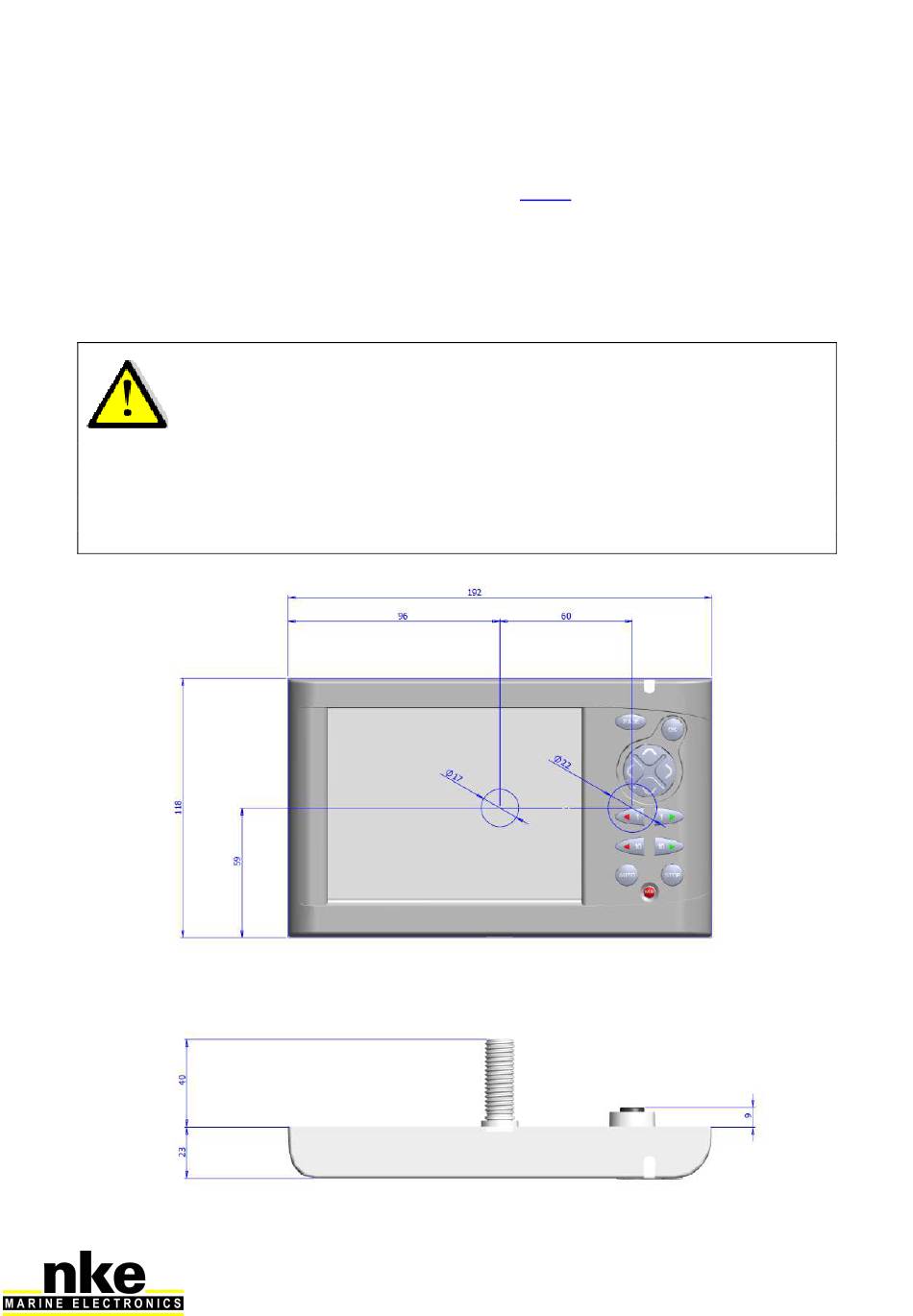

Drill at ∅15 and Ø22 according to the drawing below,
-
- Clean the surface with alcohol.
Use a silicone on the fixation perimeter
-
Pull the cable through the ∅22 mm hole,
-
Place the display and hand bolt.
-
Warning:
When you fix the display, gently tighten the bolt by hand. Over tightening may
-
damage the housing and cause a leak.
Do not use a sealant to fix the display.
-
