Switch and Ethernet WAN LED indicators
LED
Yellow
Yellow + Green
Green

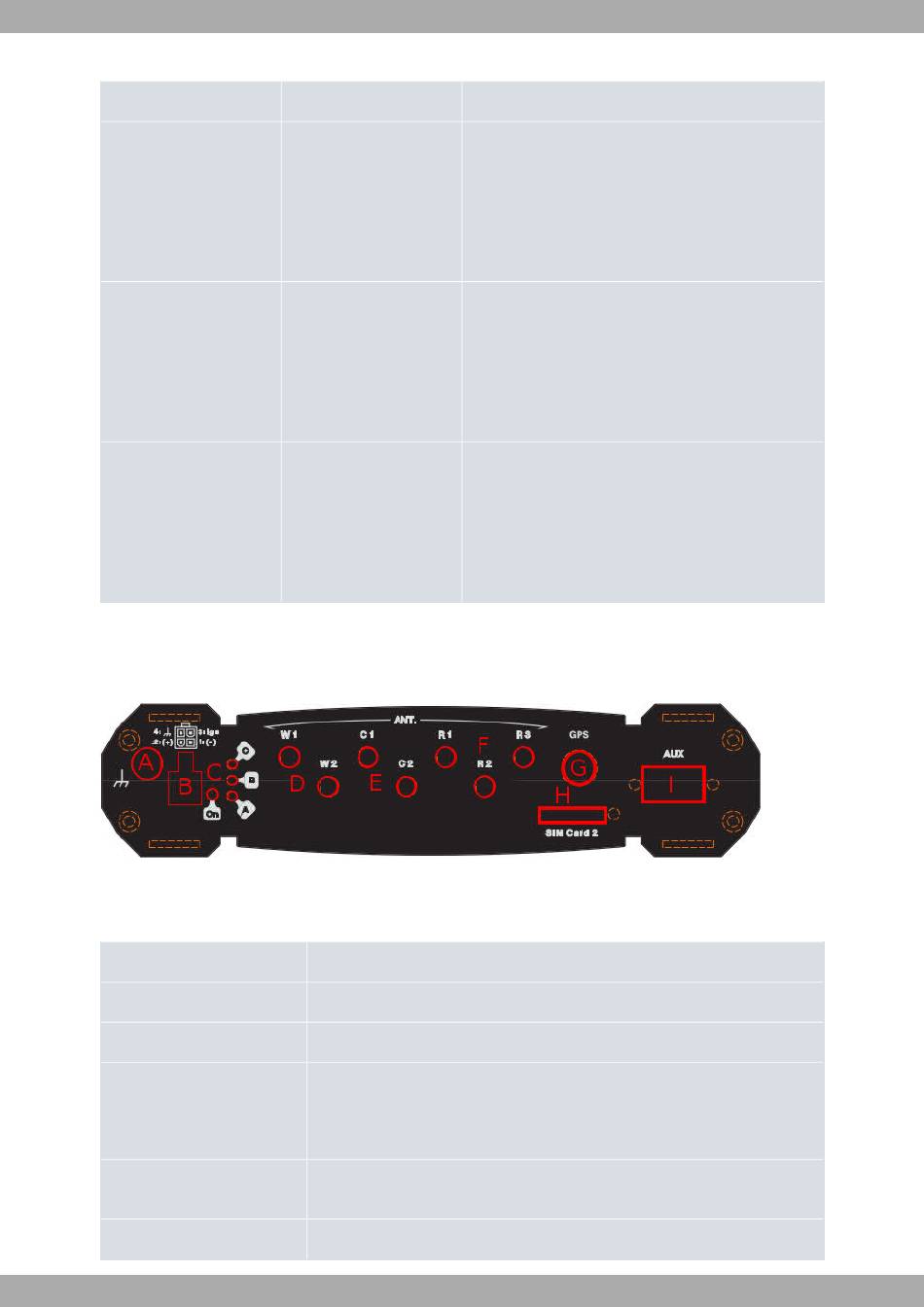

3.1.2 Rear panel

The following figure shows the rear panel.
Rear panel
Fig. 2:
The rear panel components are as follows:
Rear panel components
Item
A
B
C
D
E
Teldat H2 Automotive Router
Associated Interface
LAN 1..4 and Eth WAN
LAN 1..4 and Eth WAN
LAN 1..4 and Eth WAN
Description
Functional earthing. Usually not connected.
12-24 DC. Power source connection.
LEDs:
• On: Illuminated indicator showing whether the device is switched on or not.
• A, B and C: explained in rear panel LEDs table.
W1, W2. WiFi antennas for the Wireless LAN module. This module is optional
(your device may not have any antennas).
C1, C2. Antennas for the Teldat H2 Automotive cellular module. This module is
Description
OFF -> Interface is unavailable, not installed or not re-
gistered.
ON -> Connected to 10 M:
- Steady: Is not transferring data.
- Blinking: Transferring data.
OFF -> Interface is unavailable, not installed or not re-
gistered.
ON -> Connected to 100 M:
- Steady: Is not transferring data.
- Blinking: Transferring data.
OFF -> Interface is unavailable, not installed or not re-
gistered.
ON -> Connected to 1000 M:
- Steady: Is not transferring data.
- Blinking: Transferring data.
3 Components and Power Supply
