• Disconnect the positive battery cable from the vehicle's battery post.
• Find an empty fuse slot with 5 A - 10 A fuse ratings.
• Terminate the cable conductors with suitable crimp connectors, fuse tap or bare wires (depending on the fuse box
connectors).
• Connect the BATTERY conductor to the fuse connector.
• Connect the GND conductor to a battery ground connector.
• Alternatively, the IGNITION conductor can be connected to the vehicle's ignition switch (if available).
• We recommended installing an approved vehicle circuit breaker.
• Insert the new fuse into the fuse slot.
• Connect the positive battery cable to the vehicle's battery post.

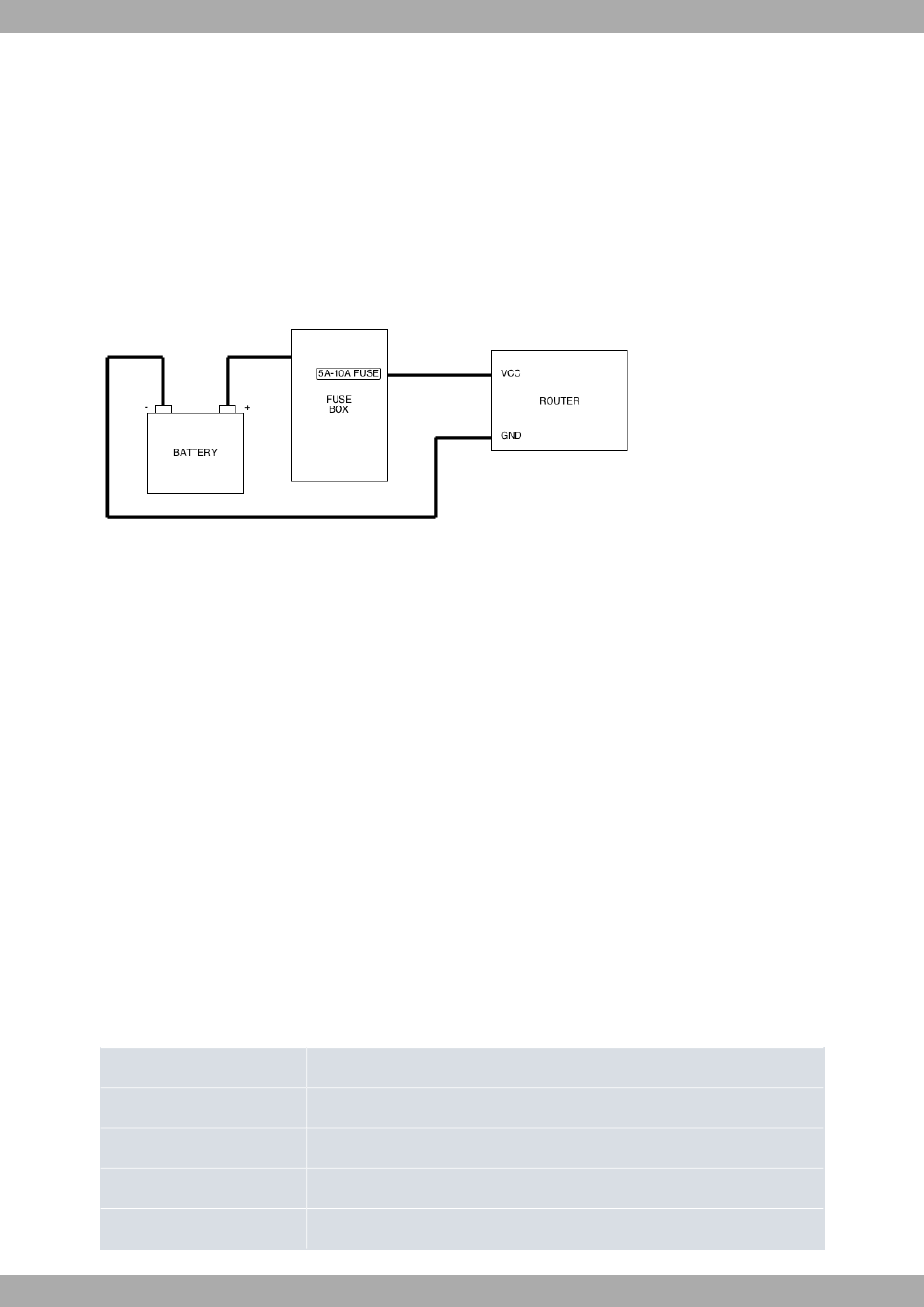

Cable Connection to vehicle power source
Fig. 6:
All components used in the connection to the vehicle should be UL Listed and comply with the regulations of the
country where the installation takes place.
The cabling should be separated from other vehicle wiring and should be routed away from sharp edges.
The power supply cable goes from the fuse panel to the router along the vehicle wall (ALWAYS inside the vehicle
cabin and NOT crossing the vehicle's firewall protection).

3.3.2 Connecting the power cable to the device

3.3.2.1 Connecting
• Make sure that the power supply cable is not connected to the device.
• Connect the data cables.
• Locate the 12 - 24 V DC connector, which is found on the rear part of the device.
• Insert the power cable connector.
3.3.2.2 Disconnecting
• Disconnect the power supply cable from the device.
• Disconnect the data cables.
3.3.2.3 Power connector pinout
PIN
1
2
3
4
Teldat H2 Automotive Router
Signal
-
+
ACC / IGNITION
Functional Earth
