3.1.2 Rear Panel

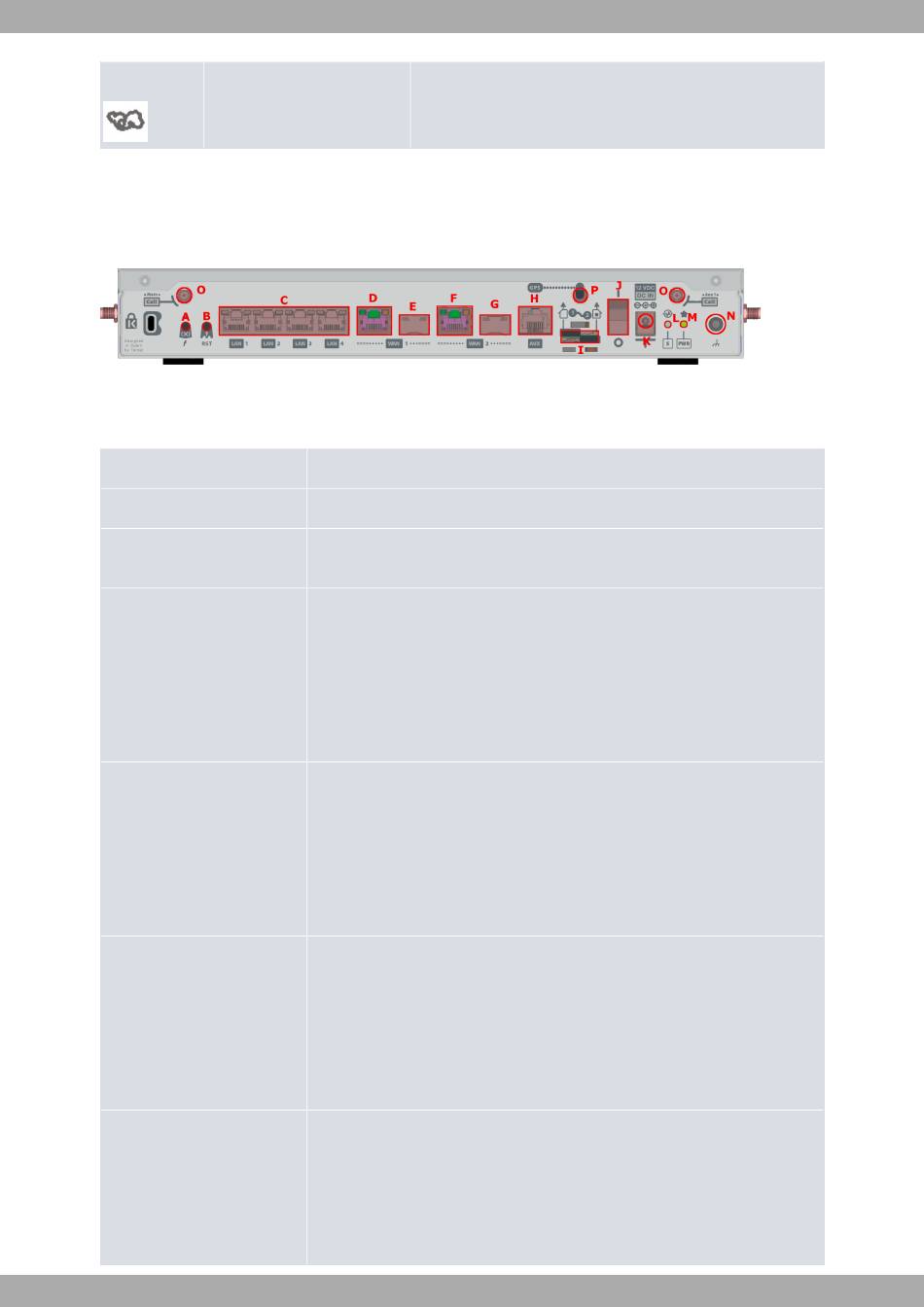

The following figure shows the rear panel. Here you will find most connectors belonging to the Teldat Connect-
KFPlus router.
Rear panel
Fig. 2:
The following table provides information on each connector, as well as a description:
Rear panel elements
Item
A
B
C
D
E
F
Teldat Connect-KFPlus
Cloud Information
Description
Function.
RST. Reset button. For further information on how the reset button works, please
see RST Button
4-port Gigabit Ethernet switch.
For more information about the LAN interface, refer to:
- 4-port Ethernet switch Connections
- LAN Connector (Switch)
- LAN Interface
Eth WAN-1 Base-T. WAN Gigabit Ethernet.
For more information about the WAN interface, refer to:
- WAN Connections
- WAN Base-T Connector
- WAN Base-T Interface
Eth WAN-1 SFP.
For more information about the SFP interface, refer to:
- WAN Connections
- WAN SFP Connector
- WAN SFP Interface
Eth WAN-2 Base-T. WAN Gigabit Ethernet.
This interface is disabled by default and can be enabled by means of a license.
For more information about the WAN interface, refer to:
- WAN Connections
Not used on this router.
on page 13.
on page 14
on page 22
on page 24
on page 14
on page 23
on page 25
on page 14
on page 23
on page 25
on page 14
