3 Components and Power Supply
F
G
H
I
In addition to the connections, you can see a set of luminous indicators, or LEDs, on the rear panel that provide in-
formation on what is happening in the router.

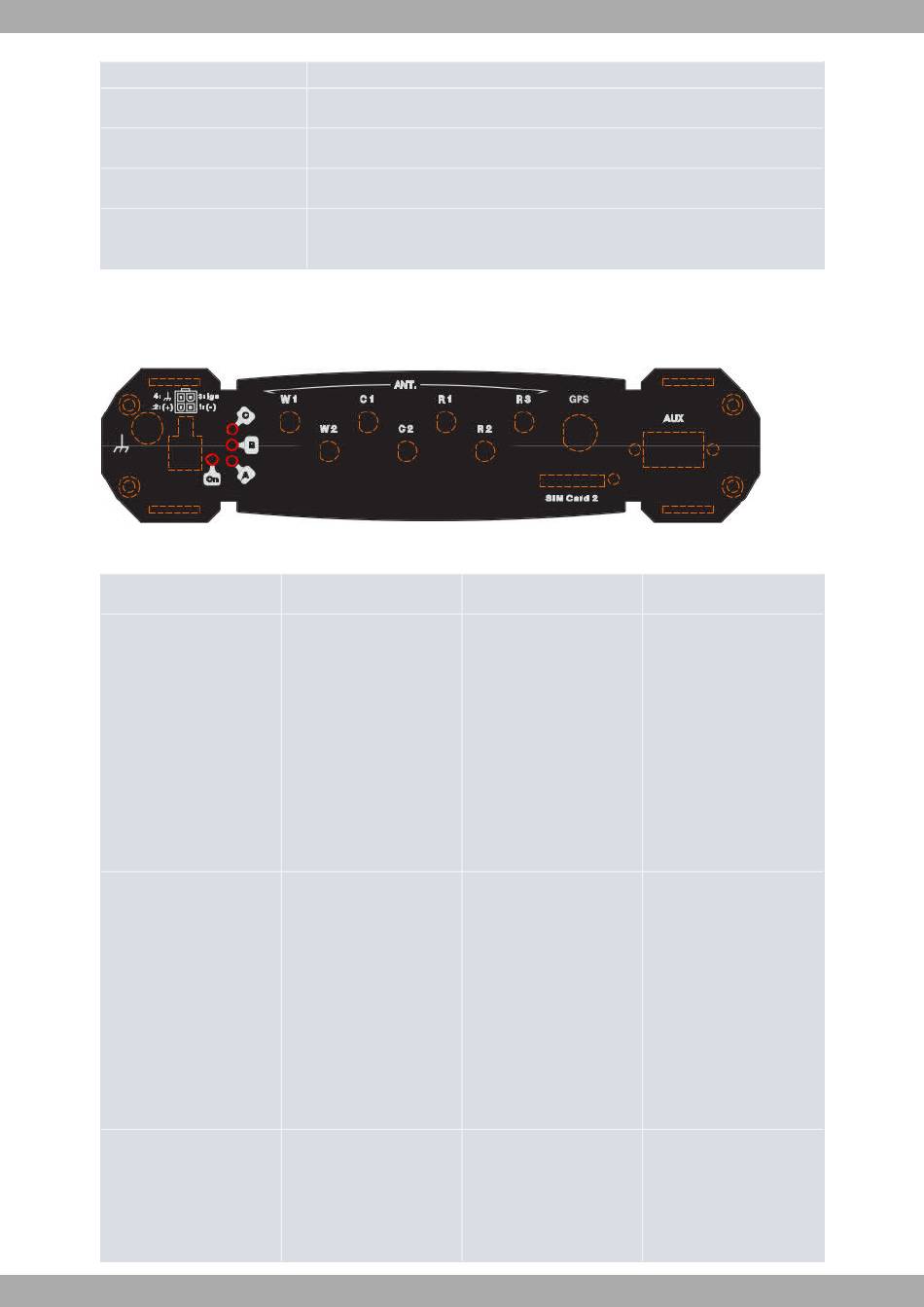

The LEDs on the rear panel of the router are shown in the following figure:
Rear panel LEDs
Fig. 3:
Rear panel LEDs
LED
A
B
C
6
optional (your device may not have any antennas).
R1, R2, R3. Antennas for the Wireless LAN or cellular Main module.
GPS. External GPS antenna.
SIM card 2. Slot where you can insert a SIM card for the Main cellular module.
AUX. DB9 connector that provides access to the device's local console for config-
uration and monitoring.
Associated Interface
Wireless WAN channel 0
(cellular1/1).
Wireless WAN channel 1
(cellular2/1).
The device has a MINI-PCI
slot where a Wireless LAN
daughter can be installed.
Status
Monochrome green
Monochrome green
Monochrome green
Description
OFF -> Interface is unavail-
able, not installed or not re-
gistered.
ON -> Registering or re-
gistered and connected to
the SIM carrier network:
- Steady: Is not transferring
data.
- Blinking: Transferring
data.
OFF -> Interface is unavail-
able, not installed or not re-
gistered.
ON -> Registering or re-
gistered and connected to
the SIM carrier network:
- Steady: Is not transferring
data.
- Blinking: Transferring
data.
OFF -> Interface is unavail-
able, not installed or not es-
tablished.
ON -> Connecting or con-
nected and communications
