Connectors
J2

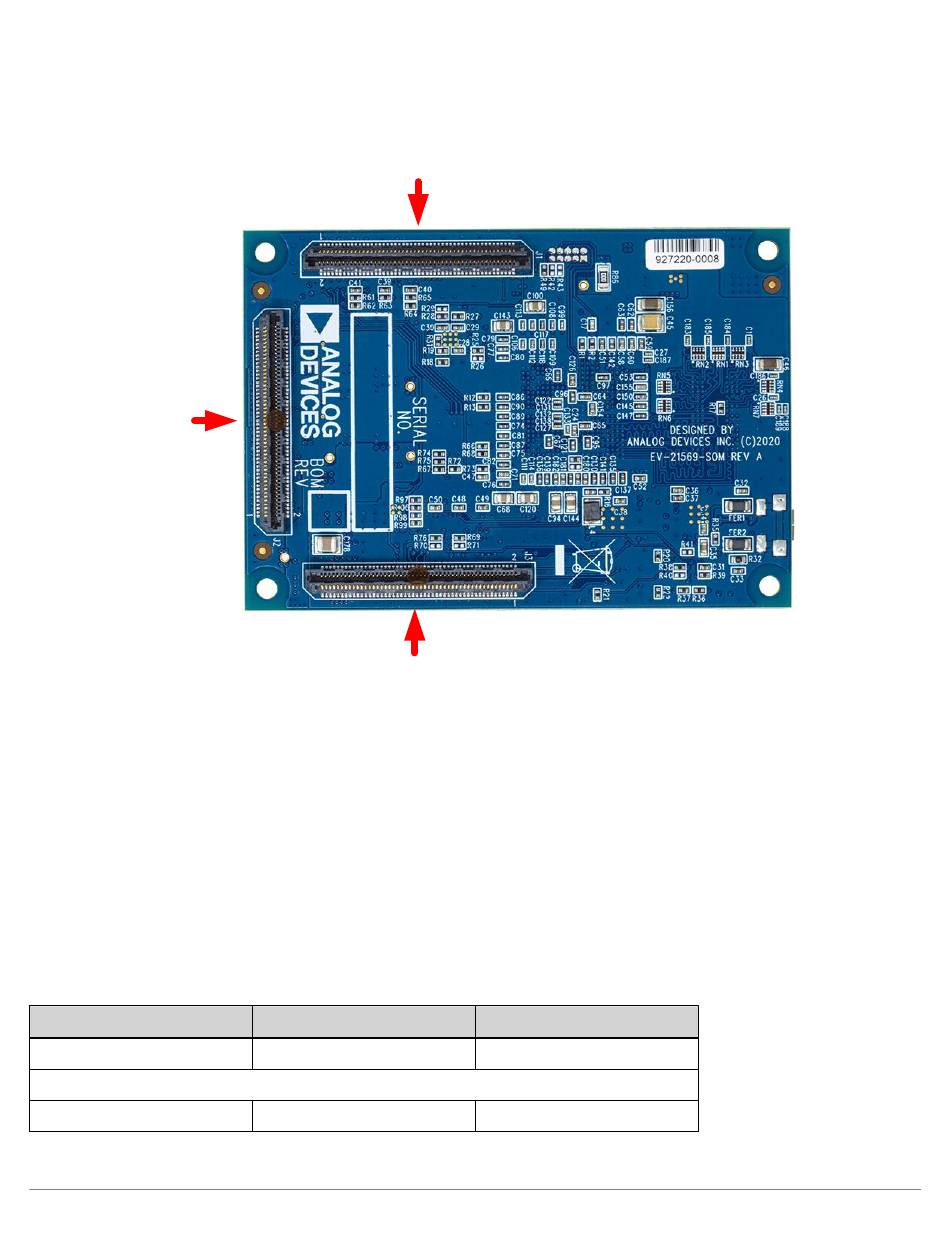

Figure 3-9: Connector Locations Bottom View
JTAG ( P1 )
The JTAG header provides debug connectivity for the processor. This is a 0.05" shrouded through-hole connector
from SAMTEC (SHF-105-01-L-D-SM-K). This connector mates with ICE-1000, ICE-2000, and any newer Ana-
log Devices emulators. For more information, see
MicroUSB Connector ( P2 )
USB Connection for FTDI RS232 to USB connection, and also power to SoM when JP1 pins 1-2 are set.
Part Description
MicroUSB 2.0
USB A to MicroUSB
3–12
J1
J3
Debug Interface
Manufacturer
Hirose
Mating Cable
ANY
Part Number
ZX62D-AB-5P8(30)
ANY
®
EV-21569-SOM
Manual
