One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
2×, 31.76 W into 4 Ω at16 V, THD + N = 10%
EVALUATION KIT CONTENTS
USBi USB interface board
USB cable
EVAL-SSM3582Z
evaluation board
ONLINE RESOURCES
Documents
SSM3582
data sheet
EVAL-SSM3582Z
user guide
Dynamic link library (DLL) for the
GENERAL DESCRIPTION
The
EVAL-SSM3582Z
is the evaluation board for the SSM3582,
an integrated stereo, 31.76 W, high efficiency, Class-D, audio
amplifier with digital input. The application circuit requires few
external components and can operate from a single 4.5 V to 16 V
supply. The
EVAL-SSM3582Z
of continuous output power to a 4 Ω load from a 12 V power
supply, with <1% THD + N, or 31.76 W into a 4 Ω load from 16 V,
10% THD + N.
The
SSM3582
features a high efficiency, low noise modulation
scheme that requires no external reconstruction filter (LC) output
filters. This scheme provides high efficiency, even at low output
power.
The
EVAL-SSM3582Z
and the
efficiency at 10 W into an 8 Ω load or 90.6% efficiency at 18 W
into 4 Ω load from a 12 V supply. The
SSM3582
have a typical noise floor of 38.5 μV rms A weighted.
This user guide describes how to configure and use the
evaluation board. Read this user guide in conjunction with the
SSM3582
data sheet, which provides specifications, internal block
diagrams, a register map, and application guidance for the
amplifier.

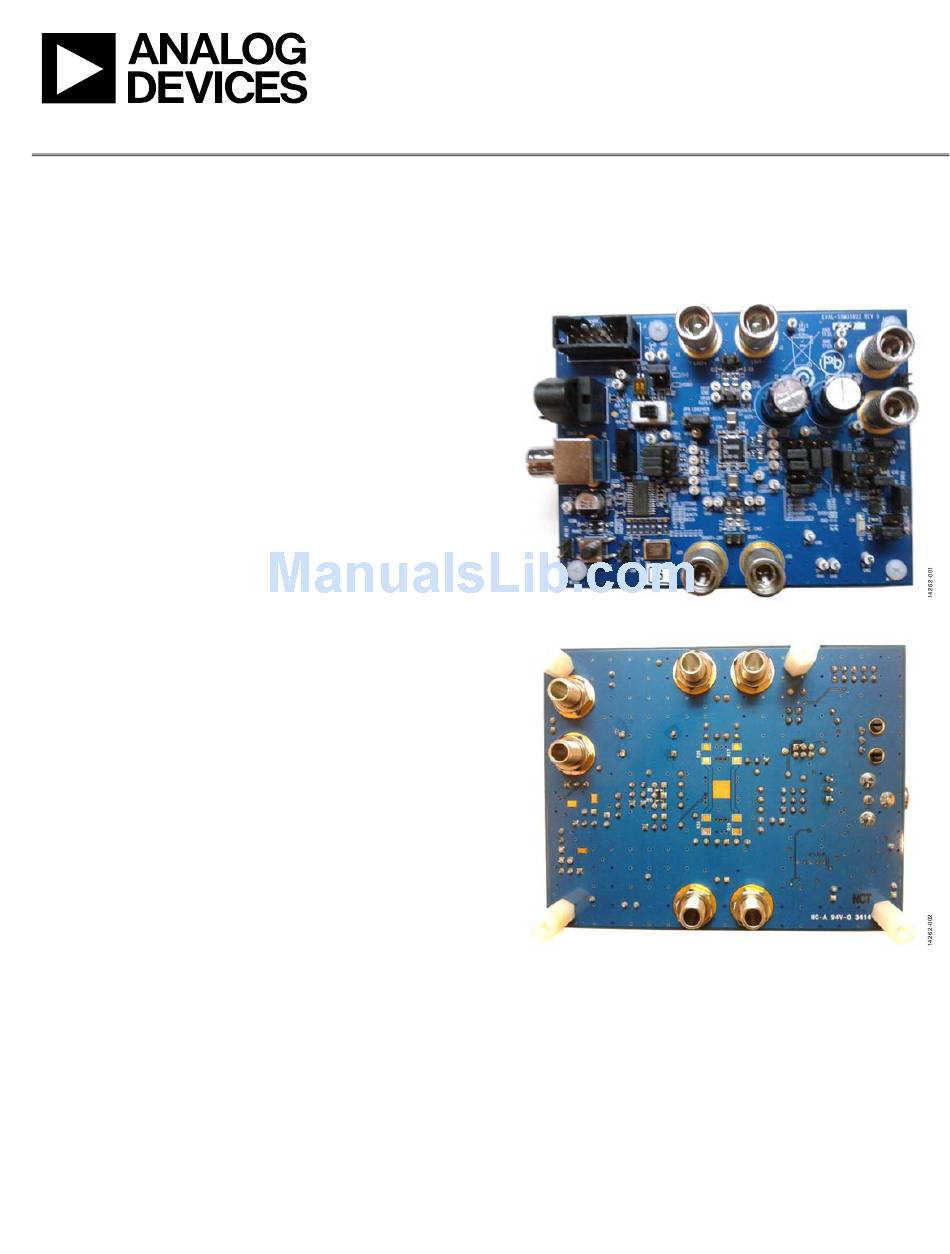

Figure 1 shows the top view of the evaluation board, and
Figure 2 shows the bottom view of the evaluation board.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
SSM3582
Filterless Stereo Class-D Audio Amplifier
SigmaStudio
software
is capable of delivering 14.67 W
SSM3582
operate with 93.8%
EVAL-SSM3582Z
and the
SSM3582
EVAL-SSM3582Z User Guide
2×, 31.76 W, Digital Input,
EVALUATION BOARD PHOTOGRAPHS
Figure 1.
Figure 2.
Rev. 0 | Page 1 of 13
SSM3582
Evaluation Board, Top View
SSM3582
Evaluation Board, Bottom View
UG-934
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices EVAL-SSM3582Z
Summary of Contents for Analog Devices EVAL-SSM3582Z
-
Page 1: Features
EVAL-SSM3582Z User Guide UG-934 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the SSM3582 2×, 31.76 W, Digital Input, Filterless Stereo Class-D Audio Amplifier FEATURES EVALUATION BOARD PHOTOGRAPHS 2×, 31.76 W into 4 Ω... -
Page 2: Table Of Contents
UG-934 EVAL-SSM3582Z User Guide TABLE OF CONTENTS Features ....................1 Power Supply Configuration............3 Evaluation Kit Contents ..............1 Edge Mode..................4 Online Resources ................1 Mono Operation ................4 General Description ................. 1 Component Selection ..............4 Evaluation Board Top View and Bottom View......... 1 Getting Started ...................5... -
Page 3: Setting Up The Hardware
EVAL-SSM3582Z User Guide UG-934 SETTING UP THE HARDWARE INPUT CONFIGURATION • Set Header JP4 to GND and insert Header J21, leaving Header JP3 and Header J18 open. There are several ways to source audio to the SSM3582 on the •... -
Page 4: Edge Mode
UG-934 EVAL-SSM3582Z User Guide EDGE MODE Set this bit by writing Register 0x04 with the hexadecimal value, 0xB1. This ensures the power stage turns on in mono operation. To reduce the radiated emissions from the SSM3582 amplifier, COMPONENT SELECTION an edge rate control mode is available. Register 0x05, Bit 3, controls the edge rate of the switching. -
Page 5: Getting Started
EVAL-SSM3582Z User Guide UG-934 GETTING STARTED To set up the SSM3582 to work in a simple, single-supply 10. Ensure the jumpers are inserted across all three rows of configuration for quick evaluation, follow these steps: Header JP10 to establish direct connection of the digital audio signal lines to the inputs of the SSM3582. -
Page 6: Evaluation Board Schematics And Artwork
UG-934 EVAL-SSM3582Z User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK SSM3 5 8 2 OUTPUTS I 2 S_ I 2 C ADDR1 ADDR1 OUTL+ OUTL+ ADDR0 ADDR0 OUTL– OUTL- SCL_ 3 5 8 2 OUTR+ OUTR+ SDA_ 3 5 8 2 OUTR–... - Page 7 EVAL-SSM3582Z User Guide UG-934 Figure 8. Schematic of the SSM3582 Evaluation Board I C, Digital Input Section Rev. 0 | Page 7 of 13...
- Page 8 UG-934 EVAL-SSM3582Z User Guide Figure 9. Schematic of the SSM3582 Evaluation Board Power Supply Section Rev. 0 | Page 8 of 13...
- Page 9 EVAL-SSM3582Z User Guide UG-934 OUTL+ OU TL+ LEFT OUTPUT OU TL– OUTL- OUTR+ J3 1 OU TR+ C3 9 RIGHT OUTPUT J2 9 C4 0 OU TR– OUTR- R2 THROUGH R30 NOT FITTED FOR STEREO R27 THROUGH R300OHM FOR MONO Figure 10.
- Page 10 UG-934 EVAL-SSM3582Z User Guide Figure 11. SSM3582 Evaluation Board Top Layer, Copper Figure 13. SSM3582 Evaluation Board Third Layer, Copper Figure 12. SSM3582 Evaluation Board Second Layer, Copper Figure 14. SSM3582 Evaluation Board Bottom Layer, Copper Rev. 0 | Page 10 of 13...
- Page 11 EVAL-SSM3582Z User Guide UG-934 Figure 15. SSM3582 Evaluation Board Top Silkscreen Figure 16. SSM3582 Evaluation Board Bottom Silkscreen Rev. 0 | Page 11 of 13...
-
Page 12: Ordering Information
BILL OF MATERIALS Table 2. Qty Reference Designator Description Manufacturer Part Number Board Evaluation Board EVAL-SSM3582Z, 4-layer, Analog Devices, Inc. EVAL-SSM3582Z 3.8" × 3" C1, C2, C39, C40 Multilayer ceramic capacitors, 220 pF, 50 V, NP0, 0402 Murata ENA GRM1555C1H221JA01D Multilayer ceramic capacitors, 1 μF, 25 V, X7R, 1206... - Page 13 (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA.
