One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com

FEATURES

On-board LDO voltage regulator for 2.5 V/3.3 V device under
test (DUT) supply
LDO can be bypassed to allow for an external supply
AC-coupled differential SMA connectors
SMA connectors for
2 differential input clocks
8 analog differential outputs
Jumpers to enable/disable the LDO voltage regulator
Clip on access points for power/ground
Jumper for input clock selection
Matched RF differential traces
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
EV1HMC6832ALP5L/EV2HMC6832ALP5L User Guide
Evaluation Boards for the
3.5 GHz, Low Noise, 2:8 Differential Fanout Buffer

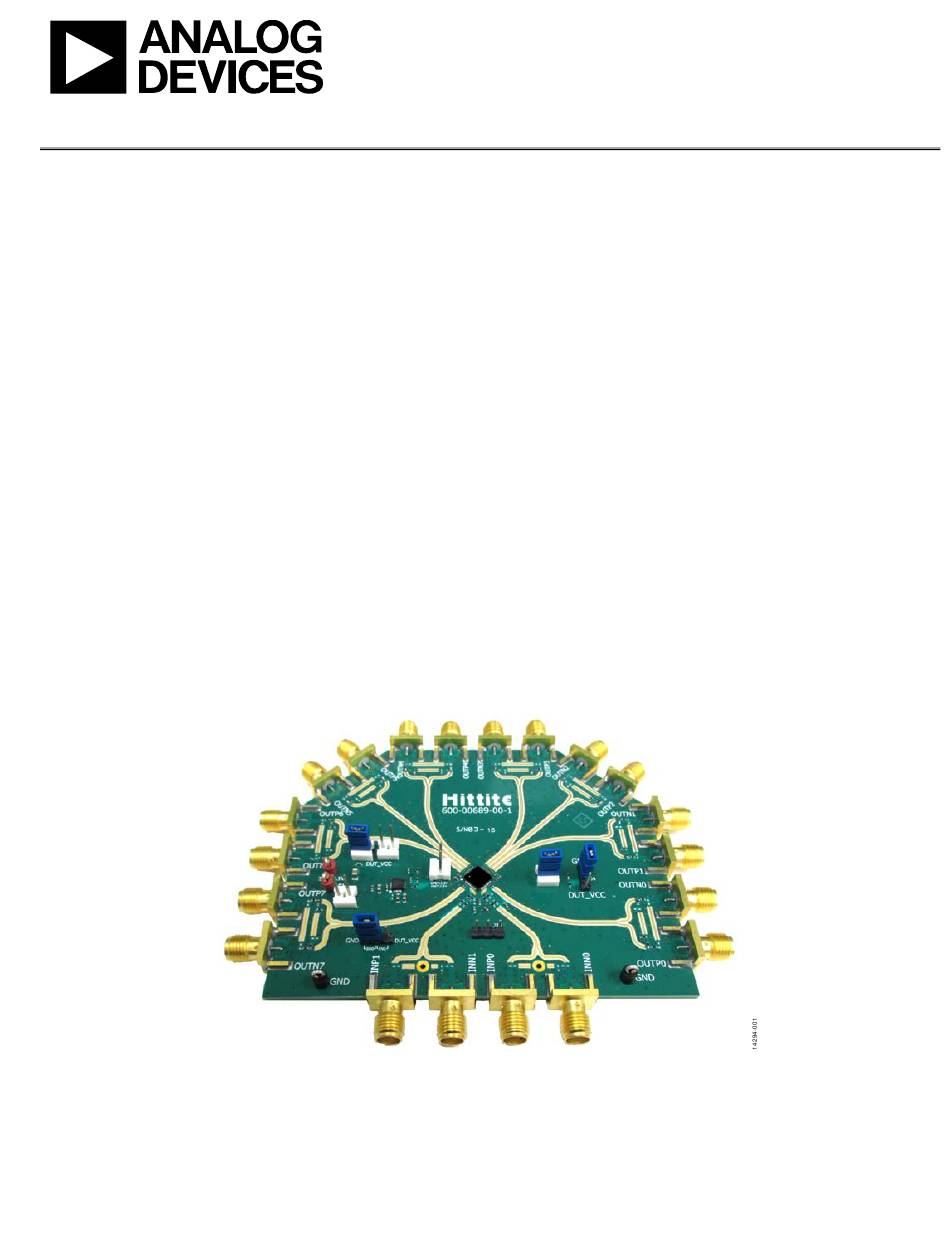

PHOTOGRAPH OF EV1HMC6832ALP5L

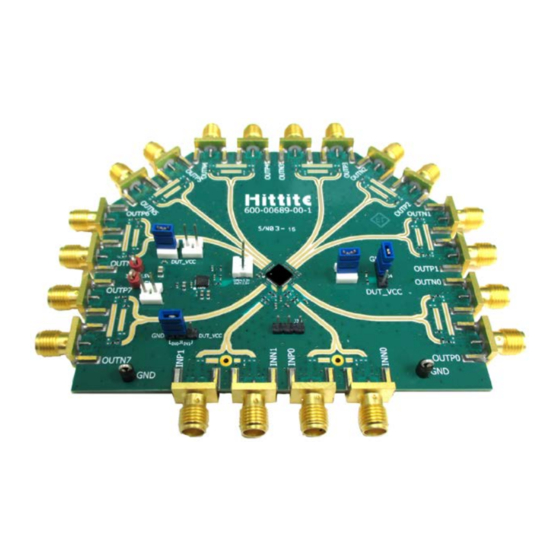

Figure 1. EV1HMC6832ALP5L Evaluation Board
HMC6832

GENERAL DESCRIPTION

This user guide describes the two evaluation boards for
evaluating the
HMC6832
Both evaluation boards, EV1HMC6832ALP5L and
EV2HMC6832ALP5L, allow access to all
input/outputs via SMAs.
The EV1HMC6832ALP5L is configured for the LVPECL
version of the product whereas the EV2HMC6832ALP5L is
configured for LVDS. Each board has an on-board low dropout
(LDO) regulator for 2.5 V/3.3 V operation that can be disabled
to use an external supply. Each board has matched RF
differential traces for testing output to output channel skew.
For full specifications on the HMC6832, see the product data
sheet, which should be consulted in conjunction with this user
guide when working with the evaluation board. The evaluation
board schematics and the
the
HMC6832
product page.
Rev. 0 | Page 1 of 6
UG-942
fully differential output buffer.
HMC6832
HMC6832
data sheet are available on

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV1HMC6832ALP5L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices EV1HMC6832ALP5L

Summary of Contents for Analog Devices EV1HMC6832ALP5L

  • Page 1: Features

    HMC6832 SMA connectors for input/outputs via SMAs. 2 differential input clocks The EV1HMC6832ALP5L is configured for the LVPECL 8 analog differential outputs version of the product whereas the EV2HMC6832ALP5L is Jumpers to enable/disable the LDO voltage regulator configured for LVDS. Each board has an on-board low dropout Clip on access points for power/ground (LDO) regulator for 2.5 V/3.3 V operation that can be disabled...

  • Page 2: Table Of Contents

    Features ....................1 Setting Up Signal Connections ............3 General Description ................. 1 Bypassing the 5 V LDO Voltage Regulator ........3 Photograph of EV1HMC6832ALP5L ..........1 Jumper Configurations ..............4 Revision History ................2 Test Equipment Configurations ............5 Getting Started .................. 3 Powering the Evaluation Board ..........

  • Page 3: Getting Started

    Input 1, via the IN_SEL pin of the HMC6832. The input is board, EV1HMC6832ALP5L or EV2HMC6832ALP5L. Prior determined by J3 on the evaluation board. A signal generator to powering on the evaluation board, it is important to verify...

  • Page 4: Jumper Configurations

    When J8 is not installed, power can device, depending on the be applied (2.5 V or 3.3 V) via TP2. installation status of J8. Analog Devices, Inc., use only. Do not install. Analog Devices use only. Table 2. Test Points...

  • Page 5: Test Equipment Configurations

    Figure 3. Test Point and Jumper Labels on EV1HMC6832ALP5L/EV2HMC6832ALP5L DC POWER SUPPLY OSCILLOSCOPE/ SIGNAL ANALYZER INP1 OUTN4 CLOCK SOURCE/ OUTP4 SIGNAL GENERATOR INN1 OUTN3 INP0 OUTP3 10MHz TO 3500MHz INN0 Figure 4. Block Diagram of the EV1HMC6832ALP5L/EV2HMC6832ALP5L Test Equipment Setup Rev. 0 | Page 5 of 6...
  • Page 6 (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.
