Power Requirements

The Veracity Control Wheels are a 12V or 24V DC system. They are designed to operate with voltages from 8-30V DC
with a draw of less than 0.2 A at 12V. The Veracity Wheels system has built in reverse polarity protection and a self-
resetting internal fuse in the event of overload.

Plugging In

Before applying power, plug in all the connections except the data plug that connects into the RC transmitter. There are
3 or 4 cables that need to be plugged in to the Pan Module. The slave wheel(s) (TILT and/or ROLL), the data cable (plug
into Veracity wheels only before power up, depending on what your RC system requires) and finally the power cable.

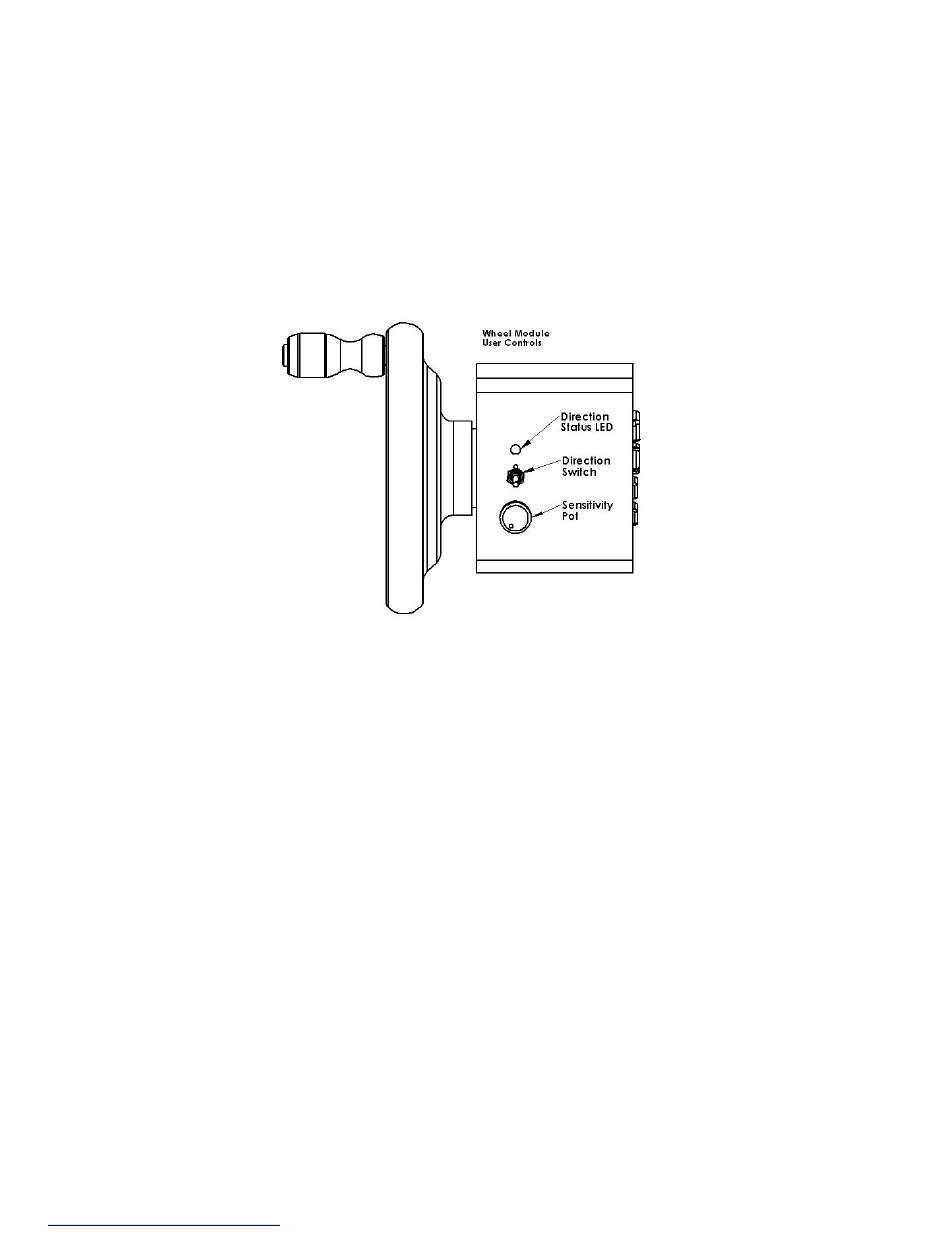

The controls are similar to those found on most remote camera mount wheels. The sensitivity pot is an infinite ratio
control. The actual wheel to camera ratios will depend on the mount used and the scaling set up in the RC controller.
The sensitivity makes the digital pulse stream vary from 0 – 100% when the wheel is turned as fast as possible. It reduces
the hand wheel signal according to the pot position.
The direction switch is a three position switch. The center position disables the wheels output. The left and right
positions set the direction sense of the wheel.
The LED is green for one direction and red for the other and is off when the wheels are disabled.
PLC Electronic Solutions Ltd.
Copyright © 2017
www.plcelectronicsolutions.com
Page 7
