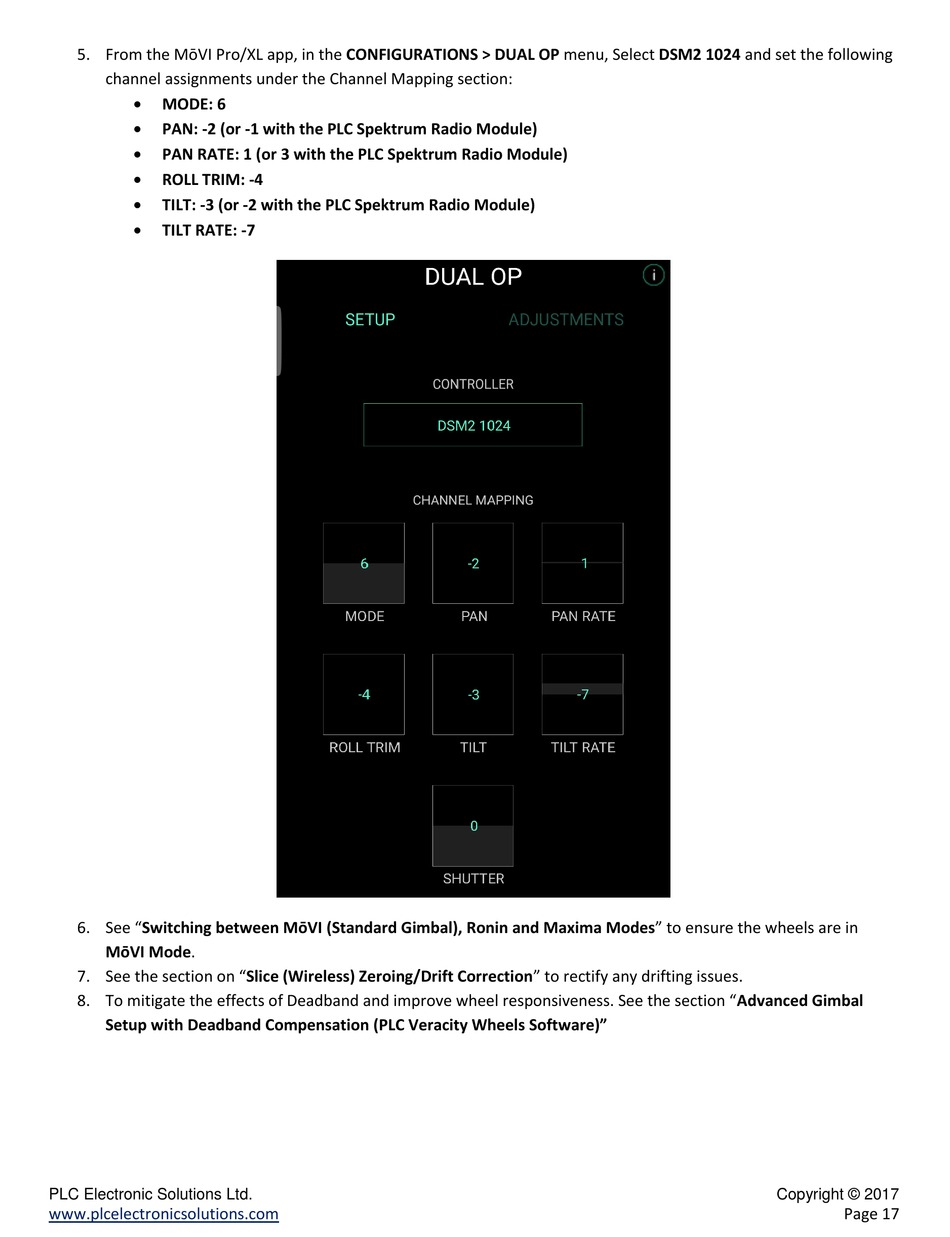

5. From the MōVI Pro/XL app, in the CONFIGURATIONS > DUAL OP menu, Select DSM2 1024 and set the following
channel assignments under the Channel Mapping section:

MODE: 6

PAN: -2 (or -1 with the PLC Spektrum Radio Module)

PAN RATE: 1 (or 3 with the PLC Spektrum Radio Module)

ROLL TRIM: -4

TILT: -3 (or -2 with the PLC Spektrum Radio Module)

TILT RATE: -7
6. See "Switching between MōVI (Standard Gimbal), Ronin and Maxima Modes" to ensure the wheels are in
MōVI Mode.
7. See the section on "Slice (Wireless) Zeroing/Drift Correction" to rectify any drifting issues.
8. To mitigate the effects of Deadband and improve wheel responsiveness. See the section "Advanced Gimbal
Setup with Deadband Compensation (PLC Veracity Wheels Software)"
