DJI Ronin (Futaba Radio) Setup

1. Ensure the Futaba TM-8 Radio Module is installed onto the slice.
2. Power on the DJI Ronin and ensure no other Futaba Radio Controllers are powered on.
3. With the Futaba TM-8 Radio Module installed, power on the Veracity & Futaba Slice Control Wheels.

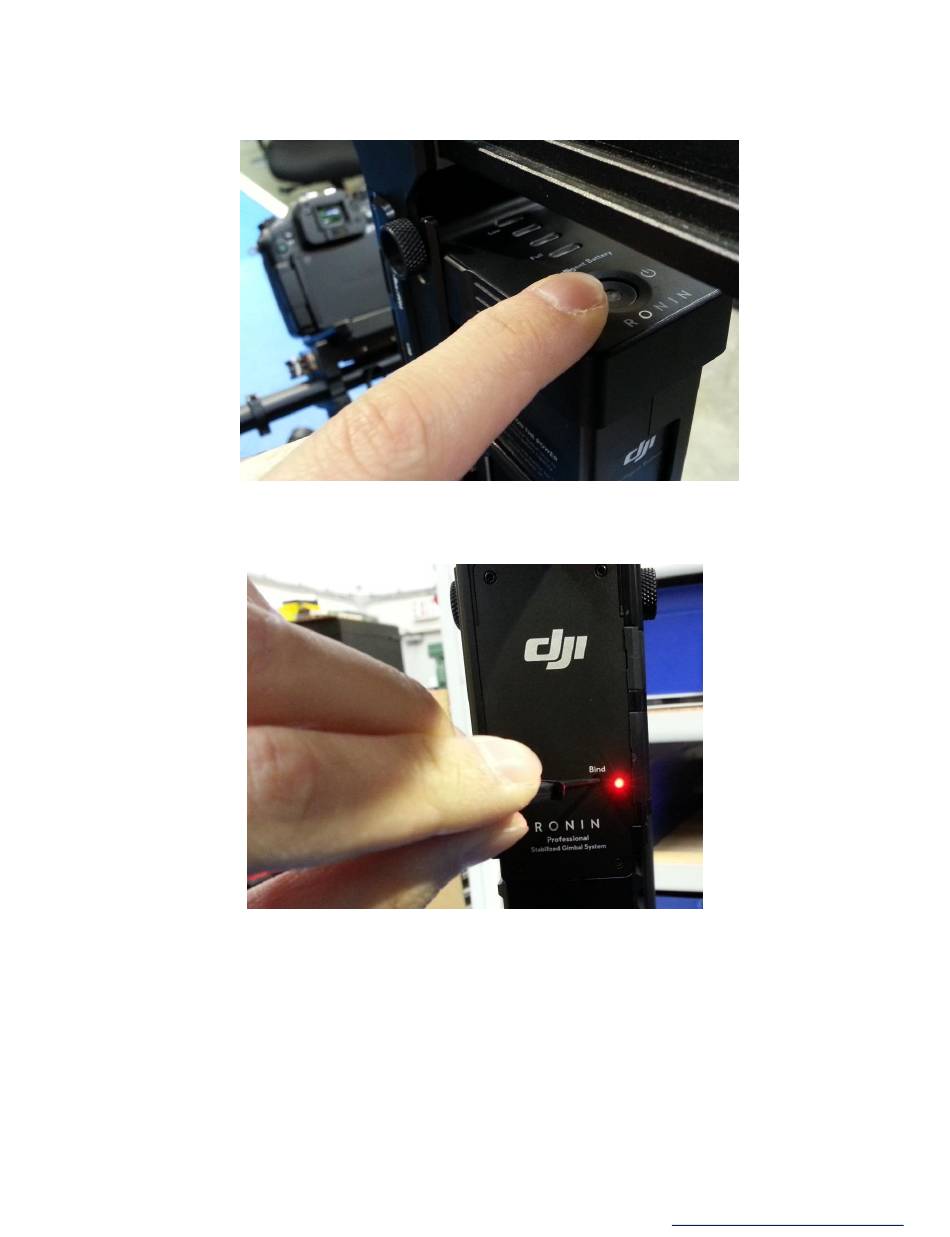

4. Using a pointed (but not sharp) object, hold down the BIND button on the DJI Ronin.
5. The Bind LED on the Ronin should initially flash to indicate an attempt to bind, then should arrive at a solid light
once bound.
6. See "Switching between MōVI (Standard Gimbal), Ronin and Maxima Modes" to ensure the wheels are in
Ronin Mode.
7. See the section on "Slice (Wireless) Zeroing/Drift Correction" to rectify any drifting issues.
8. To mitigate the effects of Deadband and improve wheel responsiveness. See the section "Advanced Gimbal
Setup with Deadband Compensation (PLC Veracity Wheels Software)"
