11. Repeat steps 7 to 10 but for the Tilt and Roll (if roll is used) Axes.

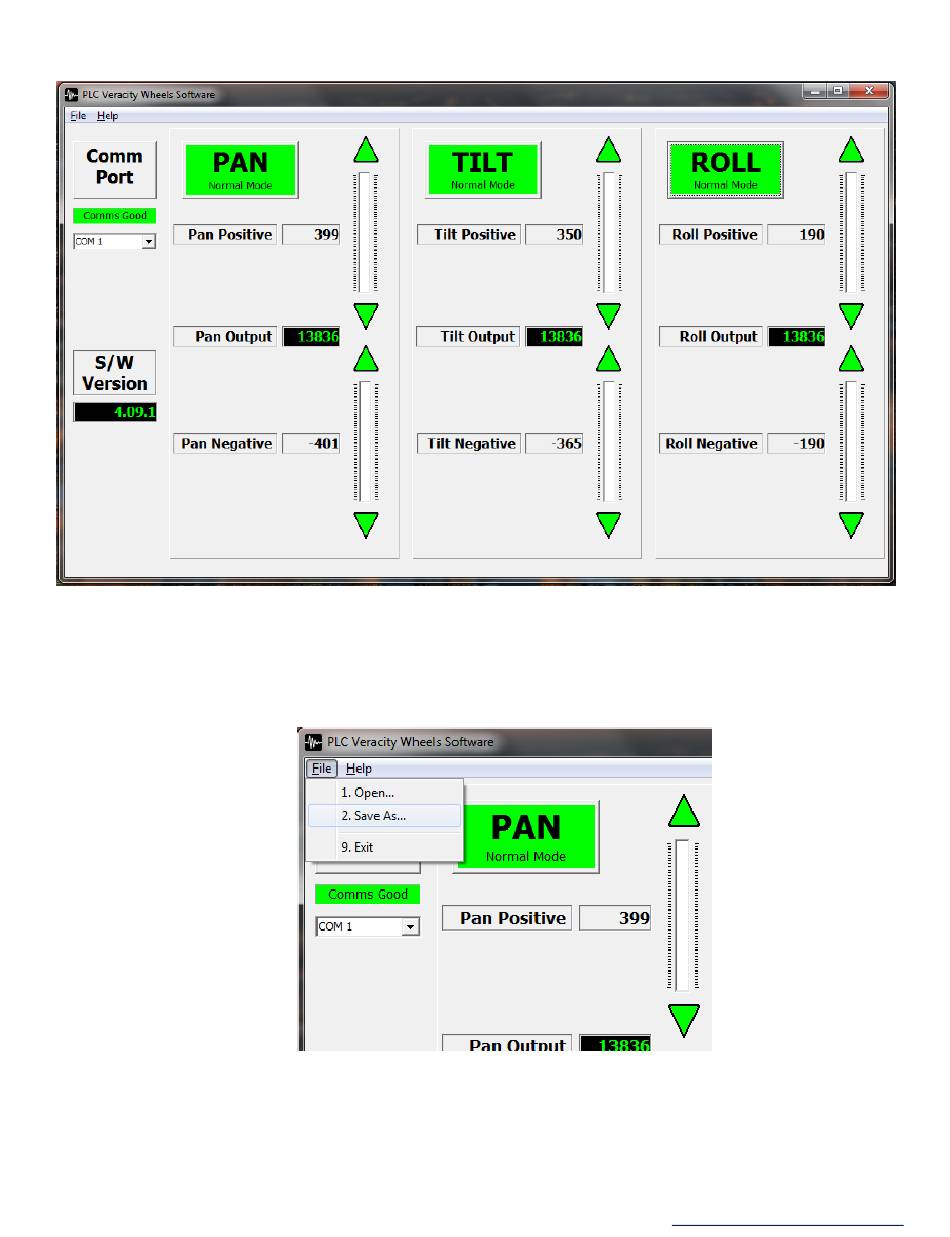

12. Once values for all axes have been set, ensure all Axes buttons are green. The wheels are now optimized for
Deadband compensation and increased wheel motion responsiveness.
13. Parameters can be saved to file and opened later from the "File" menu. This may be useful for use with different
profiles or if values are reset during a software update.
***Note: This procedure must be performed for any changes to your Gimbal Setup Profile or after re-zeroing
your wheels.
