Veracity Control Wheels
Wired Operation Manual
READ ALL INSTRUCTIONS BEFORE OPERATING.
Document Number: PLC850-0008
Document Version: 024
August 2017
Copyright © 2017
www.plcelectronicsolutions.com
PLC Electronic Solutions Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Veracity Control Wheels and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PLC Electronic Solutions Veracity Control Wheels

  • Page 1 Veracity Control Wheels Wired Operation Manual READ ALL INSTRUCTIONS BEFORE OPERATING. Document Number: PLC850-0008 Document Version: 024 August 2017 Copyright © 2017 www.plcelectronicsolutions.com PLC Electronic Solutions Ltd.
  • Page 2: Table Of Contents

    Verify DX18 Spektrum Radio Setup ..........................23 Appendix 4 - Setting up with your Futaba T14SG Radio Controller ..................24 Verify Futaba T14SG Radio Setup ............................. 28 Limited Warranty .................................. 29 Technical Support ................................. 29 Copyright © 2017 PLC Electronic Solutions Ltd. Page 2 www.plcelectronicsolutions.com...
  • Page 3: Introduction

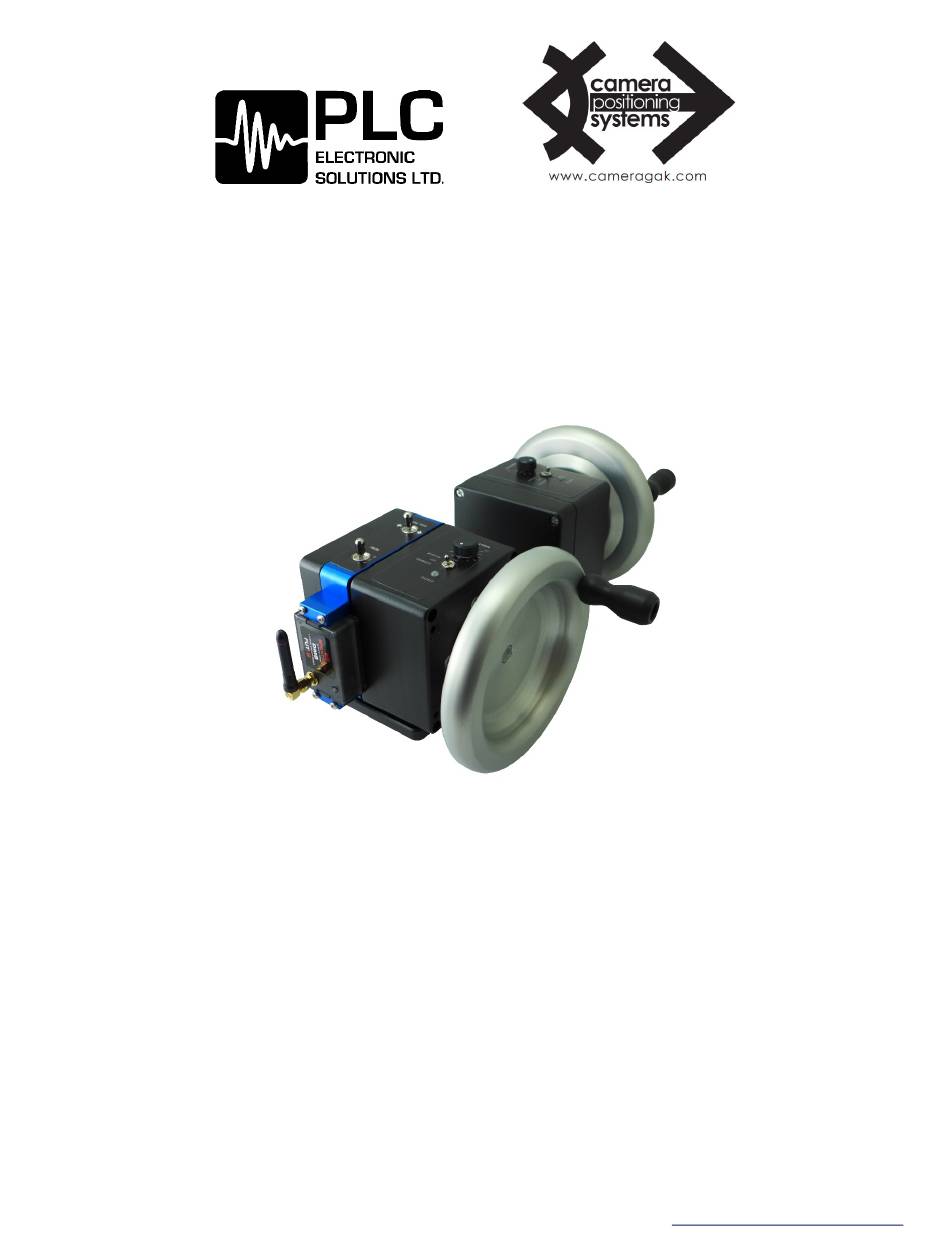

    Optionally additional third axis ROLL Wheel, if ordered. This manual describes what is required and how to operate the Veracity Control Wheels. The Veracity Control Wheels system is a professional digitally controlled hand wheel system for operation of RC style camera gimbal mounts.
  • Page 4: Unpacking

    What is in the case? The first thing to note is the Veracity Control Wheels ship in a customized Pelican Storm™ hard case, so repackaging for field use is not required. The foam cut-outs provide spots for the PAN and TILT modules together on the default baseplate as well as the ROLL wheel, which can be added at any time as an option to the system.
  • Page 5: Connections

    Connections The Veracity Control Wheels have the following connections: PAN Wheel The PAN Wheel module is the ‘smart’ module. It has 4 Lemo connectors on the back of the enclosure. These are for Power, Data, Tilt and Roll as shown. It also has 4 LEDs and a recessed switch on the same face as the connectors.
  • Page 6: Power Requirements

    Power Requirements The Veracity Control Wheels are a 12V or 24V DC system. They are designed to operate with voltages from 8-30V DC with a draw of less than 0.2 A at 12V. The Veracity Wheels system has built in reverse polarity protection and a self- resetting internal fuse in the event of overload.
  • Page 7: Connectors And Pinouts

    P7) Speed Pot Powering Up 1) Apply power to the Veracity Control Wheels either via a battery or power supply (neither are supplied). The Green LED over the power connector should come on immediately. If this does not, you should check your cables and power source.
  • Page 8: Veracity Ppm (Wired To Rc Controller) Operation

    They are designed to interface with the ‘trainer’ port commonly available on RC controllers. Look in the appendices for notes on specific RC models and setting up the trainer port. The Veracity Control Wheels use the following channels for the data stream. These assignments are fixed into the Veracity Control Wheels’ firmware and cannot be changed.
  • Page 9: Ppm (Wired) Zeroing/Drift Correction

    RC monitor. 4) When all of the channels assigned to the Veracity Control Wheels are reading zero on the RC controller monitor, press and hold the Zero Button until the LEDs stop flashing and are on solid, then release. The LEDs will go off.
  • Page 10: Veracity Slice (Wireless) Operation

    PLC Jeti or a Spektrum DM8 radio module to connect to your receiver depending on what gimbal you have chosen. Please see the Veracity Wireless Manual for more information. Copyright © 2017 PLC Electronic Solutions Ltd. Page 10 www.plcelectronicsolutions.com...
  • Page 11: Switching Between Mōvi (Standard Gimbal), Ronin And Maxima Modes

    • Maxima (Jeti) = Orange STATUS LED flashes orange 4 times on start-up (cannot be used wired) The mode selection is stored in memory and will be recalled on power-up every time. PLC Electronic Solutions Ltd. Copyright © 2017 www.plcelectronicsolutions.com...
  • Page 12: Veracity Slide Mode Switch

    Veracity Slide Mode Switch The MODE switch function varies depending on whether the Veracity Control Wheels are in MōVI mode, Ronin mode or Maxima mode. MōVI (Standard Gimbal) With the unit in MōVI Mode, the operator has access to 3 mode-select options using the MODE select switch.
  • Page 13: Troubleshooting

    Troubleshooting Nothing happens – no lights, no sound, no motion Check wiring and ensure power is available on the Veracity Control Wheels. Make sure that your power cable is the correct polarity for this system. Hand Wheels & Radio Controller – do not connect Go to the Appendices section to set up your radio controller or refer to your RC controller manual for information on configuring the Trainer port.
  • Page 14: Appendix 1 - Setting Up With Your Dx9 Spektrum Radio Controller

    Appendix 1 - Setting up with your DX9 Spektrum Radio Controller The Veracity Control Wheels connect to your Radio Controller via the “Trainer Port” that is located on the back of your Radio Controller, in this case the Spektrum DX9.
  • Page 15 9. Scroll to the Switch and change the Inhibit to Switch B. Any time this switch is in the Active position the Veracity Control Wheels will work for PAN, TILT, and (if you set up for 3 axis) ROLL as well.
  • Page 16: Verify Dx9 Spektrum Radio Setup

    If you move the right control stick on the Radio Controller Up, Down, Left or Right you will see the AIL and ELE channels move relative to the stick position. Copyright © 2017 PLC Electronic Solutions Ltd. Page 16 www.plcelectronicsolutions.com...
  • Page 17 3. When you move the TILT Wheel the ELE channel will move in relation to the speed of the rotation of the Control Wheel. *** If the Roll axis is set up on the Veracity Control Wheels *** *** When you move the ROLL Wheel the RUD channel will move in relation to the speed of the rotation of the Control Wheel.
  • Page 18: Appendix 2 - Setting Up With Your Dx7S Spektrum Radio Controller

    6. Scroll to select the ELE channel and switch it to SLAVE. 7. Do the following only if you are using the ROLL axis on the Veracity Control Wheels: Scroll to select the RUD channel and switch it to SLAVE 8.
  • Page 19 12. Press and hold down the TRAINER Switch on the top-left corner of the DX7S. ***The TRAINER Switch MUST be continuously held down to enable functionality. 13. You’re all set-up! Proceed to “Verify DX7S Spektrum Radio Setup” instructions to check to ensure everything is in working order. PLC Electronic Solutions Ltd. Copyright © 2017 www.plcelectronicsolutions.com Page 19...
  • Page 20: Verify Dx7S Spektrum Radio Setup

    When you move the TILT Wheel the ELE channel will move in relation to the speed of the rotation of the Control Wheel. *** If the ROLL axis is set up on the Veracity Control Wheels *** • When you move the ROLL Wheel the RUD channel will move in relation to the speed of the rotation of the Control Wheel.
  • Page 21: Appendix 3 - Setting Up With Your Dx18 Spektrum Radio Controller

    6. Scroll to Select the ELE channel and switch it to SLAVE. 7. Do the following only if you are using the ROLL axis on the Veracity Control Wheels: Scroll to select the RUD channel and switch it to SLAVE.
  • Page 22 14. You’re all set-up! Proceed to “Verify DX18 Spektrum Radio Setup” instructions to check to ensure everything is in working order. Copyright © 2017 PLC Electronic Solutions Ltd. Page 22 www.plcelectronicsolutions.com...
  • Page 23: Verify Dx18 Spektrum Radio Setup

    When you move the TILT Wheel the ELE channel will move in relation to the speed of the rotation of the Control Wheel. *** If the ROLL axis is set up on the Veracity Control Wheels *** • When you move the ROLL Wheel the RUD channel will move in relation to the speed of the rotation of the Control Wheel.
  • Page 24: Appendix 4 - Setting Up With Your Futaba T14Sg Radio Controller

    Appendix 4 - Setting up with your Futaba T14SG Radio Controller The Veracity Control Wheels connect to your Radio Controller via the “Trainer Port” that is located on the back of your Radio Controller, in this case the Futaba T14SG.
  • Page 25 ON/OFF position on the display. b. Place Switch E / SE in OFF position. 6. Back in Page 4/4 of the "TRAINER" Menu, Ensure that "CH MODE" is set to "8CH". PLC Electronic Solutions Ltd. Copyright © 2017 www.plcelectronicsolutions.com Page 25...
  • Page 26 Tap S1 to get to Page 2/3 of the "FUNCTION" Menu and select "AUXILIARY6". Tap "RTN" to confirm and set. ii. In the “AUX6” row, set the "CTRL" from "- -" to "SC" (Switch C). Copyright © 2017 PLC Electronic Solutions Ltd. Page 26 www.plcelectronicsolutions.com...
  • Page 27 Set "AUX5" from "NORM" to "REV". b. Set "AUX6" from "NORM" to "REV". You’re all set-up! Proceed to “Verify Futaba T14SG Radio Setup” instructions to check to ensure everything is in working order. PLC Electronic Solutions Ltd. Copyright © 2017 www.plcelectronicsolutions.com Page 27...
  • Page 28: Verify Futaba T14Sg Radio Setup

    When you move the Tilt Wheel, Channel 2 on the monitor will move in relation to the speed of the rotation of the wheel. If the Roll axis is set up on the Veracity Control Wheels and Switch E (SE) is active: •...
  • Page 29: Limited Warranty

    To obtain warranty service, the defective instrument must be returned within 1 year from the original purchase date to PLC Electronic Solutions Ltd., along with a brief description of the defect claimed. PLC Electronic Solutions Ltd. will pay for ground shipping of any unit deemed to be covered under warranty.
