6. With your wheels and Gimbal powered and idle, turn the Sensitivity Knobs on each of your wheels fully
clockwise to 100%.

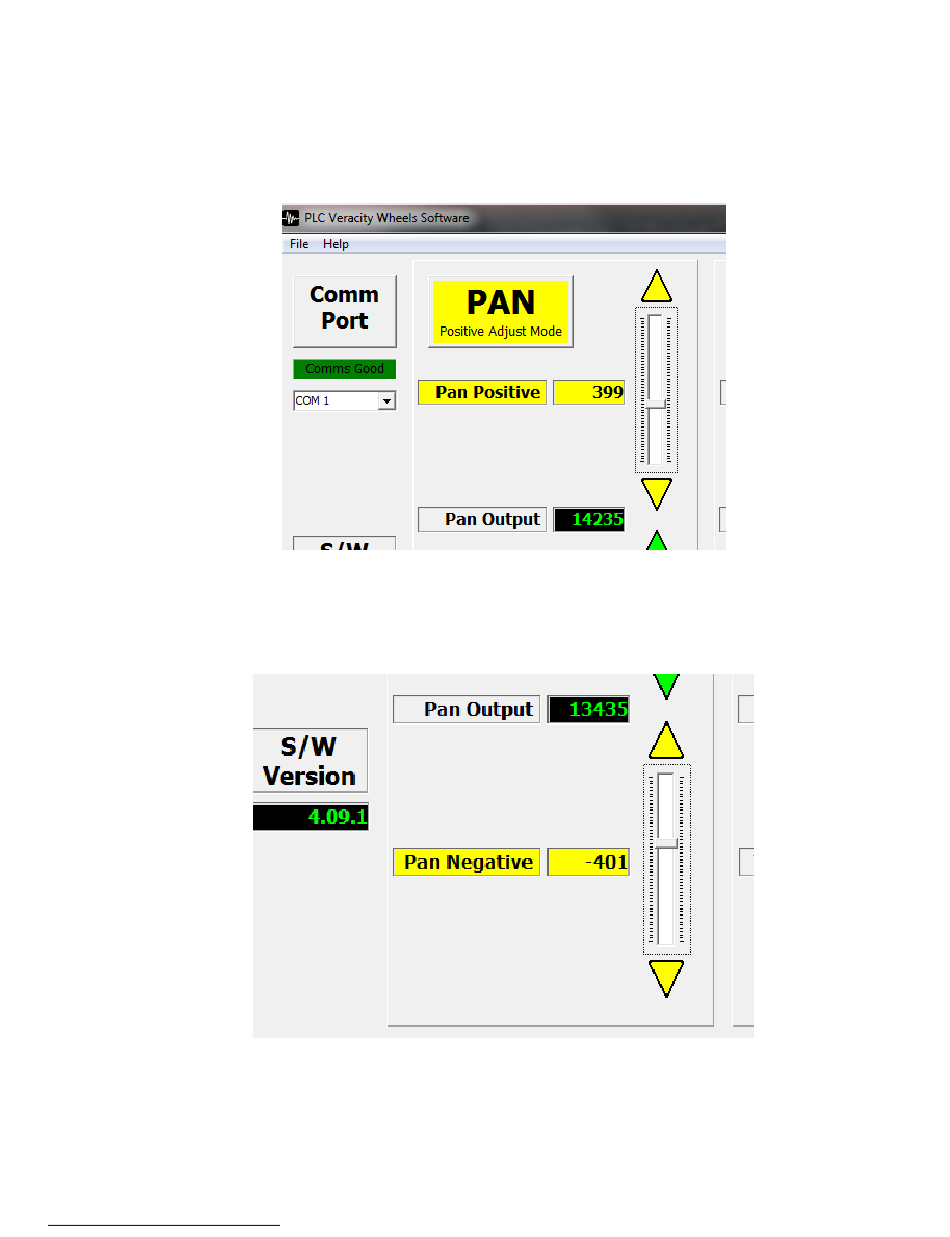

7. Starting with the Pan Wheel, increase the Pan Positive value until you notice the gimbal begin to pan in one
direction. Adjust this value to the point where only the slightest amount of movement can be noticed.
8. Once satisfied, click on the large PAN Button to save the value to Veracity memory.
9. Now raise the Pan Negative value until you notice the gimbal begin to pan in the opposite direction. Adjust this
value to the point where only the slightest amount of movement can be noticed.
10. Click on the large PAN Button to save the value to Veracity memory.
PLC Electronic Solutions Ltd.
www.plcelectronicsolutions.com
Copyright © 2017
Page 31
