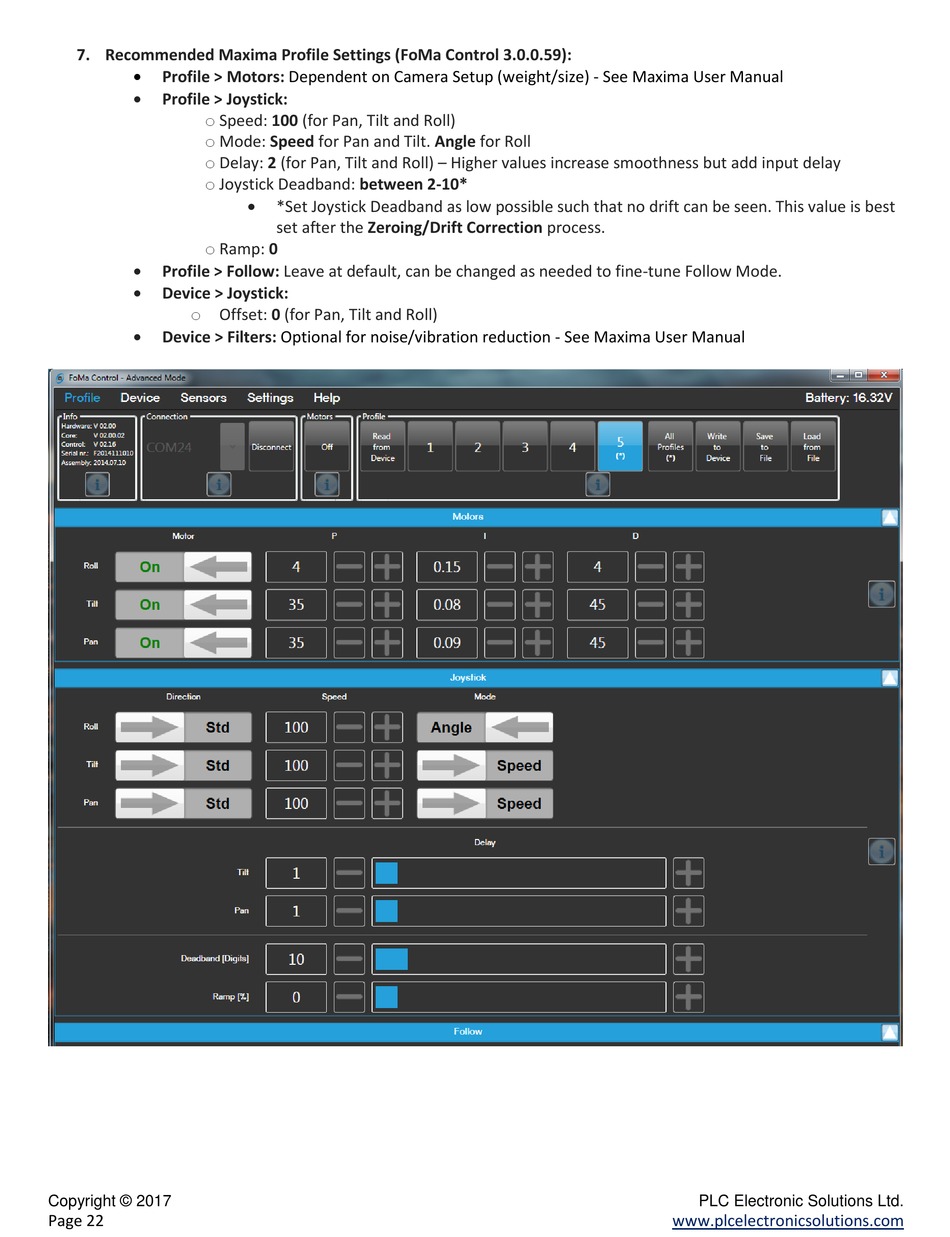

7. Recommended Maxima Profile Settings (FoMa Control 3.0.0.59):
Profile > Motors:
Profile > Joystick:
o Speed: 100 (for Pan, Tilt and Roll)
o Mode: Speed for Pan and Tilt. Angle for Roll
o Delay: 2 (for Pan, Tilt and Roll) – Higher values increase smoothness but add input delay
o Joystick Deadband: between 2-10*
o Ramp: 0
Profile > Follow: Leave at default, can be changed as needed to fine-tune Follow Mode.
Device > Joystick:
o Offset: 0 (for Pan, Tilt and Roll)
Device > Filters:
Copyright © 2017
Page 22
Dependent on Camera Setup (weight/size) - See Maxima User Manual
*Set Joystick Deadband as low possible such that no drift can be seen. This value is best
set after the Zeroing/Drift Correction process.
Optional for noise/vibration reduction - See Maxima User Manual
PLC Electronic Solutions Ltd.
www.plcelectronicsolutions.com
