Advanced Gimbal Setup with Deadband Compensation (PLC Veracity Wheels
Software)
Important: This software requires a Windows PC with a DB9 Serial port (or a USB to DB9 adapter). This also requires
Veracity Firmware Version 4.09.1 or higher. Please visit our website for software downloads and more information on
updating your firmware to the latest version.
Completing this procedure will minimize the effects of Deadband, minimizing drift, while increasing wheel motion
responsiveness. This especially useful for low-speed shots and detailed movement.
1. Ensure you have completed the basic gimbal setup procedures including zeroing from the previous sections and
ensure your wheels and Maxima are currently powered-on and communicating with Motors On.
2. Once the Gimbal and Wheels have been zeroed, connect your PC to the Veracity wheels via the DB9 Serial Data
Cable (PLC940-0029).

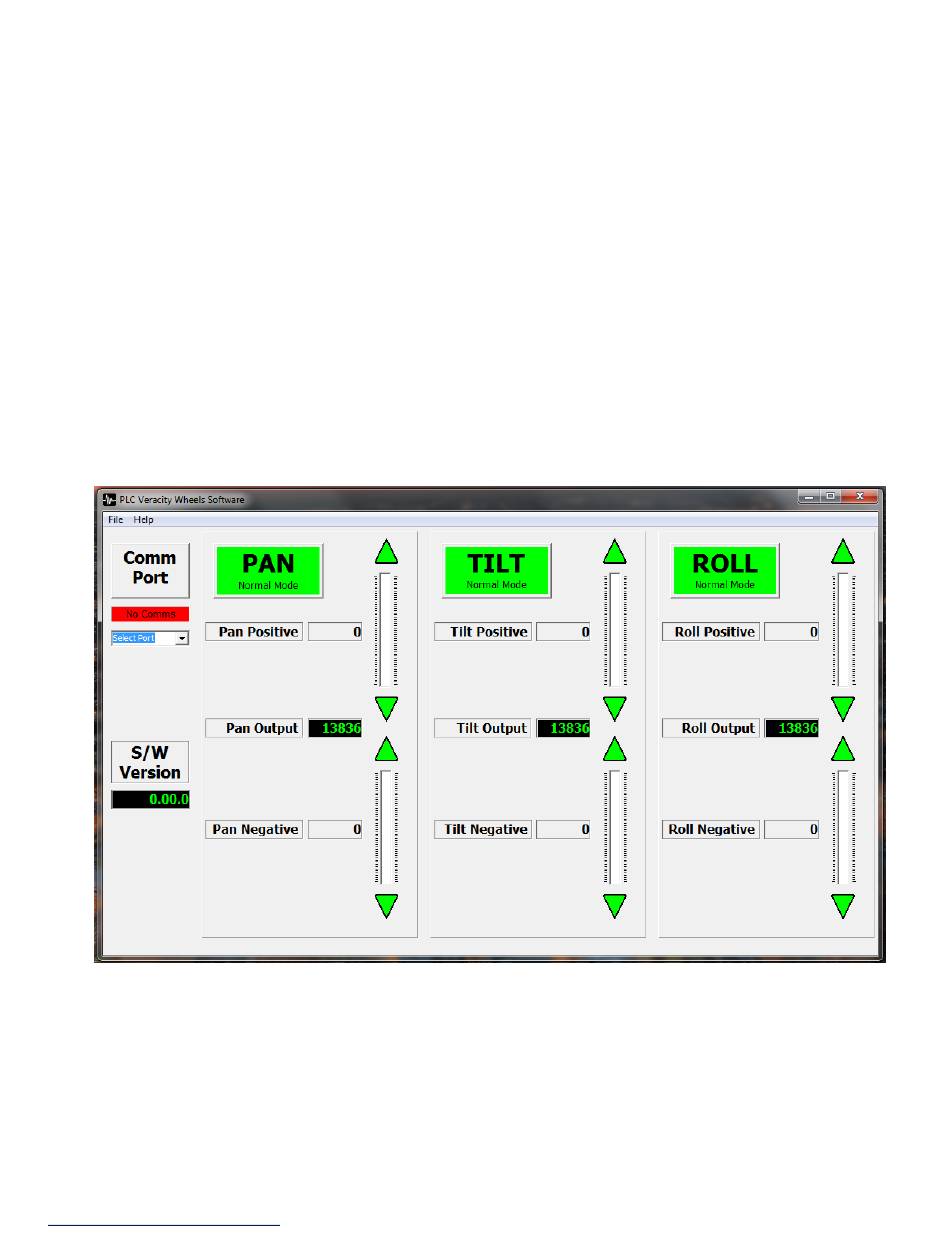

3. Launch the PLC Veracity Wheels Software.
PLC Electronic Solutions Ltd.
www.plcelectronicsolutions.com
Copyright © 2017
Page 29
