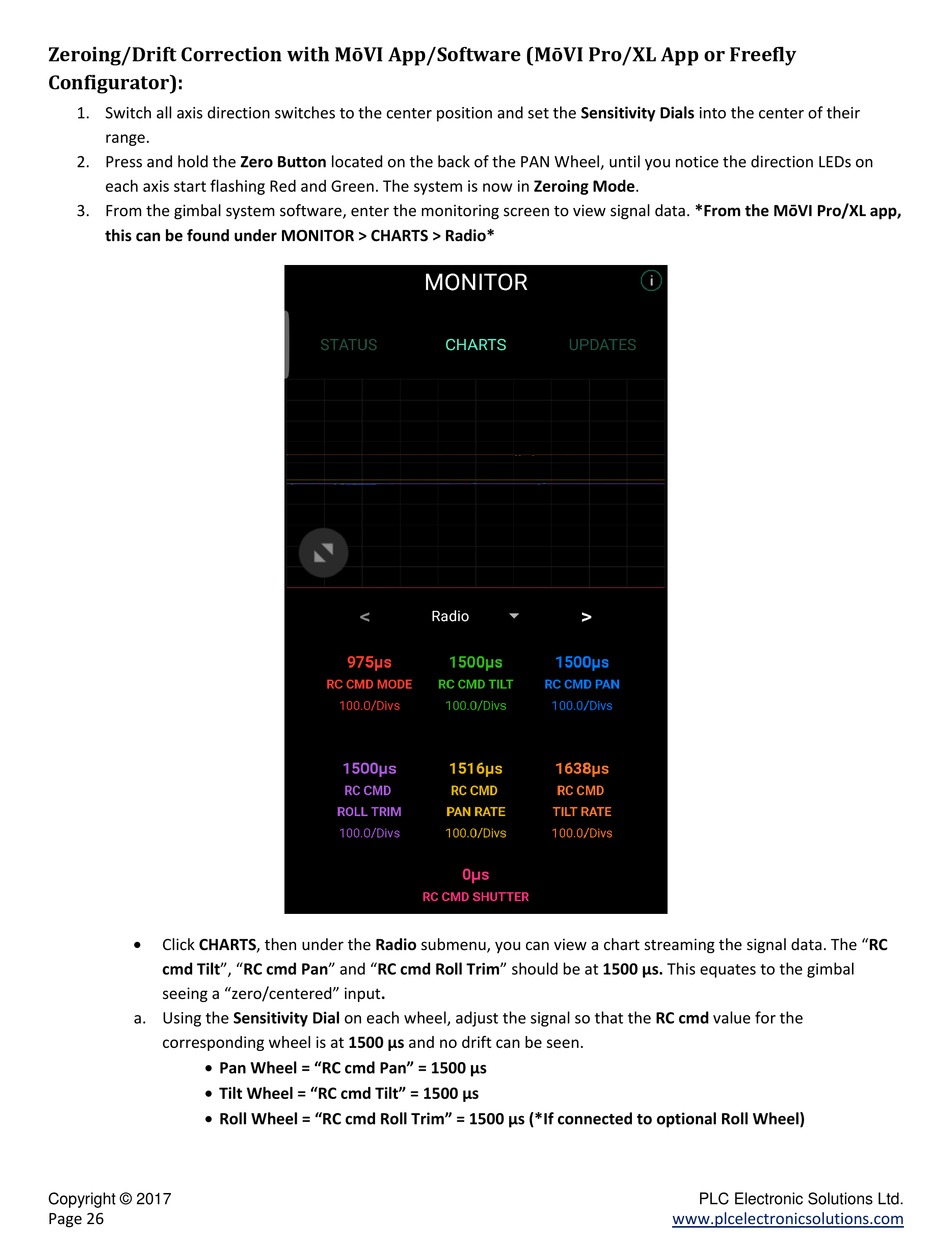

Zeroing/Drift Correction with MōVI App/Software (MōVI Pro/XL App or Freefly
Configurator):
1. Switch all axis direction switches to the center position and set the Sensitivity Dials into the center of their
range.
2. Press and hold the Zero Button located on the back of the PAN Wheel, until you notice the direction LEDs on
each axis start flashing Red and Green. The system is now in Zeroing Mode.
3. From the gimbal system software, enter the monitoring screen to view signal data. *From the MōVI Pro/XL app,
this can be found under MONITOR > CHARTS > Radio*
Click CHARTS, then under the Radio submenu, you can view a chart streaming the signal data. The "RC
cmd Tilt", "RC cmd Pan" and "RC cmd Roll Trim" should be at 1500 μs. This equates to the gimbal
seeing a "zero/centered" input.
a. Using the Sensitivity Dial on each wheel, adjust the signal so that the RC cmd value for the
corresponding wheel is at 1500 μs and no drift can be seen.
 Pan Wheel = "RC cmd Pan" = 1500 μs
 Tilt Wheel = "RC cmd Tilt" = 1500 μs
 Roll Wheel = "RC cmd Roll Trim" = 1500 μs (*If connected to optional Roll Wheel)
Copyright © 2017
Page 26
PLC Electronic Solutions Ltd.
www.plcelectronicsolutions.com
