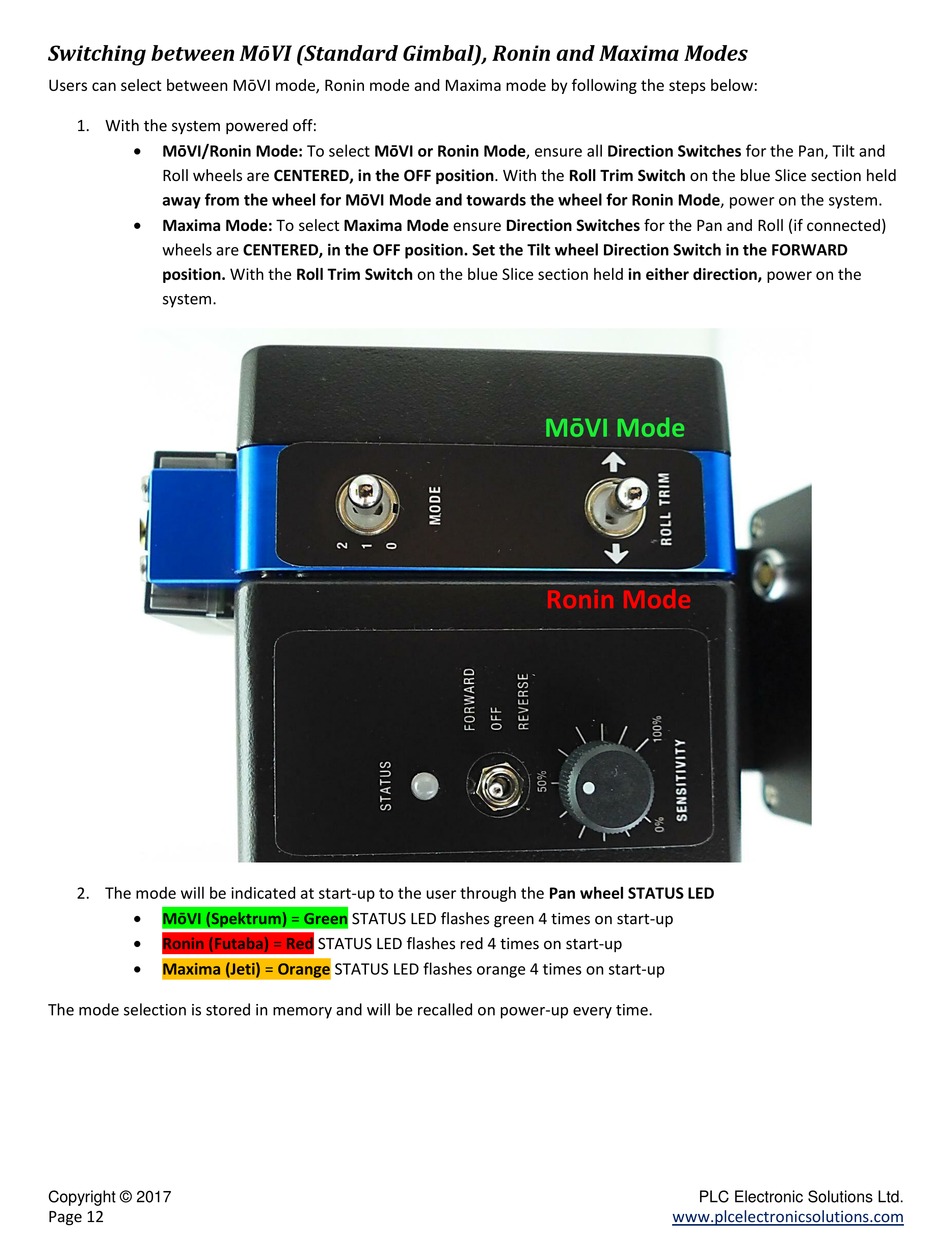

Switching between MōVI (Standard Gimbal), Ronin and Maxima Modes
Users can select between MōVI mode, Ronin mode and Maxima mode by following the steps below:
1. With the system powered off:
MōVI/Ronin Mode: To select MōVI or Ronin Mode, ensure all Direction Switches for the Pan, Tilt and
Roll wheels are CENTERED, in the OFF position. With the Roll Trim Switch on the blue Slice section held
away from the wheel for MōVI Mode and towards the wheel for Ronin Mode, power on the system.
Maxima Mode: To select Maxima Mode ensure Direction Switches for the Pan and Roll (if connected)
wheels are CENTERED, in the OFF position. Set the Tilt wheel Direction Switch in the FORWARD
position. With the Roll Trim Switch on the blue Slice section held in either direction, power on the
system.
2. The mode will be indicated at start-up to the user through the Pan wheel STATUS LED
MōVI (Spektrum) = Green STATUS LED flashes green 4 times on start-up
Ronin (Futaba) = Red STATUS LED flashes red 4 times on start-up
Maxima (Jeti) = Orange STATUS LED flashes orange 4 times on start-up
The mode selection is stored in memory and will be recalled on power-up every time.
Copyright © 2017
Page 12
MōVI Mode
Ronin Mode
PLC Electronic Solutions Ltd.
www.plcelectronicsolutions.com
