Connections

The Veracity Control Wheels have the following connections:

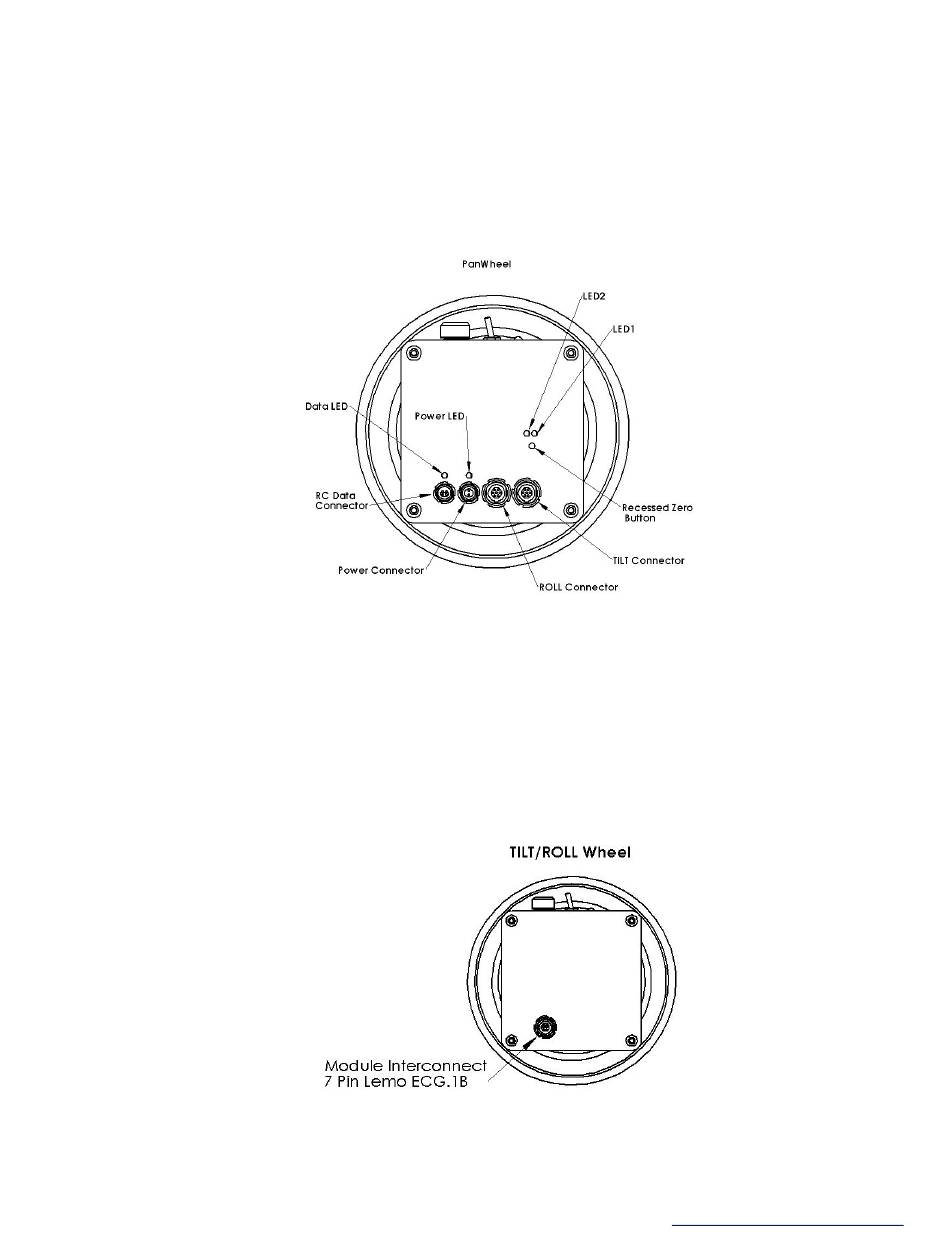

PAN Wheel

The PAN Wheel module is the 'smart' module. It has 4 Lemo connectors on the back of the enclosure. These are
for Power, Data, Tilt and Roll as shown. It also has 4 LEDs and a recessed switch on the same face as the
connectors.

TILT/ROLL Wheel(s)

The TILT/ROLL Wheel modules are interchangeable and have a single connector on the back of the enclosure.
This port connects to the PAN Wheel module, the TILT or ROLL connector determines which the TILT/ROLL
Wheel module will be used for.
Copyright © 2017
Page 6
