SEND FRAMES:

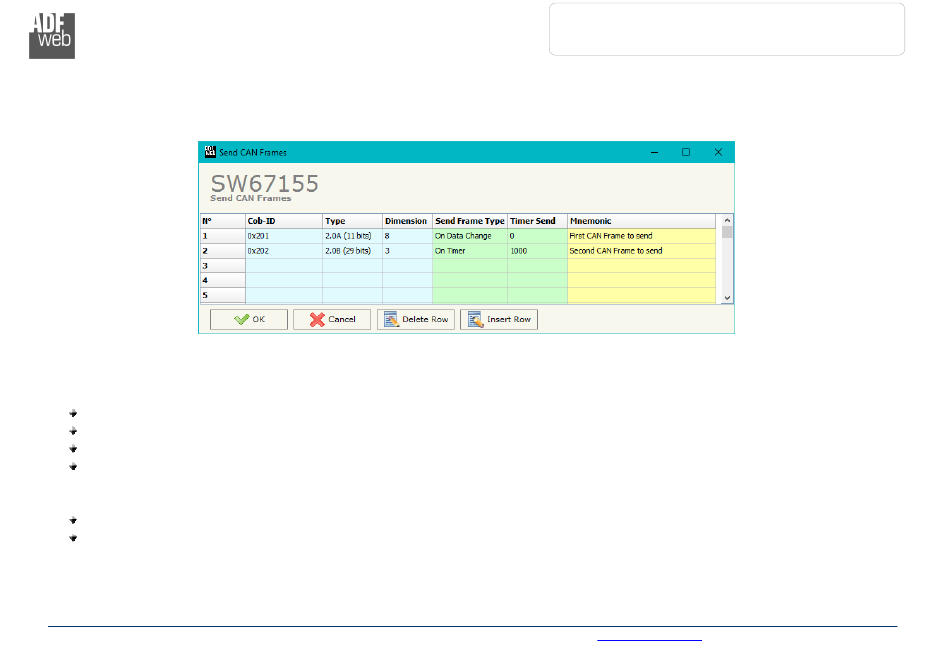

By pressing the "Send Frames" button from the main window for SW67155 (Fig. 2) the "Send CAN frames" window appears (Fig. 6).
The COB inserted in this table contains the Input data of SNMP. These frames are sent by the Converter.
Figure 6: "Send CAN Frames" window
The data of the columns have the following meanings:
In the field "Cob-ID" the COB-ID of the CAN frame is defined;
In the field "Type" the type of CAN message sent is defined ('2.0A (11bits)' or '2.0B (29bits)');
In the field "Dimension" the number of bytes of the CAN frame (from 1 to 8) is defined;
In the field "Send Frame
"On Data Change": the frame is sent when the data changes;
o
"On Times": the frame is sent cyclically;
o
In the field "Timer Send" the delay (in ms) between two CAN frames is defined (if the option
In the field "Mnemonic" a brief description is defined.
