FUNCTION MODES:

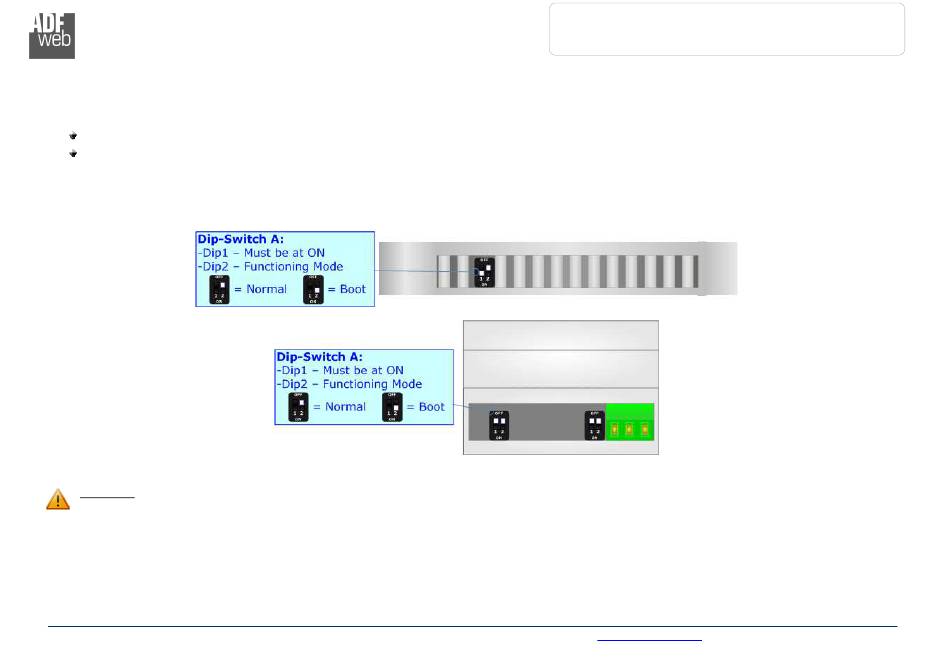

The device has got two functions mode depending of the position of the 'Dip2 of Dip-Switch A':

The first, with 'Dip2 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.

The second, with 'Dip2 of Dip-Switch A' at "ON" position, is used for upload the Project and/or Firmware.

For the operations to follow for the updating, see 'UPDATE DEVICE' section.

According to the functioning mode, the LEDs will have specifics functions, see 'LEDS' section.

Warning:

Dip1 of 'Dip-Switch A' must be at ON position for working even if the Ethernet cable isn't inserted.

ADFweb.com Srl – IT31010 – Mareno – Treviso

User Manual CAN / SNMP Agent

Document code: MN67155_ENG

INFO:

www.adfweb.com

Phone +39.0438.30.91.31

Revision 1.100

Pagina 9 di 37
