INSTALLATION

5 Installation

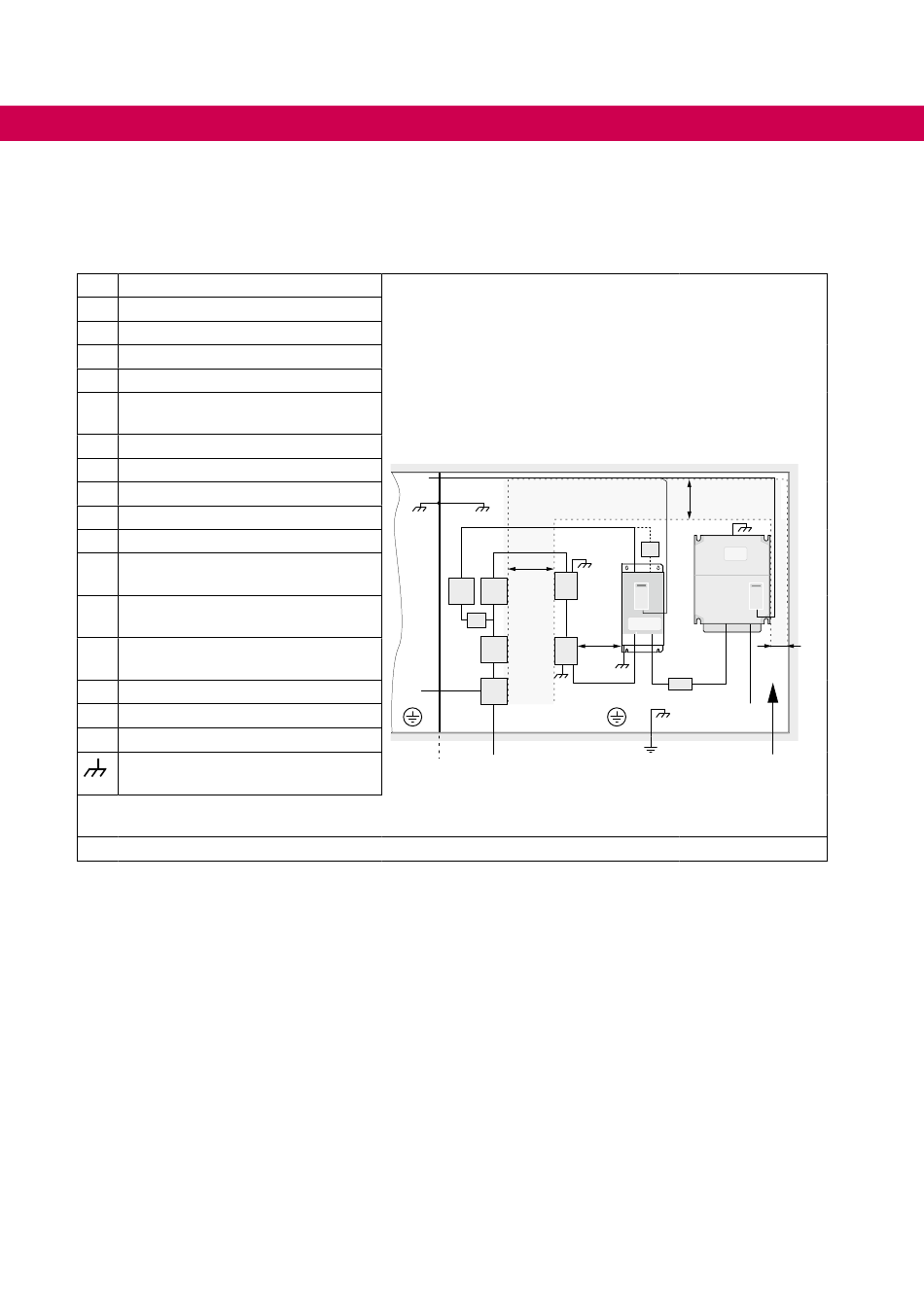

5.1 EMC-compatible control cabinet installation

1a Mains fuse
1b Pre-charging fuse
2a Pre-charging contactor
2b Main contactor (before LCL filter)
3 EMC filter
4 AIC/LCL filter (if necessary integrat-
ed in 4)
5 COMBIVERT F5-AIC
5a If necessary external load-shunt
6 External DC fuses
7 Drive converter
8 Motor cable
9a Power unit equipotential bonding
with the housing earth
9b Protective Earth (PE) on the mount-
ing plate power circuit
9c Protective Earth (PE) on the mount-
ing plate control circuit
10 Mains connection power circuit
10a Mains connection control circuit
11 Control lines
Large area contact at the mounting
plate
Table 14: EMC-compatible control cabinet installation

5.2 Installation instructions

•
•
•
•
•
•
•
•
34
11
10a
9c
Control circuit
Stationarily install and earth COMBIVERT.
Allow for sufficient heat dissipation if installed in a dust-proof housing.
Install the COMBIVERT in an appropriate housing in accordance with the local reg-
ulations when operating it in explosion-endangered spaces.
Protect COMBIVERT against conductive and aggressive gases and liquids.
The AIC/LCL filter must be placed in the immediate vicinity of the AIC.
The drive converters must be placed in the immediate vicinity of the AIC.
The DC connection lines must be kept as short as possible.
The use of ferrites on the DC line is not permitted.
150 mm
3
2a
2b
1b
150 mm
4
1a
10
9b
Power circuit
150 mm
5a
7
5
30 mm
6
8
9a
Direction of the
cooling fins
