Side View - Steelcase Elective Elements Manual

®

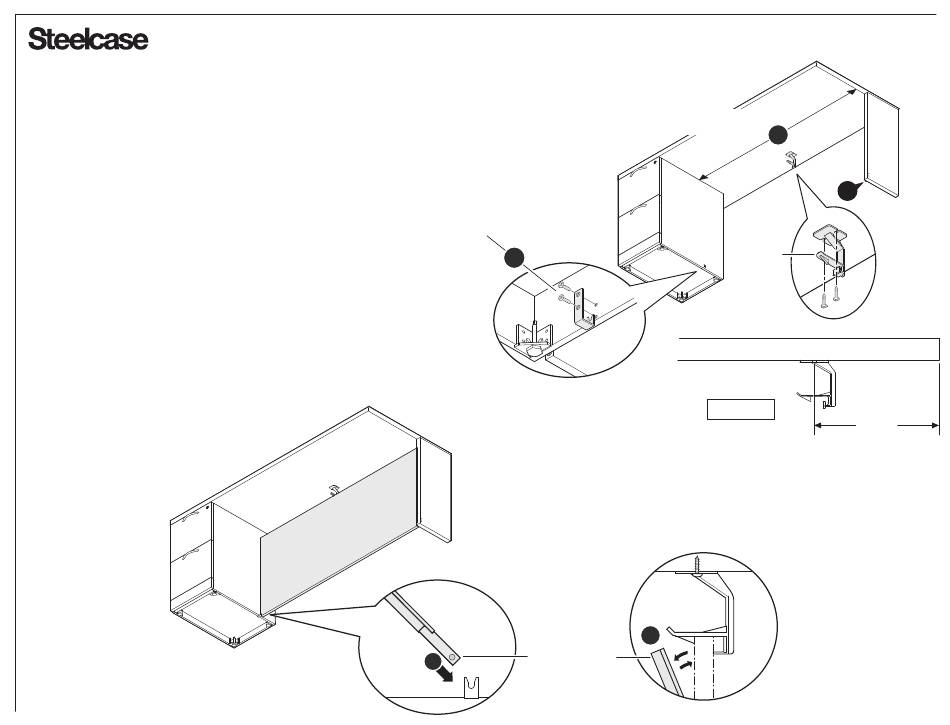

TECHNOLOGY MODESTY PANEL
1.
Route wires as needed.
2.
Install goose-neck catch in the
location shown.
3.
(a) Install a modesty panel bracket on
the bottom of the pedestal, and (b) on the
end panel.
4.
Place shoulder screws into brackets
on unit and pivot modesty panel up.
5.
Modesty panel will seat into the catch
when it's in the upright position.
NOTE: Bracket used on end panel is about 3/8" (9.5 mm) deep.
Bracket for 15" and 18" peds is about 1" (25 mm) deep.
Bracket for lateral file peds is about 1-1/4" (32 mm) deep.
Locate (2) pilot holes on pedestal
then install bracket using 8-15 x
13/32" truss head screws.
Note: use the 1-1/4" bracket
for a lateral file pedestal.
X
X
X
3a
Note: these locations (X) need to
move forward by 1-1/2" (38 mm)
when used with a Tech Zone.
4
MODESTY PANEL
Center catch side to
side in kneespace.
2
GOOSE
NECK
CATCH

SIDE VIEW

5
3b
8-1/8"
(206 mm)
Locate from rear
of worksurface and
and drill (2) pilot holes
Page 9 of 9
939500245 Rev E
