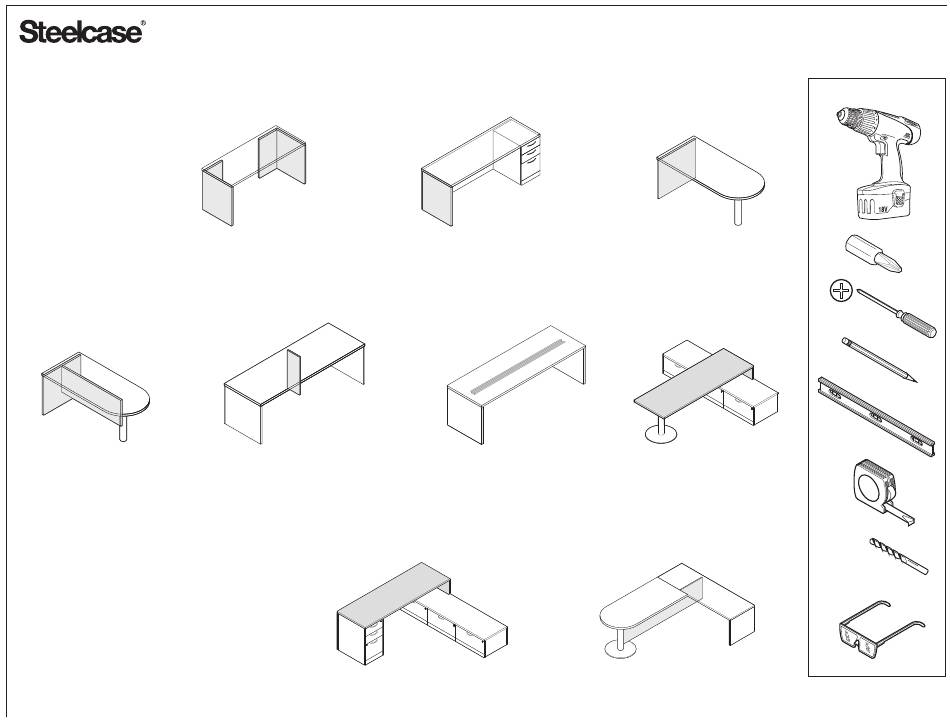

Extended T-Shape

End Panel

(page 10)

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

Grand Rapids, MI 49501

U.S.A.

Printed in U.S.A.

Freestanding Worksurfaces and Worksurface Supports

L-Shape End Panel

(Page 2)

Center Support Panel

(page 12)

11" High L-Shape End Panel

used with 15-1/2" Storage

(page 18)

Elective Elements, Garland, Walden -

End Panel/Full Height

Modesty Panel

(Page 4)

Worksurface Brace

(page 13)

2/3 Height Modesty Panel used

with a Run-Off Worksurface

(page 22)

T-Shape End Panel

(page 8)

T-Shape End Panel

used with 15-1/2" Storage

(page 14)

DRILL BIT

1/8"

Page 1 of 23

939500246 Rev F

Need help?

Do you have a question about the Elective Elements Freestanding Worksurface and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase Elective Elements Freestanding Worksurface

Page 1 (page 10) (page 14) If you have a problem, question, or request, call DRILL BIT your local dealer, or Steelcase Line 1 at 1/8" 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 L-Shape End Panel Carefully turn worksurface over onto clean, soft surface. CONNECTING Insert (3) shoulder BOLT CLIP screws into the holes on the panel (a) as shown. Align panel (b) with panel (a) (3a) and insert the shoulder screws into the clips (3b) located in panel (a).
Page 3 Lower panels (a and b) onto the connecting bolts located in worksurface (c). ARROW POINTING IN Insert (3) cam locks into the holes on DIRECTION OF THE CONNECTING BOLT HEAD the panel (a) (6a), making sure the arrow on the cam lock is pointed toward the connecting bolt (6b).
Page 4 SHOULDER SCREW End Panel/Full Height Modesty Panel Carefully turn worksurface over onto clean, soft surface. Insert (3) shoulder CONNECTING screws into the holes on BOLT the modesty panel (a) as shown. Insert (7) connecting bolts into the holes in the worksurface (c) as shown.
Page 5 Lower modesty panel (a) onto connecting bolts in worksurface (c). Insert (4) cam locks into the holes on modesty panel (a) (5a), making sure the arrow on the cam lock is pointed toward the connecting bolt (5b). Turn cam lock with screwdriver 1/4 turn to secure connecting bolt (5c).
Page 6 Align panel (b) with modesty panel (a) and worksurface (c) (6a) simultaneously. Insert the (3) shoulder screws on the modesty panel (a) into the clips on the panel (b) (6b) With shoulder screws inserted into clips push panel (b) downward (6c) until shoulder screws are secured (6d).
Page 7 Insert (3) cam locks into the holes on the panel (b) (7a), making sure the arrow on the cam lock is pointed toward the connecting bolt (7b). Turn cam lock with screwdriver 1/4 turn to secure connecting bolt (7c). Using (2) people, flip unit over and adjust glides.
Page 8 T-Shape End Panel CONNECTING BOLTS Carefully turn worksurface over onto soft, clean material. Insert (2) connecting bolts into holes in worksurface as shown. Lower end panel onto connecting bolts, ensuring that it is fully seated to worksurface. Page 8 of 23 939500246 Rev F...
Page 9 Insert (2) cam locks into panel and secure with a half turn shown. TIP: Arrow pointing in direction CAM LOCK of the connecting bolt head. Attach corner support bracket by first installing (6) #10 x 1.075" screws into pilot holes in back panel. Secure corner support bracket to worksurface with (6) #10 x 1.075"...
Page 10 Extended T-Shape End Panel Carefully turn worksurface over onto clean, soft surface. Insert (2) shoulder screws CONNECTING into the holes on the panel (a) BOLT as shown. Align panel (b) with panel (a) (3a) and insert the shoulder screws into the clips (3b) located in panel (a).
Page 11 Lower panels (a and b) onto the connecting bolts located in worksurface (c). Insert (2) cam locks into the holes on the panel (a) and insert (2) cam locks into the holes on the panel (b) (6a), making sure the arrow on the cam lock is pointed toward the connecting bolt (6b).
Page 12 L-BRACKET Center Support Panel L-BRACKET Carefully turn worksurface over onto clean, soft surface. Install L-bracket to one side of NO MORE THAN 60" the center support panel (a) using FROM END (5) screws (2a). PANEL (B) Install a second L-bracket to the other side of the center support NO MORE panel (a) using (5) screws (2b).
Page 13 Worksurface Brace Carefully turn worksurface over onto clean, soft surface. Position brace in approximate center on underside of worksurface (2a). Attach brace using the screws provided(2b) . Page 13 of 23 939500246 Rev F...
Page 14 T-Shaped End Panel used with 15-1/2" Storage Insert (2) shoulder screws into panel (a). Align panel (b) with panel (a). Insert the (2) shoulder screws on panel (a) into the clips located in the end of panel (b). SHOULDER SCREW With shoulder screws inserted into clips push panel (b) downward (4a) until shoulder screws are...
Page 15 CONNECTING BOLT Carefully turn worksurface over onto clean, soft surface. Insert (3) connecting bolts into the holes in the worksurface (c) as shown. Lower panels (a and b) onto the connecting bolts located in worksurface (c). Insert (2) cam locks into the holes on the panel (a) (8a), making sure the arrow on the cam lock is pointed toward ARROW POINTING IN...
Page 16 Insert (1) cam lock into the hole on the panel (b) and (2) cam locks into holes on the panel (a)(9a), making sure the arrow on the cam lock is pointed toward the connecting bolt (9b). Turn cam locks with screwdriver 1/4 turn to secure connecting bolts (9c).
Page 17 Using (2) people, flip worksurface (c) over and lower onto cabinet (d) making sure the cam pins in cabinet (d) are inserted into the cam locks in panel (a). Insert cam locks into the holes on the panel (a) 12a), making sure the arrow on the cam lock is pointed toward the connecting bolt (12b).
Page 18 11" High L-Shape End Panel used with 15-1/2" Storage Insert (2) shoulder screws into panel (a). Align panel (b) with panel (a). Insert the (2) shoulder screws on panel (a) into the clips located in the SHOULDER end of panel (b). SCREW With shoulder screws inserted into clips, push panel (b) downward (4a)
Page 19 CONNECTING BOLT Carefully turn worksurface over onto clean, soft surface. Insert (4) connecting bolts into the holes in the worksurface (c) as shown. Lower panels (a and b) onto the connecting bolts located in worksurface (c). Insert cam locks into the holes the panel (a) (8a), making sure the on the cam lock is pointed toward the connecting bolt (8b).
Page 20 Note: the next step places the upper top at a 3/4" (19 mm) gap from the edge of the lower top. If this is not the desired location, modifications will be required by relocating the cam bolts. DIM. A DIM. A 18"...
Page 21 Using (2) people, flip worksurface (c) over and lower onto cabinet (d) making sure the cam pins in cabinet (d) are inserted into the cam locks in panel (a). Insert cam locks into the holes on the panel (a) 12a), making sure the arrow on the cam lock is pointed toward the connecting bolt (12b).
Page 22 2/3 Height Modesty Panel Used with a Run-off Worksurface Locate (2) "L" brackets on the modesty panel (a) as shown. Attach "L" brackets to modesty panel using three (3) screws per bracket. "L" BRACKETS Insert two (2) connecting bolts into the holes in the worksurface (c) as shown.
Page 23 Raise modesty panel to underside of worksurface making sure the connecting bolts located in worksurface engage the holes in the modesty panel. Insert (2) cam locks into the holes on the modesty panel (5a), making sure the arrow on the cam lock is pointed toward the connecting bolt (5b).
