If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2018 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

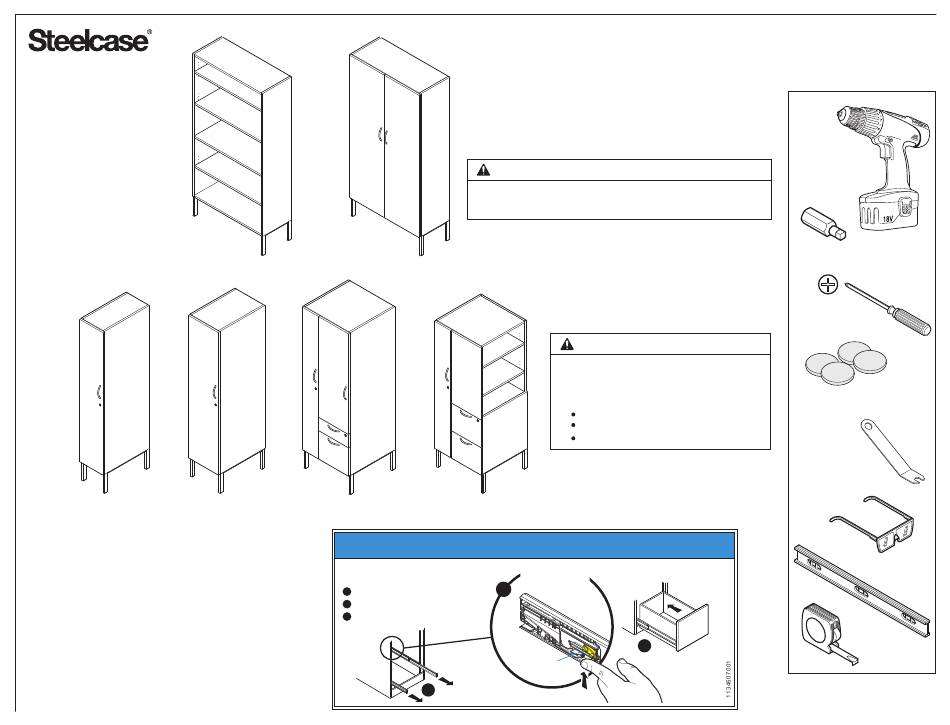

WARNING: TIP OVER HAZARD
Bookcases must be placed against a building wall
or ganged back to back with another similar unit.
WARDROBES
NOTICE
Steps for correct installation of
soft close drawers
2
1
Pull LH and RH suspensions to full extents
2
Find and disengage rear posts, LH and RH
3
Align drawer suspensions and install
1
Elective Elements - Leg Base
Towers, Bookcases, and Wardrobes
WARNING: TIP OVER HAZARD
Towers must be attached to a
pedestal cabinet or an end panel.
DO NOT:
pull down on doors
move unit while loaded
move unit by lifting from its top
Soft close mechanism
can be damaged if this
step is skipped.
3
RH post is
shown here
in yellow
SQUARE DRIVE
FURNITURE SKATES
GLIDE
ADJUSTMENT
Page 1 of 5
939568006 Rev B
