If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2006 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.
Elective Elements - Paper Organizer

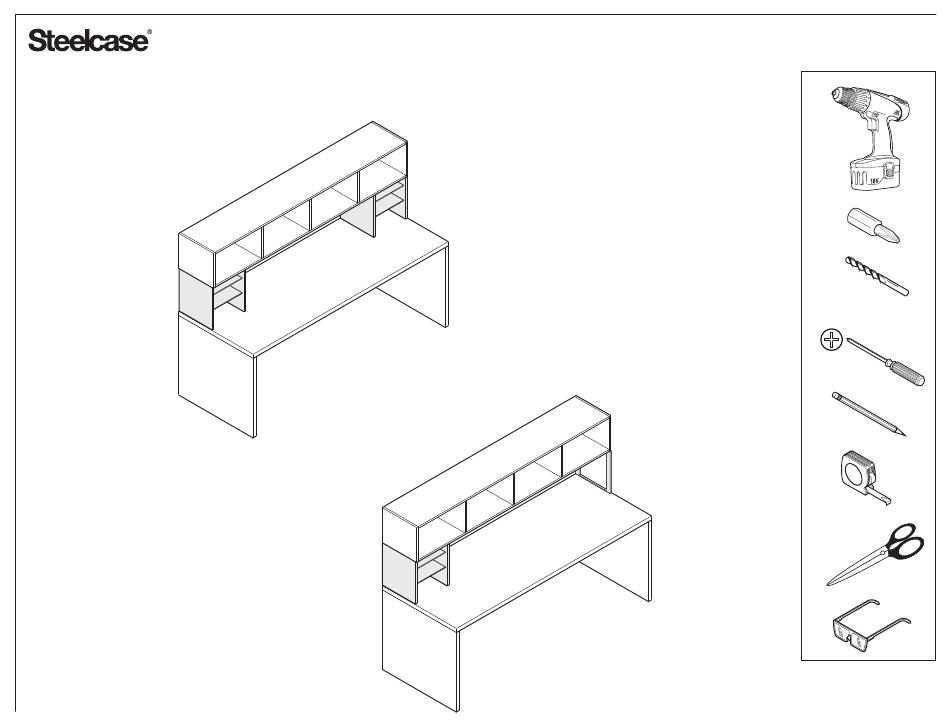

Paper Organizers supporting
an open overhead cabinet
installed on a desk
(shown in this direction).
Paper Organizer and
single hutch support.
DRILL BIT
5/32"
Page 1 of 7
939500614 Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Elective Elements Paper Organizer
Summary of Contents for Steelcase Elective Elements Paper Organizer
- Page 1 Paper Organizer and single hutch support. If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ASSEMBLE ORGANIZERS Insert (female) pieces of the quick dowels into holes in the back panel of organizer (6 each side). Note: taller units will use more quick dowels. Install (male) pieces of the quick dowels into holes in an end panel of organizer (6 each panel). Repeat the procedure for the other end panel.
- Page 3 Press the end panels onto the back panel so that the quick dowel components are securely engaged. Cut and install felt padding on bottom and top surfaces of assembled panels. Insert shelf support pins into holes in end panels. Lower adjustable shelves onto pins. FELT PADDING Page 3 of 7 939500614 Rev B...
- Page 4 14-9/16" (370 mm) INSTALL ORGANIZERS ONTO WORKSURFACE 3/8" 2-1/16" (10 mm) (52 mm) REAR Determine locations for modeez screws. Drill (8) pilot holes 1/2" (12.7mm) deep 12-7/16" (2a). Install (8) modeez screws (2b). (316 mm) WORKSURFACE TOP Drill (4) pilot holes per end, 5/32"...
- Page 5 Position organizers above the worksurface so that modeez screws are located to the front of female fasteners. FEMALE FASTENER Slide organizers in direction of arrow until modeez fasteners are securely engaged over screws. MODEEZ SCREW Page 5 of 7 939500614 Rev B...
- Page 6 INSTALL OVERHEAD CABINET Refer to the drawing to locate modeez screws on the bottom surface of the overhead cabinet. 14-9/16" (370 mm) Drill (8) pilot holes 1/2" (12.7mm) deep (2a). 3/8" Install (8) modeez screws (2b). (10 mm) BOTTOM VIEW OF CABINET BOTTOM CABINET BOTTOM 12-7/16"...
- Page 7 Position overhead cabinet above the organizers so that modeez screws are located to the front of female fasteners. Slide organizers in direction of arrow until modeez fasteners are securely engaged over screws. FEMALE FASTENER MODEEZ SCREW Page 7 of 7 939500614 Rev B...
