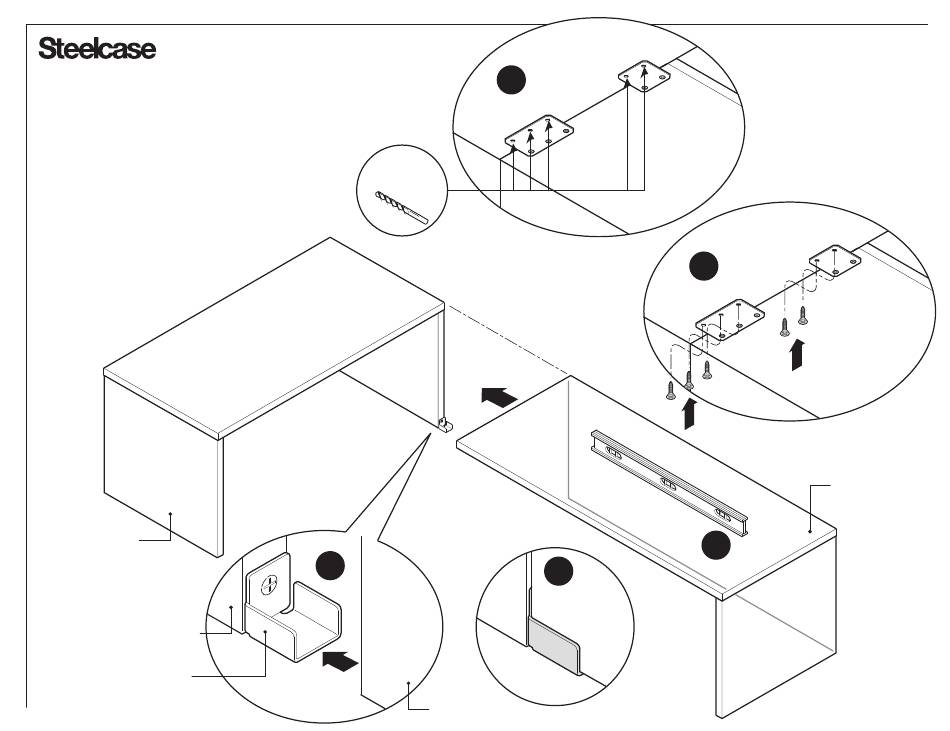

10.
Align modesty panel on return with panel
to panel bracket (10a) and slide modesty panel
into bracket (10b).
11.
Locate brackets on underside on return
and drill (5) pilot holes (11a). Secure
brackets to adjoing unit by attaching
with five (5) screws (11b).
12.
Level unit.
ADJOINING UNIT
ADJOINING UNIT
PANEL TO PANEL BRACKET
DRILL BIT
(1/8")
10a
RETURN
11a
10b
11b
RETURN
12
Page 6 of 9
939500245 Rev E
