3.

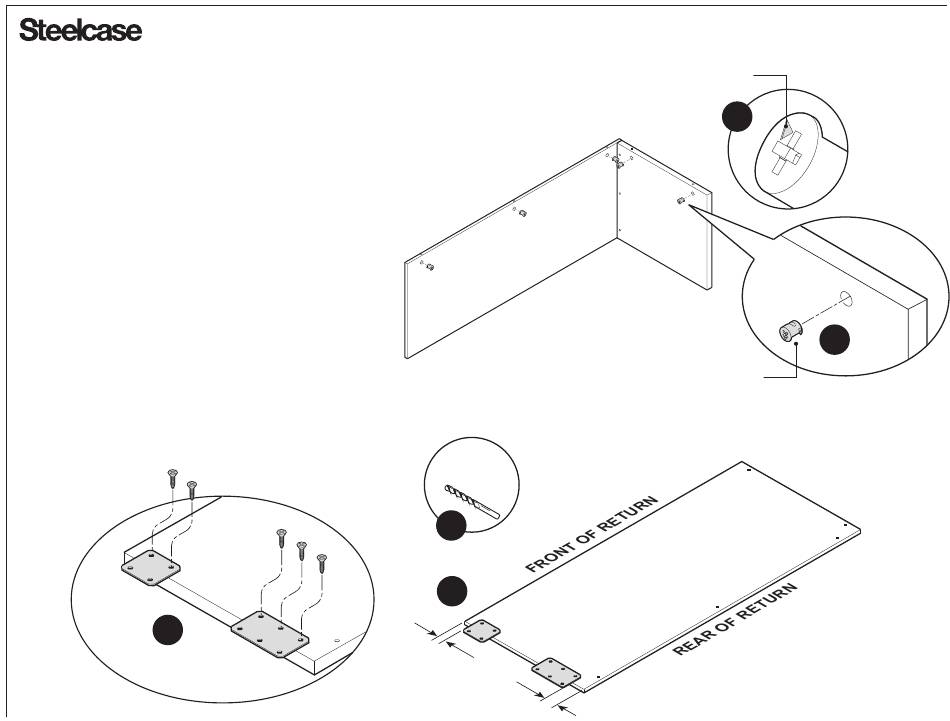

Insert (5) cam locks into the holes on
the modesty panel and end panel (3a),
making sure the arrow on the cam lock is
pointed toward the connecting bolt (3b).
4.
Turn worksurface over onto carpet or
other clean, soft material.
5.
Locate brackets on underside as
shown (5a). Drill (5) pilot holes (5b).
Secure brackets to return by attaching
with (5) screws (5c).
5c
ARROW POINTING IN DIRECTION OF

DRILL BIT

(1/8"
5b
5a
1"
2"
THE CONNECTING BOLT HEAD
3b
CAM LOCK
3a
Page 3 of 9
939500245 Rev E
