4.

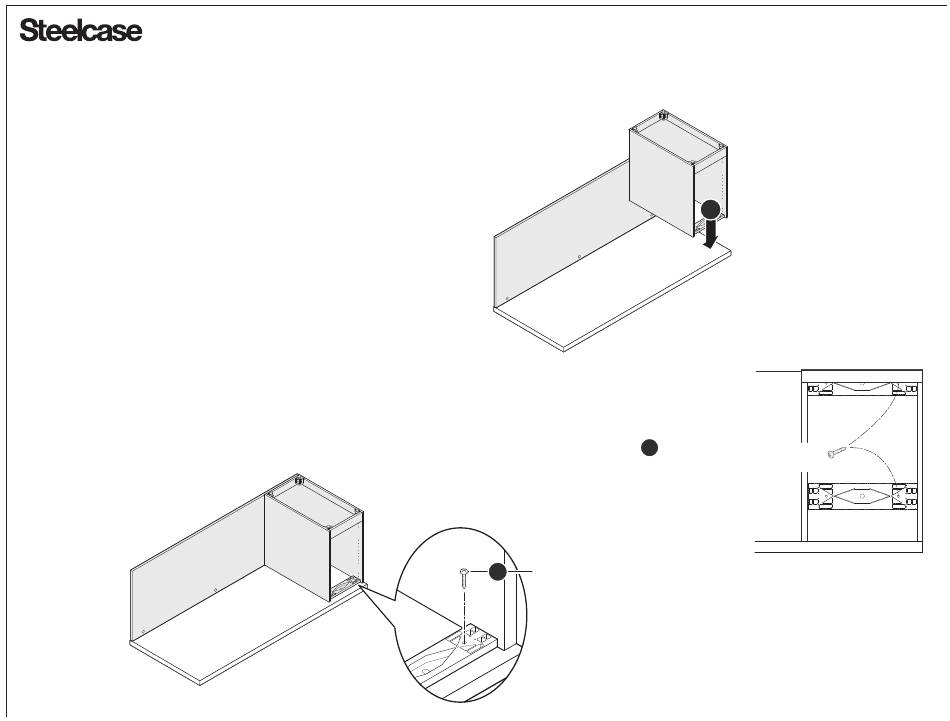

Position pedestal onto worksurface so
that it is flush to the modesty panel and
edge of worksurface.
Refer to assembly direction 939500237 for
more detailed information if required.
5.
Secure pedestal to worksurface.
6.
Secure modesty panel to pedestal
through holes in back panel.
7.
Carefully turn assembly over and
reinstall drawers.
6
Secure modesty panel to back
panel of pedestal with (2) screws.
5
(4) screws through
holes in stretchers,
1-1/4" pan head
4

FRONT VIEW

Page 8 of 9
939500245 Rev E
