Off-Module End Panel
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
© 2006 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

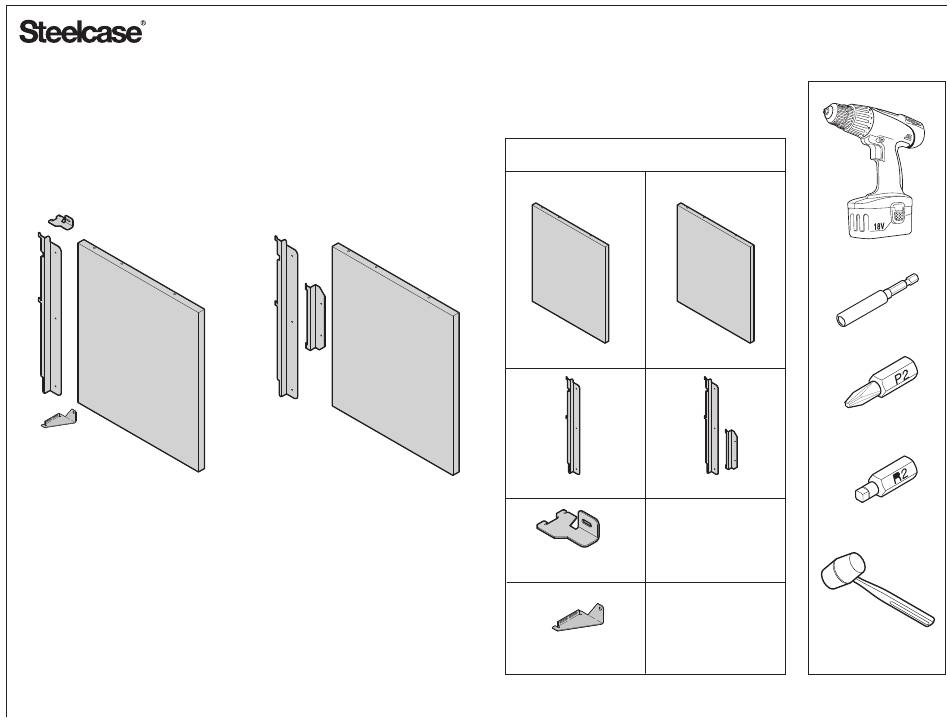

Elective Elements - On-Module and Off-Module End Panel

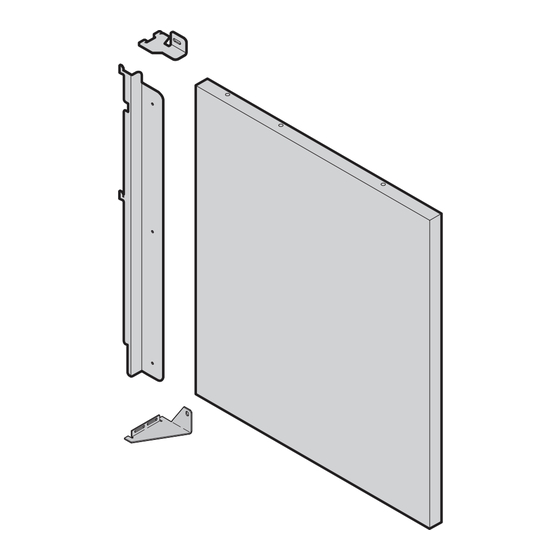

On-Module End Panel
Components
Off-Module
On-Module
End Panel Assembly
End Panel Assembly
Filler
Bracket-Filler
Bracket-Mounting
#2 Phillips
Drive Bit
Filler
#2 Square
Drive Bit
Page 1 of 8
939500242 Rev D

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elective Elements On-Module End Panel and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase Elective Elements On-Module End Panel

  • Page 1 #2 Square Drive Bit If you have a problem, question, or request, call Bracket-Filler your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 On-Module End Panel Insert end panel bracket into slots in wall panel. Position end panel to bracket. Align security bracket with end panel bracket and end panel (using holes provided), then secure with (3) screws. SECURITY BRACKET Page 2 of 8 939500242 Rev D...
  • Page 3 CONNECTING BOLT Insert (3) connecting bolts into the holes on underside of top. Flip top over (5a) and place onto the on-module cantilever and end panel (5b). Make sure the connecting bolts are inserted into the corresponding holes. Page 3 of 8 939500242 Rev D...
  • Page 4 Insert (3) cam locks into the holes on the end panel (6a), making sure the arrow on the cam lock is pointed toward the connecting bolt (6b). Turn cam lock with screwdriver 1/4 turn to secure connecting bolt (6c). ARROW POINTING IN DIRECTION OF THE CONNECTING BOLT HEAD Attach worksurface to on-module cantilever using four (4) bolts.
  • Page 5 Off-Module End Panel Assemble end panel, filler and bracket together. Remove base cover from frame. Mark bottom of frame the distance from side of frame to inside of end panel (3a). Attach bracket using two (2) self-drilling screws centered in slots. Back off screw a 1/2 turn so the bracket can move freely from side to side for alignment of end panel (3b).
  • Page 6: End Panel

    Reinstall base cover onto frame. Remove screw from end panel bracket (5a). Insert bracket into slots of the frame (5b). Fasten bracket to end panel using previously removed screw (5c). PANEL END PANEL Page 6 of 8 939500242 Rev D...
  • Page 7 CONNECTING BOLT Insert (3) connecting bolts into the holes on underside of top. Flip top over (7a) and place onto the end panel (7b). Make sure the connecting bolts are inserted into the corresponding holes. Page 7 of 8 939500242 Rev D...
  • Page 8 Insert (3) cam locks into the holes on the end panel (8a), making sure the arrow on the cam lock is pointed toward the connecting bolt (8b). Turn cam lock with screwdriver 1/4 turn to secure ARROW POINTING IN DIRECTION OF THE CONNECTING BOLT HEAD connecting bolt (8c).
