Steelcase Elective Elements Storage Manual

For dual-sided & continuous top frameone bench end counter above applications

Hide thumbs Also See for Elective Elements Storage:

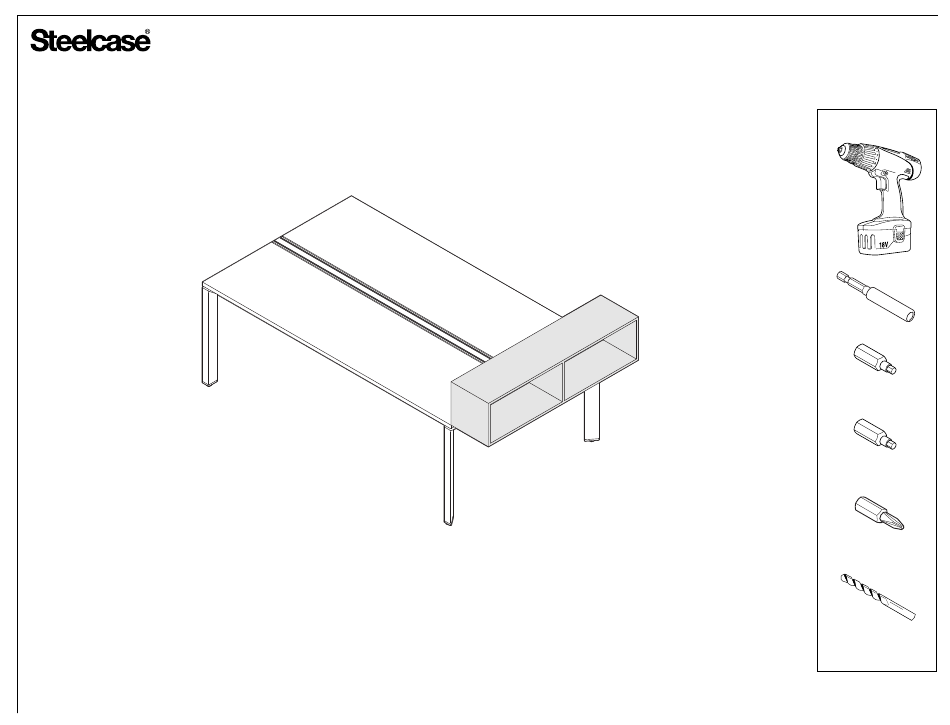

Elective Elements

™

Storage for Dual-Sided & Continuous Top

FrameOne

™

Bench End Counter Above Applications

3mm and 5mm

HEX DRIVES

1/4"

HEX DRIVE

#2 PHILLIPS DRIVE

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

17/64" DIA.

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2013 Steelcase Inc.

Grand Rapids, MI 49501

Page 1 of 4

U.S.A.

939502153 Rev C

Printed in U.S.A.

Table of Contents

Need help?

Do you have a question about the Elective Elements Storage and is the answer not in the manual?

Page 1 HEX DRIVE #2 PHILLIPS DRIVE If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, 17/64"...
Page 2 Above End Counter Bracket Assembly Set cabinet on its top so that bottom slot faces upward. Orient two brackets as shown, relative to the single slot, and fasten to the bottom of the cabinet with four #10 x 5/8” screws each. Bottom slot Page 2 of 4 939502153 Rev C...
Page 3 If FrameOne desk has worksurfaces already installed, remove them. Loosely attach clamping bracket to cantilever using bolt through the bent top flange. Note that the bottom of the clamp bracket should grab the bottom edge of the triangular leg tube. Slide cantilever over leg so that it captures the triangular desk frame tube.
Page 4 U-channel Adjust set screws on cantilevers (see Step 12) to be flush with the bracket. Set U-channel onto cantilevers (centered), open side up. Set cabinet onto cantilevers and U-channel so that the cabinet mounting bracket slots engage both cantilever I-shape plates, locking the back down, and the U-channel falls into the slot in the cabinet bottom.
