Steelcase Elective Elements Manual page 2
Freestanding return
Hide thumbs
Also See for Elective Elements:
- Assembly directions (6 pages) ,
- Manual (4 pages) ,
- Assembly directions (4 pages)
Table of Contents
Advertisement
®

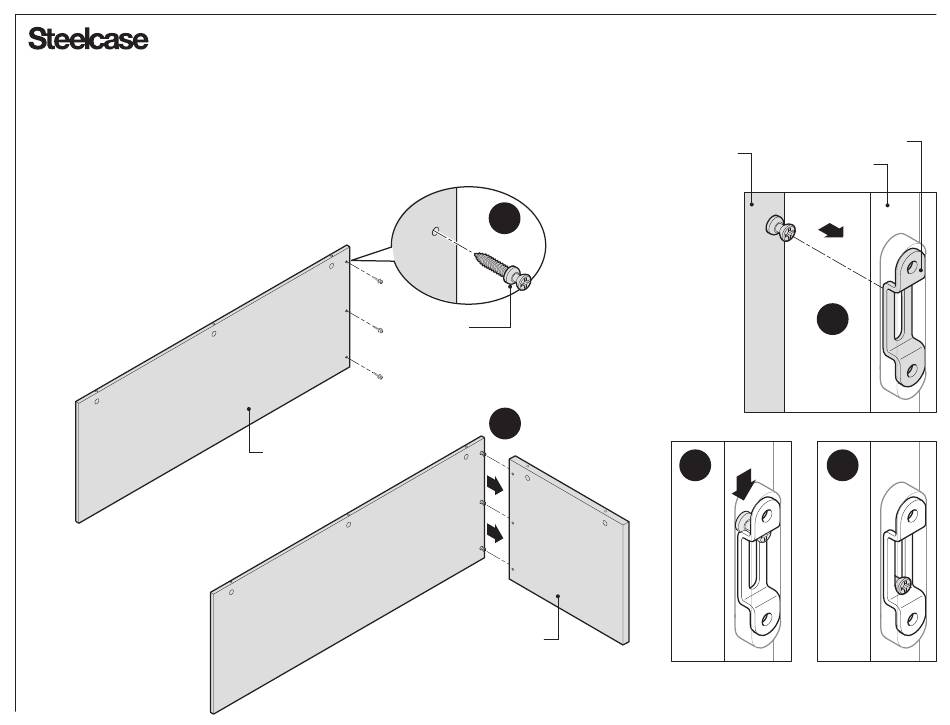

FULL MODESTY PANEL
1.
Insert (3) connecting bolts into the holes
on the modesty panel as shown.
2.
Align modesty panel with end panel (2a)
and insert the connecting bolts into the clips
(2b) With connecting bolt inserted into clip
push modesty panel downward (2c) until
connecting bolt is secured (2d).
SHOULDER
SCREW
MODESTY PANEL
MODESTY PANEL
1
2a
END PANEL
END PANEL
2b
2c
2d
939500245 Rev E
CLIP
Page 2 of 9
