Elective Elements - Glass Modesty Panel
SQUARE DRIVE
GLIDE
ADJUSTMENT

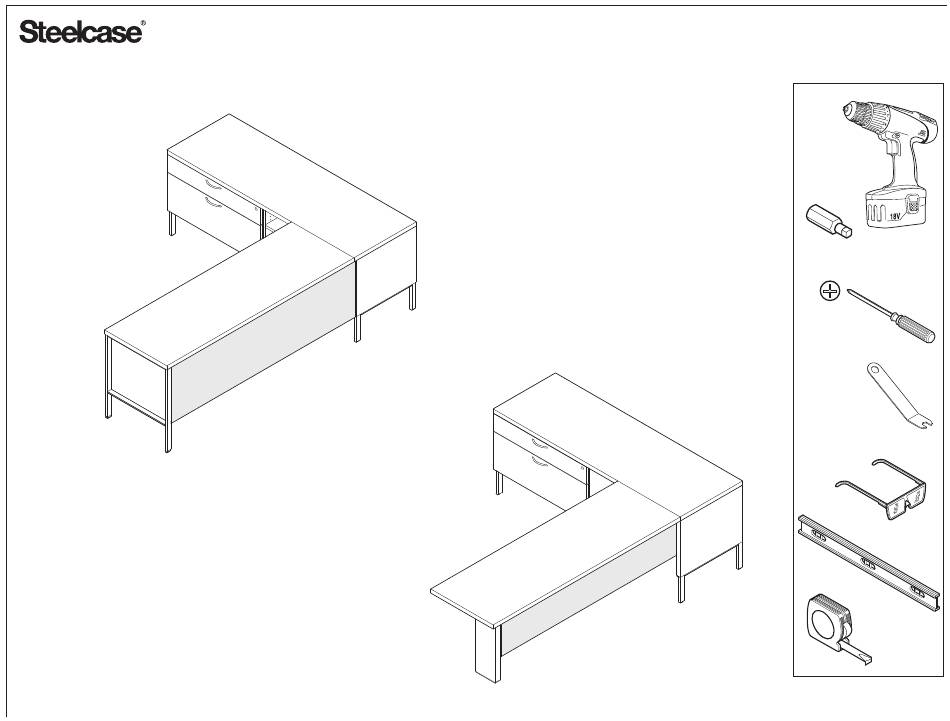

GLASS MODESTY PANEL
WRENCH
on Full Storage and Free End Panel
(refer to page 2)
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
GLASS MODESTY PANEL
© 2014 Steelcase Inc.
on Rectangular Column Leg
Grand Rapids, MI 49501
(refer to page 7)
Page 1 of 10
U.S.A.
939568005 Rev A
Printed in U.S.A.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Elective Elements Glass Modesty Panel
Summary of Contents for Steelcase Elective Elements Glass Modesty Panel
- Page 1 Full Storage and Free End Panel (refer to page 2) If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.
-
Page 2: End View
GLASS MODESTY PANEL on Full Storage and Free End Panel Carefully turn table top over onto clean, soft surface then install Gate Leg (refer to assembly direction # 939568007). a) Locate bumper on leg as shown. b) Attach by peeling paper backing and press into place. -
Page 3: Modesty Panel
Slide modesty panel into slot on bumper and adjust modesty panel location to leg to plumb panel to leg in both directions. MODESTY PANEL Page 3 of 10 939568005 Rev A... - Page 4 Loosen end screws to provide angular adjustment (2 or 4, dependant on size of panel) as shown. #10 x .500" screws Attach modesty panel to worksurface #10 x .875" screws (2) screws per gusset (9) screws per gusset using screws provided as shown. Page 4 of 10 939568005 Rev A...
-
Page 5: Drill Bit
2.00" Install a pair of mounting brackets (50 mm) onto the underside of top of adjoining unit. Position brackets (a), drill pilot DRILL BIT holes (b), then secure with screws (1/8" provided (c). a) Locate bumper on leg as shown. b) Attach by peeling paper backing and 1.00"... - Page 6 TIP: Glide adjustment may be necessary to improve headset alignment. Bottom view showing adjustment of screws to help align modesty panel. NOTE: Glide adjustment tool is available through Steelcase Service Parts (part number Y565727SR) Page 6 of 10 939568005 Rev A...
- Page 7 GLASS MODESTY PANEL on Rectangular Column Leg Carefully turn worksurface over onto clean, soft surface. Determine location of base. NOTE: base may be located within 21” from end of worksurface, but must be centered side to side. Lower base into place. Secure with screws provided.
- Page 8 Place spacers under BUMPER gussets to determine location of Bumper. a) Locate bumper on leg as shown. b) Attach by peeling paper backing and MODESTY PANEL press into place. c) Locate spacers under gussets to provide clearance of metal mounting plate on column leg. Slide modesty panel into slot in bumper.
- Page 9 Install a pair of mounting brackets onto the underside of top of adjoining unit. Position brackets (a), drill pilot holes (b), then secure with screws provided (c). Carefully turn glass modesty panel assembly over and attach to TIP: Modesty Panel may overhang the worksurface, depending on the adjacent unit.
- Page 10 After glide is adjusted, slide glide cover back down. Adjust column height vertically as shown. NOTE: Glide adjustment tool is available through Steelcase Service Parts (part number Y565727SR) Cone-point Set Screw use an allen wrench to loosen set screw, then adjust column height.
