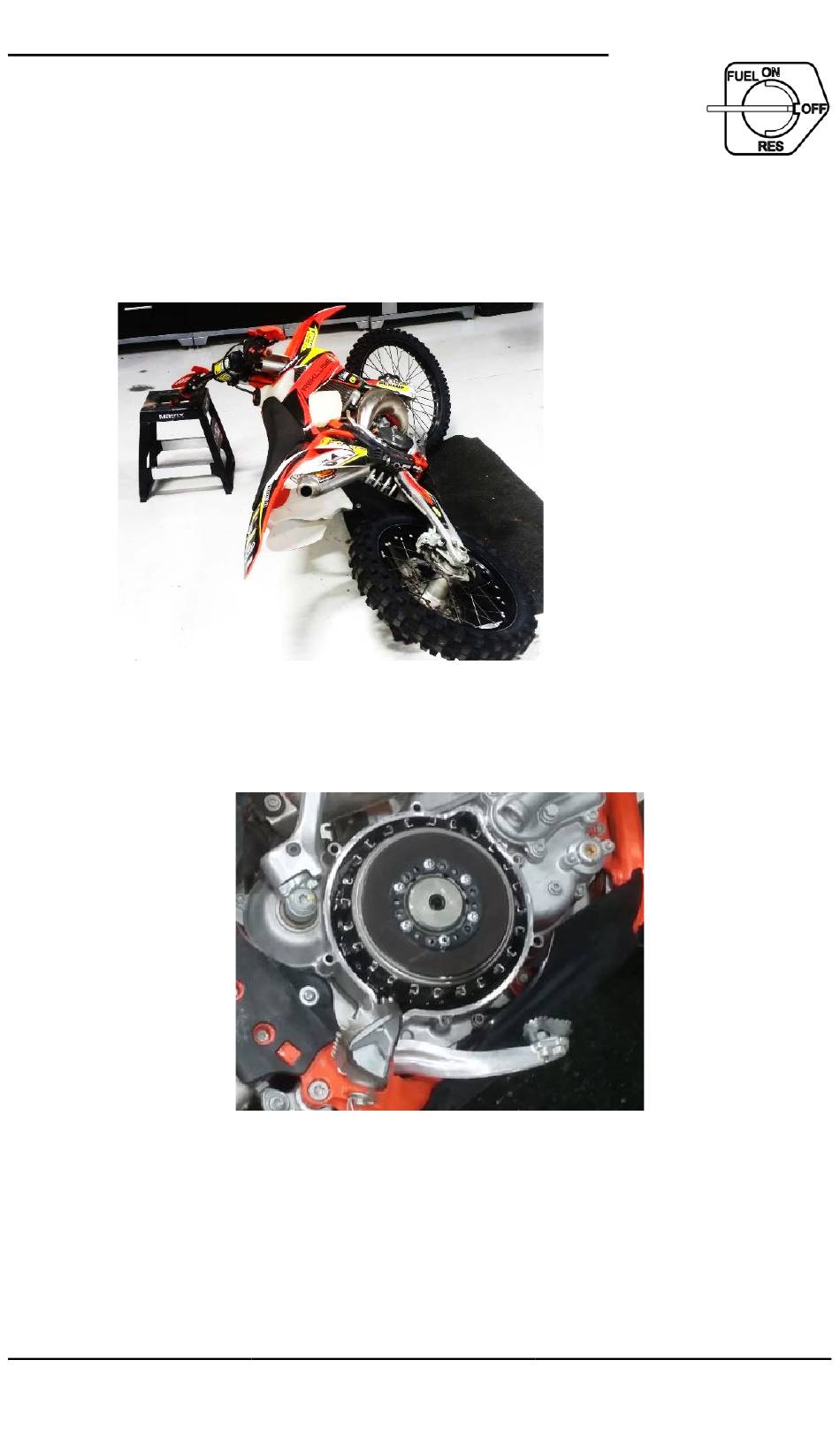

DISASSEMBLE THE CLUTCH
1. Turn the fuel petcock to "OFF" if applicable.
2. Lay the bike on its left side. Catch any fuel that might
drain in a suitable container.
3. Use an 8 mm socket to remove the clutch cover. If your
bike has an oil plug, loosen the plug before removing the
cover.
4. Remove the following OE parts. When removing the
Bellville spring, make sure to note the orientation of the
spring. See following picture for reference.
Doc ID: 191-7913A
Doc Rev: 082018
Pg. 7
