Rekluse RadiusCX Installation & User Manual page 17

5.
Place the OE Belleville spring onto the slider ring, with the
rounded dome side facing up.
NOTE: The outer edge of the Bellville spring will make
contact with the slider ring. If it does not, the Bellville spring
is upside down.

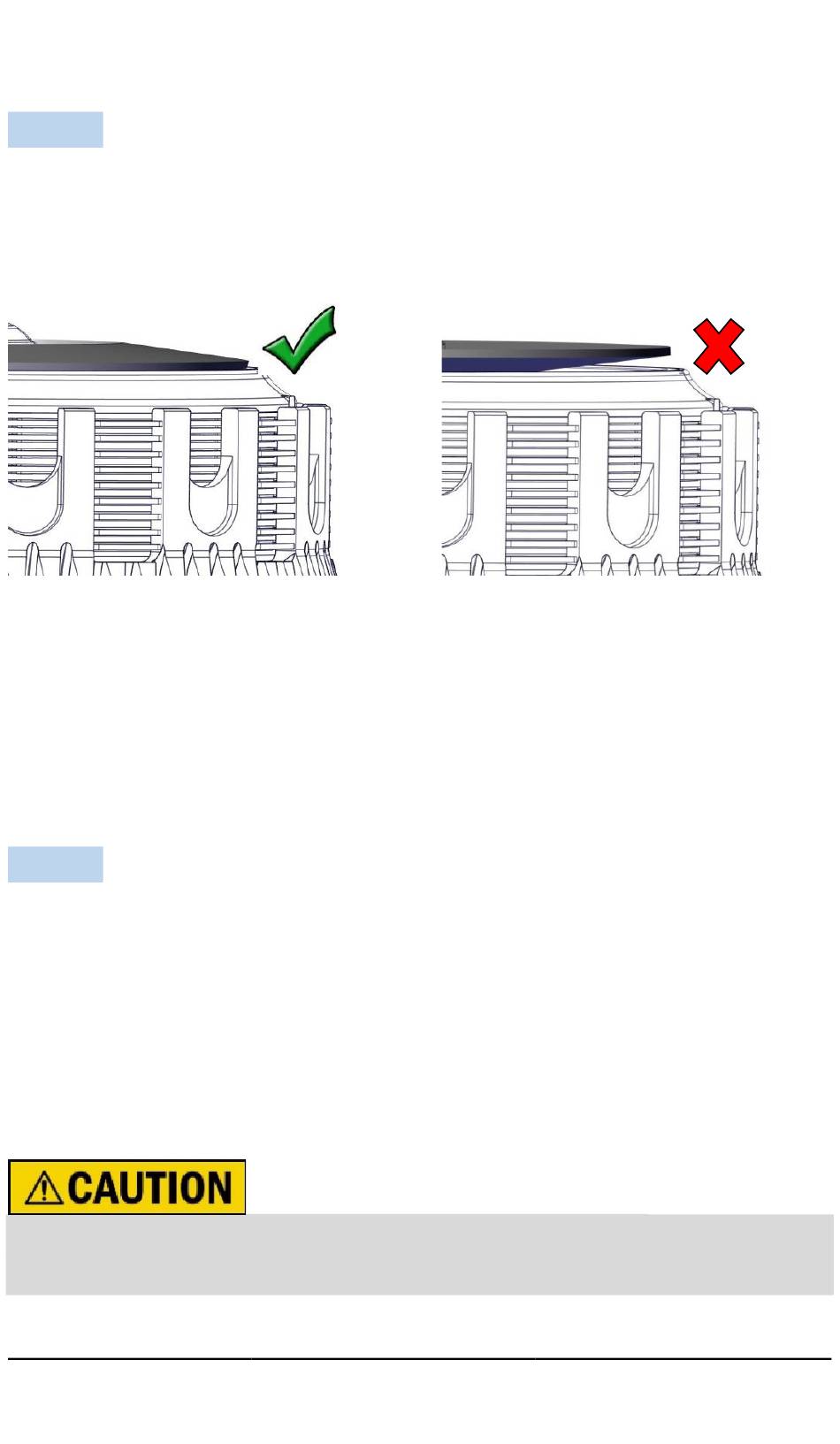

Correct – The Belleville
spring sits flat against the
slider ring
.
6.
Install the OE pressure ring, flat side up.
NOTE: There are 3 possible settings on the OE pressure
ring. Please refer to the Setup Sheet at the back of the
manual for optimized pressure ring setting. For a simple
setting, set it to setting II (4-strokes and 2017 + 2-
strokes) or X (pre 2017 2-strokes). In most cases, this is
the best starting point for the clutch.
7.
Install the Rekluse pressure plate screws.
Do not reuse the OE screws, or clutch cover
interference will occur!
Doc ID: 191-7913A
Doc Rev: 082018
Incorrect – The
Belleville spring is upside
down.
Pg. 17
