Configuration chart

ENGAGEMENT SETTING
Low
Medium
Medium High
High

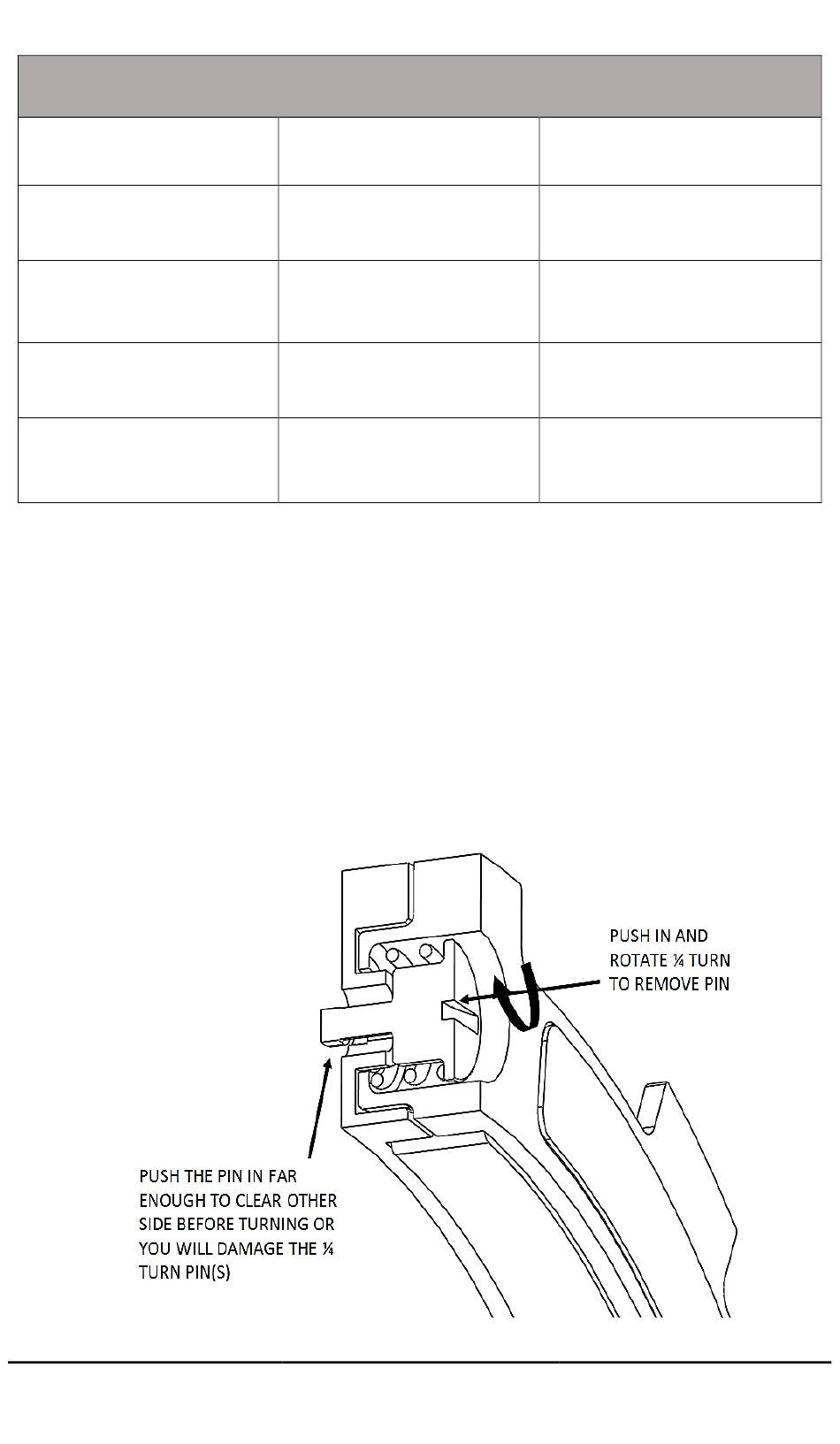

Changing the springs

1. Using a flat-blade screwdriver, push the ¼ turn pin in far
enough to clear the opposite side of the EXP to unlock
the pin.
2. With the pin still pushed past the base, turn 90° to
remove the pin and spring.
Pg. 44
250
6 Silver
3 Silver & 3 Red
NA
6 Red
Doc ID: 191-7913A
Doc Rev: 082018
350
3 Silver & 3 Steel
6 Silver
3 Red & 3 Silver
6 Red
