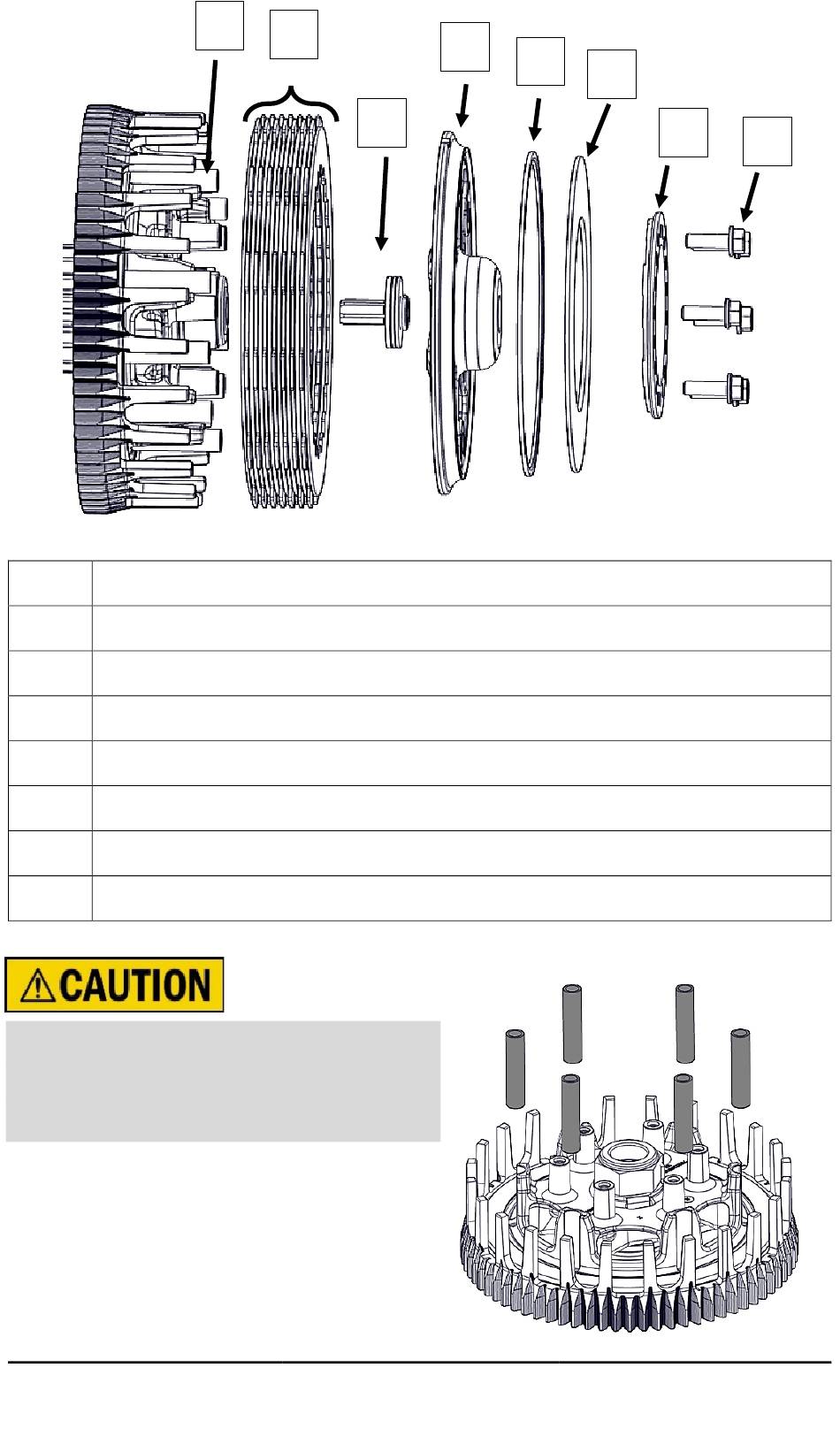

1

6 pressure plate screws

2

Spring ring

3

Belleville spring

4

Slider ring

5

Pressure plate

6

Throw-out bearing and washer

7

Clutch pack

8

6 Drive pins

Be careful that the drive pins

do not fall into the engine

while disassembling.

Pg. 8

8

7

Doc ID: 191-7913A

Doc Rev: 082018

5

4

6

3

2

1
