• Maintain adequate Free Play Gain. Check before every
ride and adjust if necessary.
• Repeat the break-in procedure anytime you replace the
EXP bases, Teflon pads, EXP wedges, or frictions disks.
Always soak friction disks or EXP bases in oil for at least
5 minutes before installing.
• Replace friction disks if they measure below
specifications listed on the attached Setup Sheet or if the
disks are glazed and/or burnt.
• Replace the drive plates if they show signs of excessive
heat.

Disk inspection examples

When inspecting the clutch pack, the following pictures can
be used as a reference. These are best viewed in color by
viewing this install document from
www.rekluse.com/support.

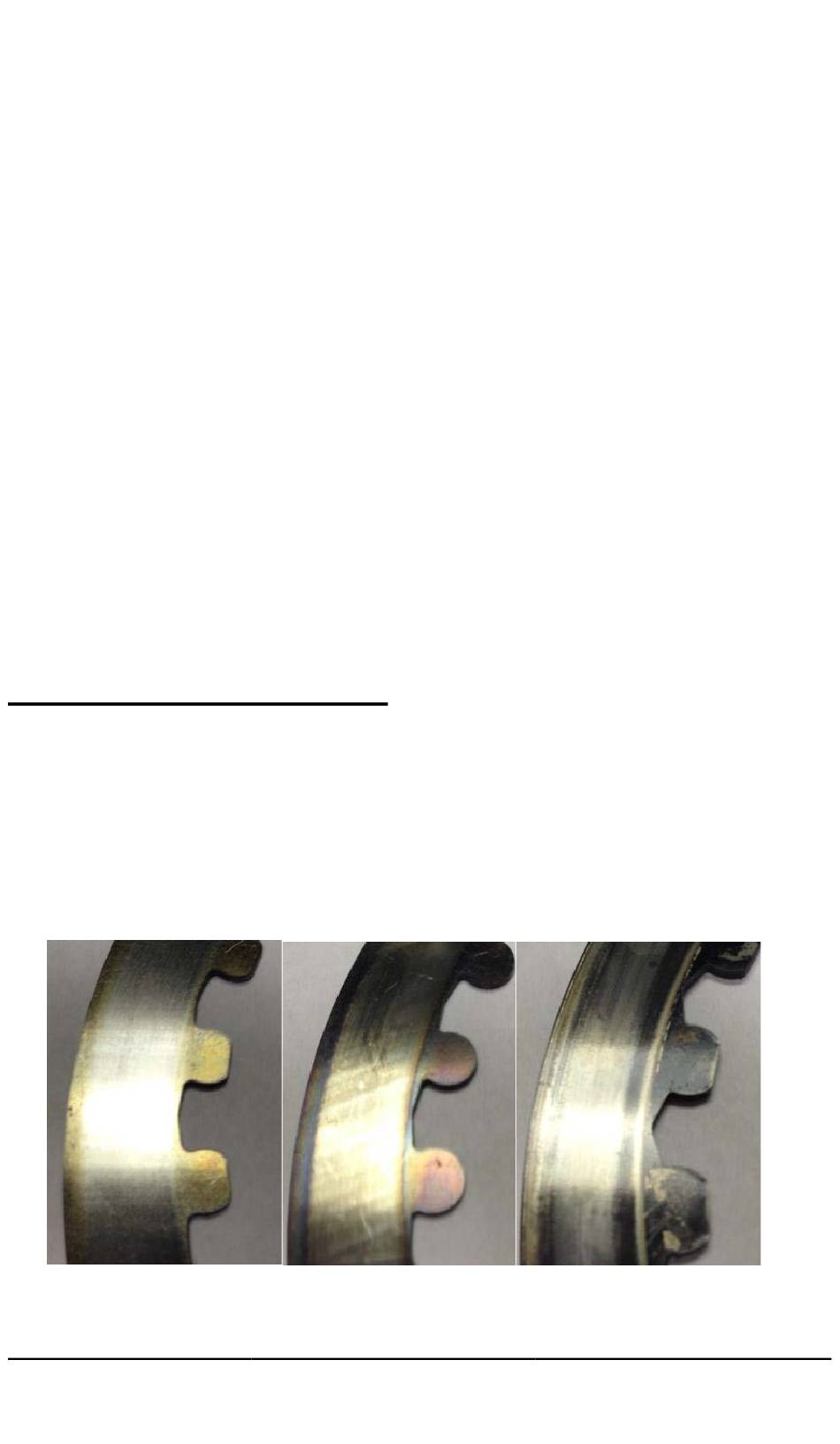

Drive Plates – If the clutch pack is getting high amounts of
heat, purple, blue, or black color can be seen on the drive
plate teeth. See pictures below. Not all drive plates look the
same and may look different than pictured.
Normal Heat High Heat
(Blue)
Doc ID: 191-7913A
Doc Rev: 082018
Excessive Heat
(Black)
